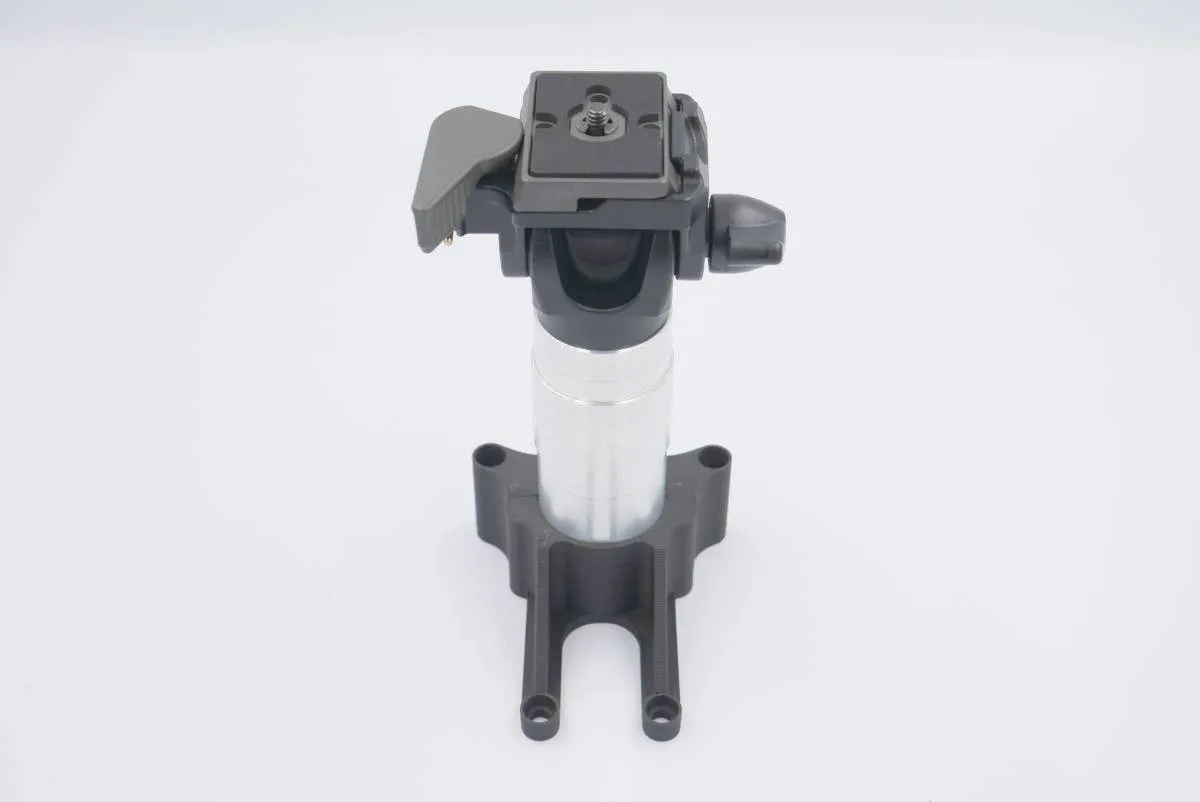

Universal camera mast
Introducing our universal camera mast, crafted with a sturdy aluminum tube, PLA mounting stand, and Manfrotto 234RC head. This versatile solution offers 180° vertical pan/tilt and horizontal rotation, ensuring secure mounting for most cameras. Easily attach it to your robot's chassis for high-quality footage. Cameras not included. Available on demand.
Referenced products​
Referenced products​
Universal camera mast
Discover our universal camera mast, featuring a durable aluminum tube, PLA stand,
and Manfrotto 234RC head. Enjoy 180° pan/tilt, horizontal rotation, and secure mounting for
most cameras. Cameras not included.
Main parameters​
| Parameter | Value |
|---|---|
| Dimensions (LxWxH) | 90mm x 93 mm x 178 mm |
| Weight | TBD |
| Materials | PLA, aluminum |
| Mounting screws | 4 x M5 x 10 ISO 7462 |
| Monopod head | Manfrotto 234RC |
| Camera thread | 1/4'' |
| Tilt angles | +/- 90° |
Dimensions​

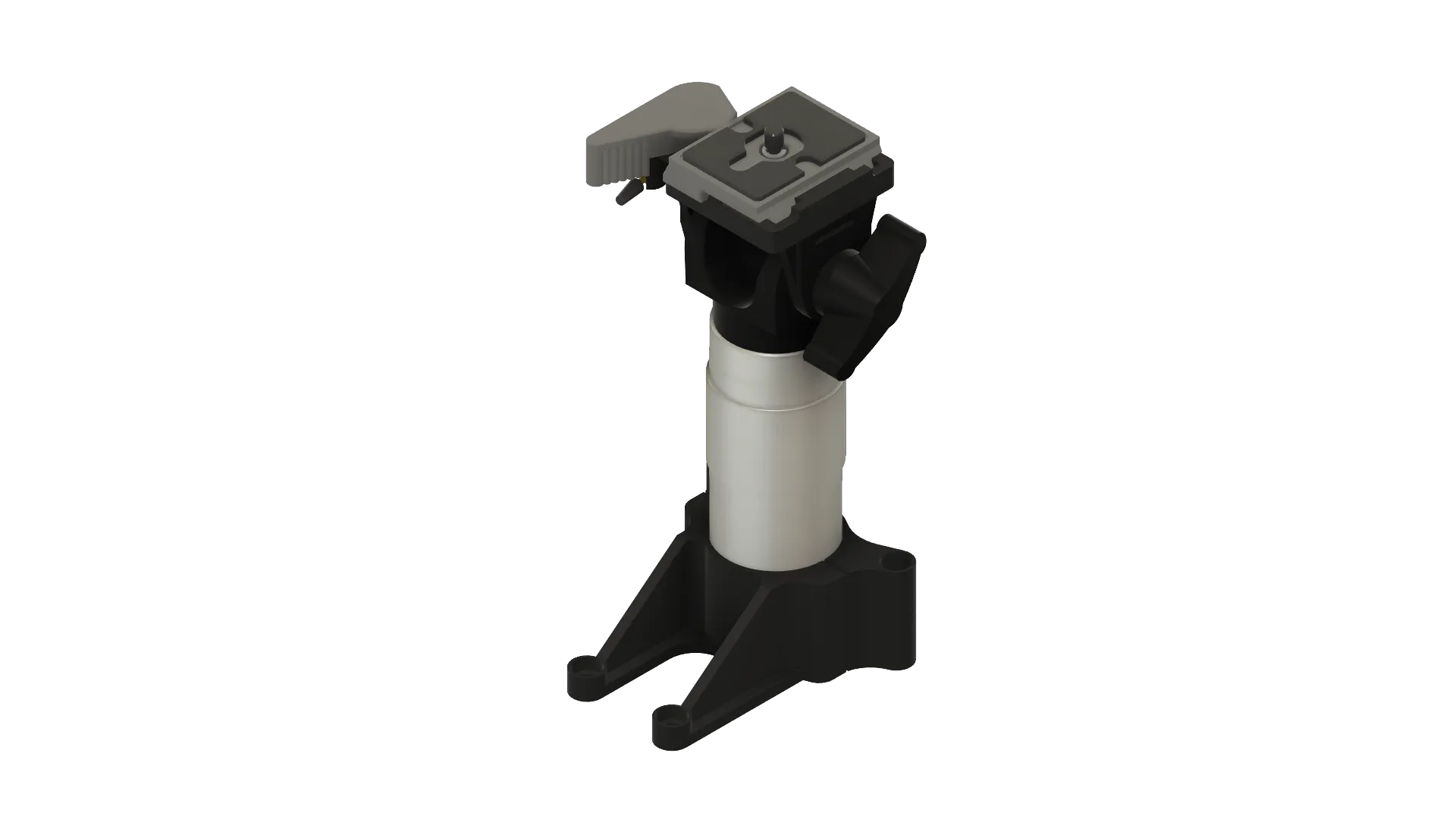

CAD model​
3D CAD model in neutral format is also available on our Google Drive:
🔗Universal camera mast - Google Drive
