Example: How to Follow an Aruco Marker

In this example, we will show you how to make the Leo Rover mobile robot follow an Aruco marker.

What to expect?

After completing this tutorial, your rover should be able to follow a printed Aruco Marker.

Prerequisites

📄Connect to Rover AP

A step-by-step guide on how to connect your host device to the Leo Rover's built-in Wi-Fi access point using the default network credentials.

📄Connect via SSH

A guide on how to establish a secure shell (SSH) connection to a Leo Rover to gain remote terminal access using the default credentials.

📄ROS Development

Detailed guide on ROS 2 development for Leo Rover, covering topics like adding additional functionalities, building ROS 2 packages and more.

List of components

1. Any computer which you can connect to the rover via ssh.
2. Stock Leo Rover.

Mechanical integration

The only physical thing you'll need to do is to print an Aruco marker:

• You can generate and download an Aruco marker from here (you'll need to select the 4x4 dictionary), or you can follow our instructions on generating markers from the tutorial linked below. It gives you more control regarding marker size and other parameters, which might be preferable for some users.

📄ArUco Marker Tracking with ROS

Learn how to use the ros_aruco_opencv ROS package to detect ArUco tags with your Leo Rover and visualize them in RViz.

• The printed marker must have a white border around it.
• System default configuration expects marker with id 0 and 15cm in size, but those parameters can be easily changed for your setup.

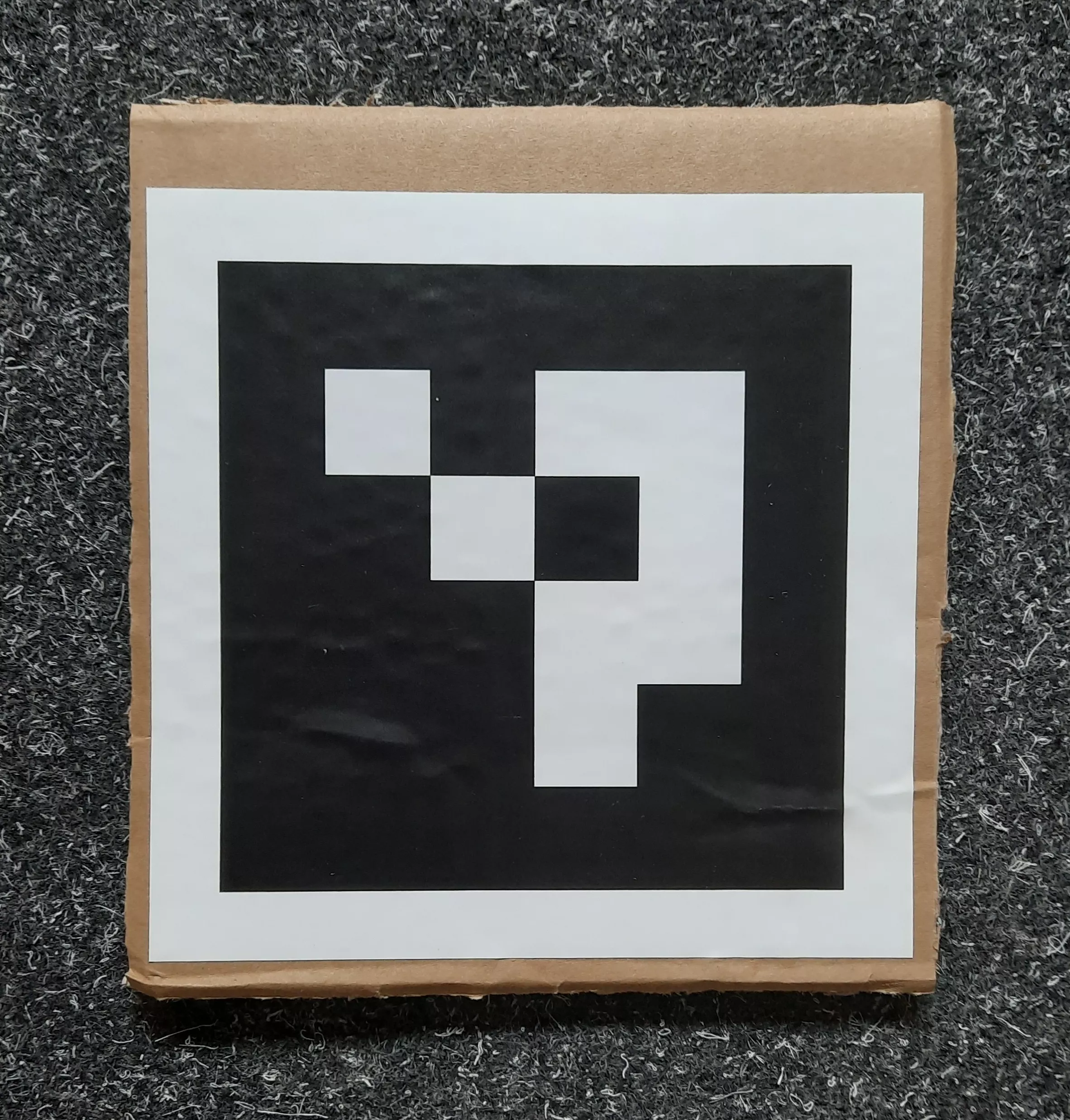

Here's an example of our aruco marker that we used for this task:

info

Remember that the white border around the marker is necessary. You can leave the printed marker on the piece of paper, but we do recommend to attach it to some harder material like cardboard - this way your marker won't bend, so it will be easier for the software to notice it.

Software integration

info

To complete those steps, you need to connect to the rover's network first, and then log in using ssh (both covered in prerequisites).

Installing using apt

You can install the package using apt by typing on the rover:

sudo apt install ros-${ROS_DISTRO}-leo-examples

Then you just need to source the ROS workspace:

source /opt/ros/${ROS_DISTRO}/setup.bash

Building from source

You can also get all needed software from our leo_examples github repository. You need to clone it on the rover in the ros workspace directory (if there's no such a directory, first go through the ROS development tutorial):

cd ~/ros_ws/src
git clone https://github.com/LeoRover/leo_examples-ros2.git

Now, you need to install all the dependencies for the downloaded packages:

cd ~/ros_ws
sudo apt update
rosdep update
rosdep install --from-paths src -ir

Then, you need to source the directory and build the packages:

cd ~/ros_ws
source install/setup.bash
colcon build

info

If your installation went without any errors, then you have successfully installed required software.

Examples

To run the example, you need to be connected to the rover via ssh. Once you do this, type in the terminal:

ros2 launch leo_example_follow_aruco_marker follow_aruco_marker.launch.xml

The rover will start following the marker once it detects it.

warning

By default the rover follows only the marker with id 0, and has marker tracker configured for a marker of size 15cm. If your printed marker doesn't comply with the requirements, you need to follow the configuration instructions.

Configuration

All nodes launched in the example have configurable parameters, therefore it's easy to adjust the system for your conditions. To be able to change anything you need to have ROS installed on your computer and be connected to the rover's network.

If you don't have ROS installed, you can follow this guide:

📄Install ROS on your computer

Learn how to install the Robot Operating System (ROS) on your host computer using Linux, Windows Subsystem for Linux (WSL), or native Windows installation.

Being connected and having ROS installed, next you have to source the ROS workspace:

source /opt/ros/${ROS_DISTRO}/setup.bash

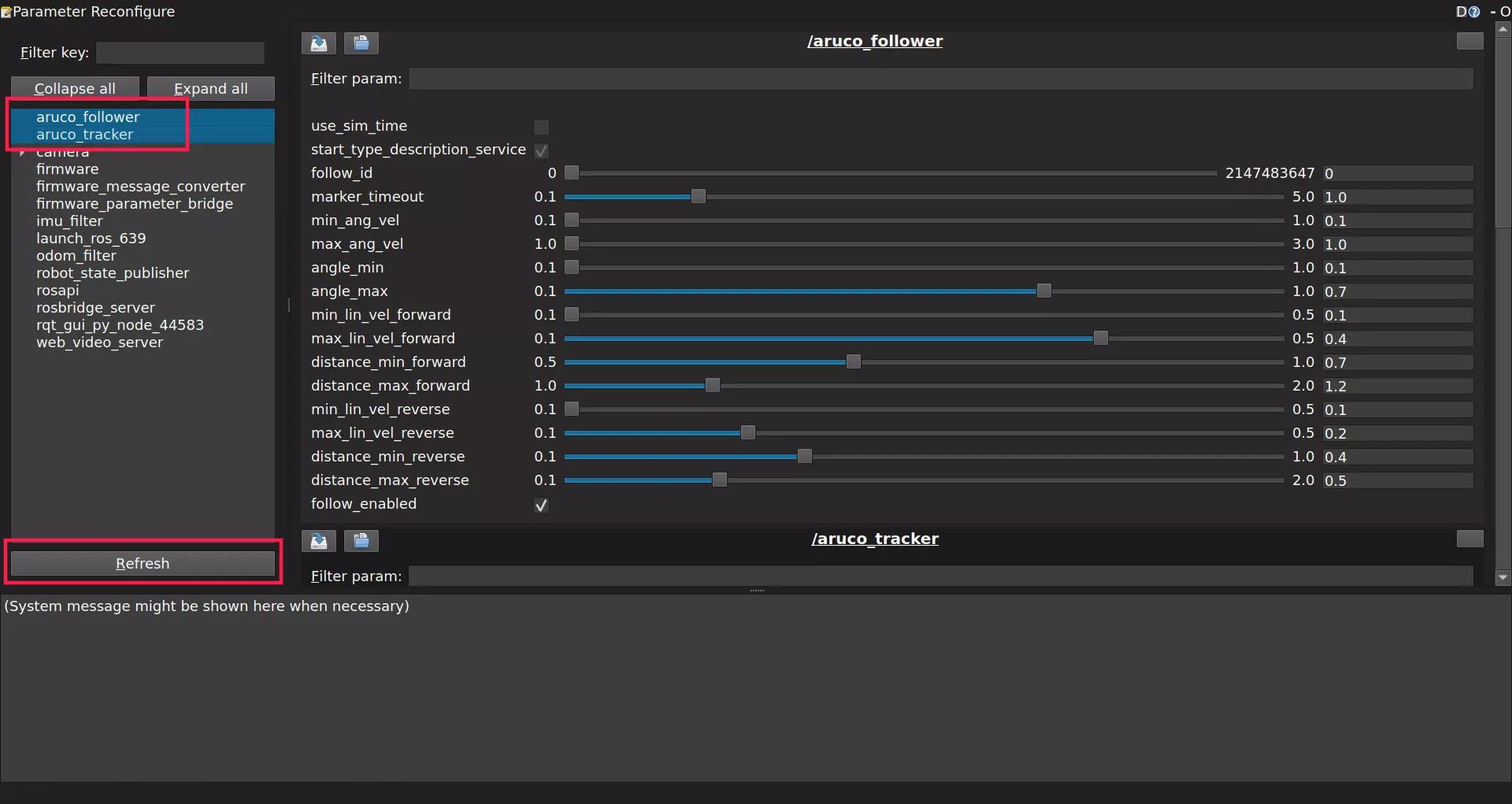

Now just start the Dynamic Reconfigure plugin in rqt:

rqt -s rqt_reconfigure

In the displayed window on the left side choose the node which parameters you want to change.

tip

If you don't see your target node, try using the Refresh option.

The aruco_follower and aruco_tracker nodes are the core components that make this example work. As their names suggest, one handles marker detection, while the other uses that information to command the robot's movement.

Tracker

The most important parameter in the aruco_tracker node is marker_size. If your printed marker is not exactly 15 cm, adjust this value accordingly.
Other parameters generally don't require any modification, but you're free to experiment if you'd like. Keep in mind that once you restart the rover's programs, the system will automatically reload the default configuration.

warning

Only parameters within the aruco namespace (those named like aruco.xyz) are safe to modify. Changing anything else may prevent the rover from following the marker correctly.
For details on each of those parameters, check the OpenCV ArUco documentation.

Follower

Each parameter of the aruco_follower node includes a built-in description - just hover your mouse over a parameter to see it. The most important one is follow_id, which specifies the ID of the marker the rover should follow. You can also use the follow_enabled checkbox to quickly enable or disable the rover's movement.

The remaining parameters control the rover's driving and rotation speeds, as well as the distance thresholds that determine when it should move or stop.

What next?

After completing this tutorial, you can try other examples from the leo_examples repository (line follower and object detection), or try other integration from our site.
