Task 3: Frame and suspension
Assembly time ≈ 30 minutes

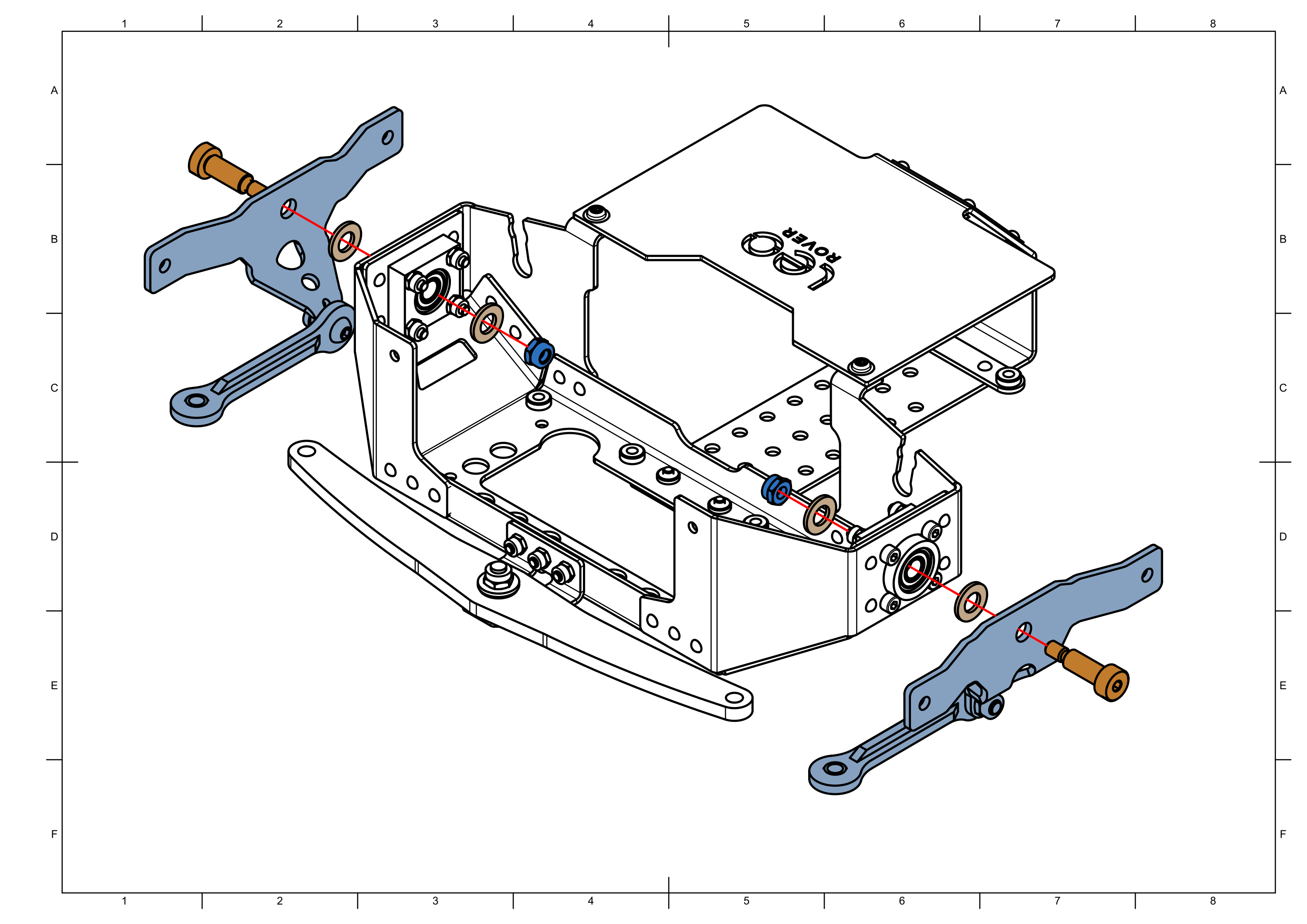

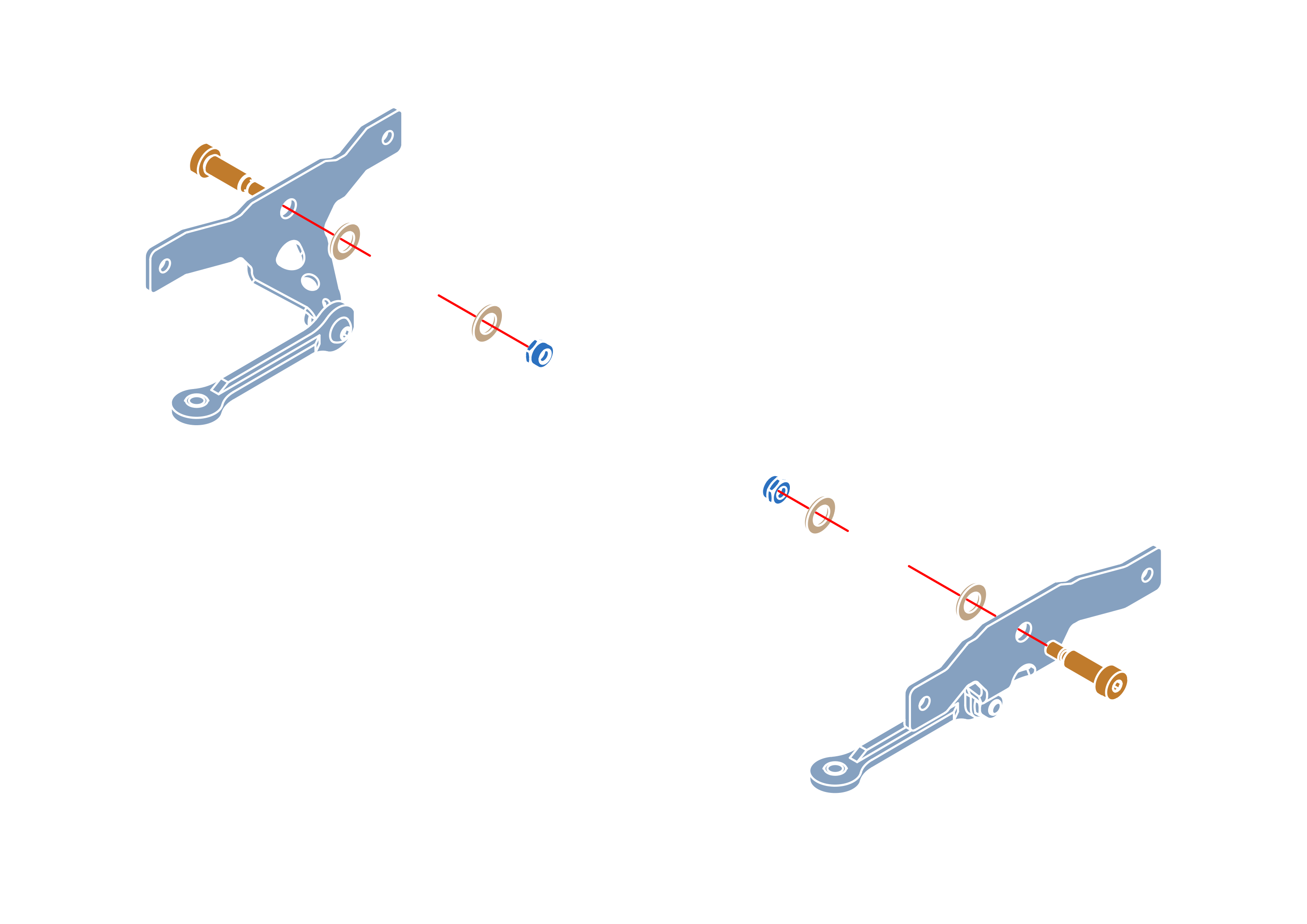

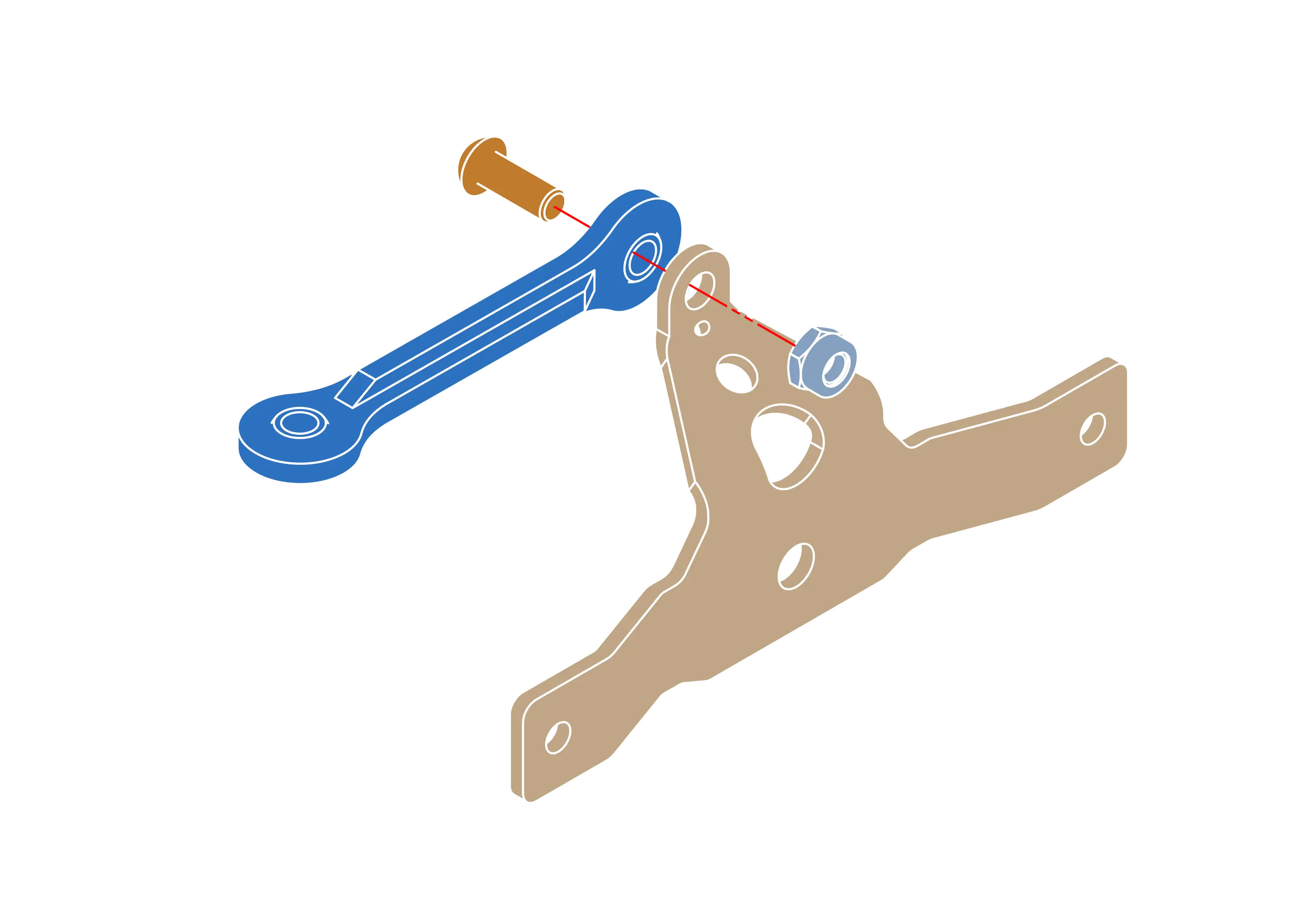

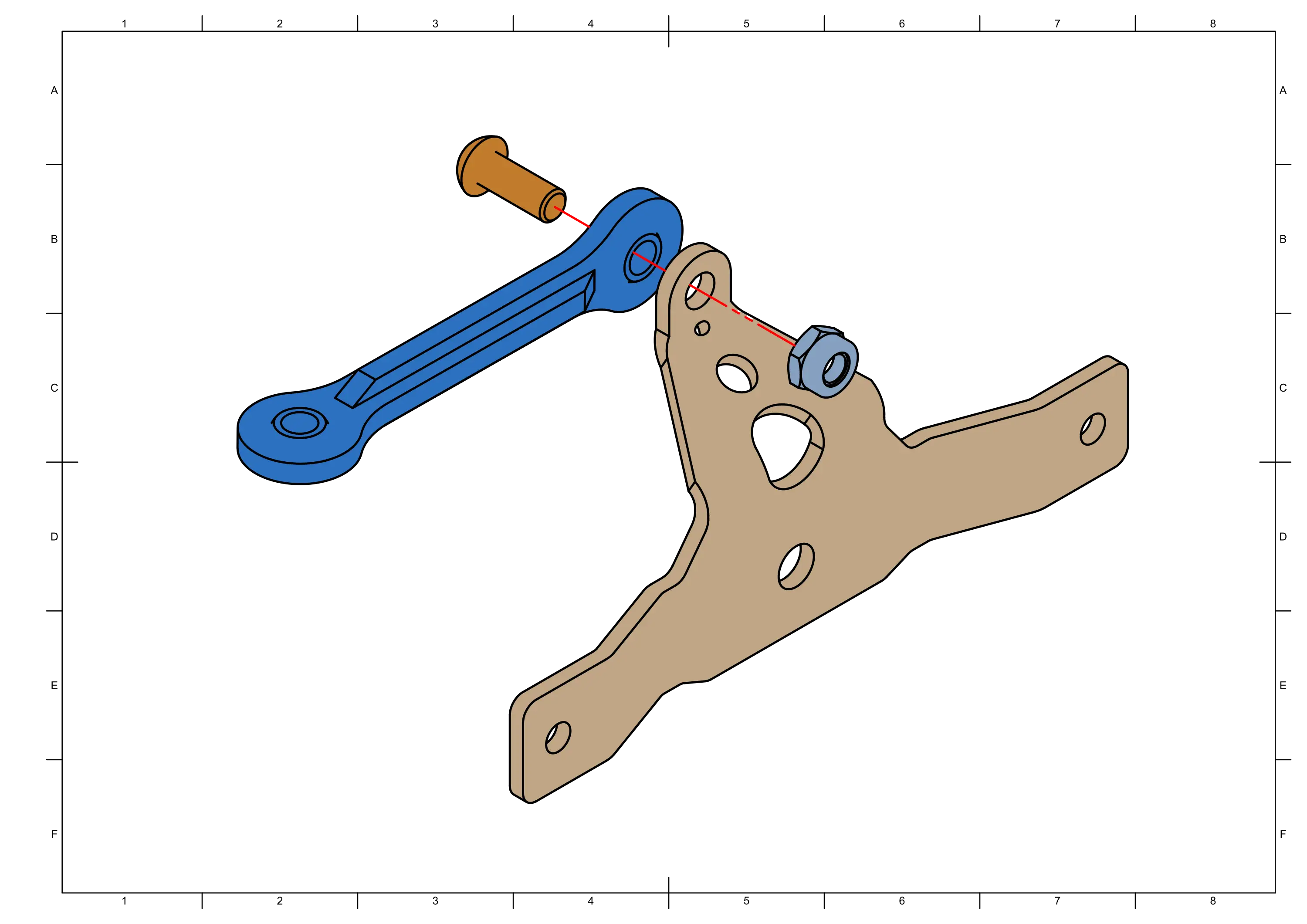

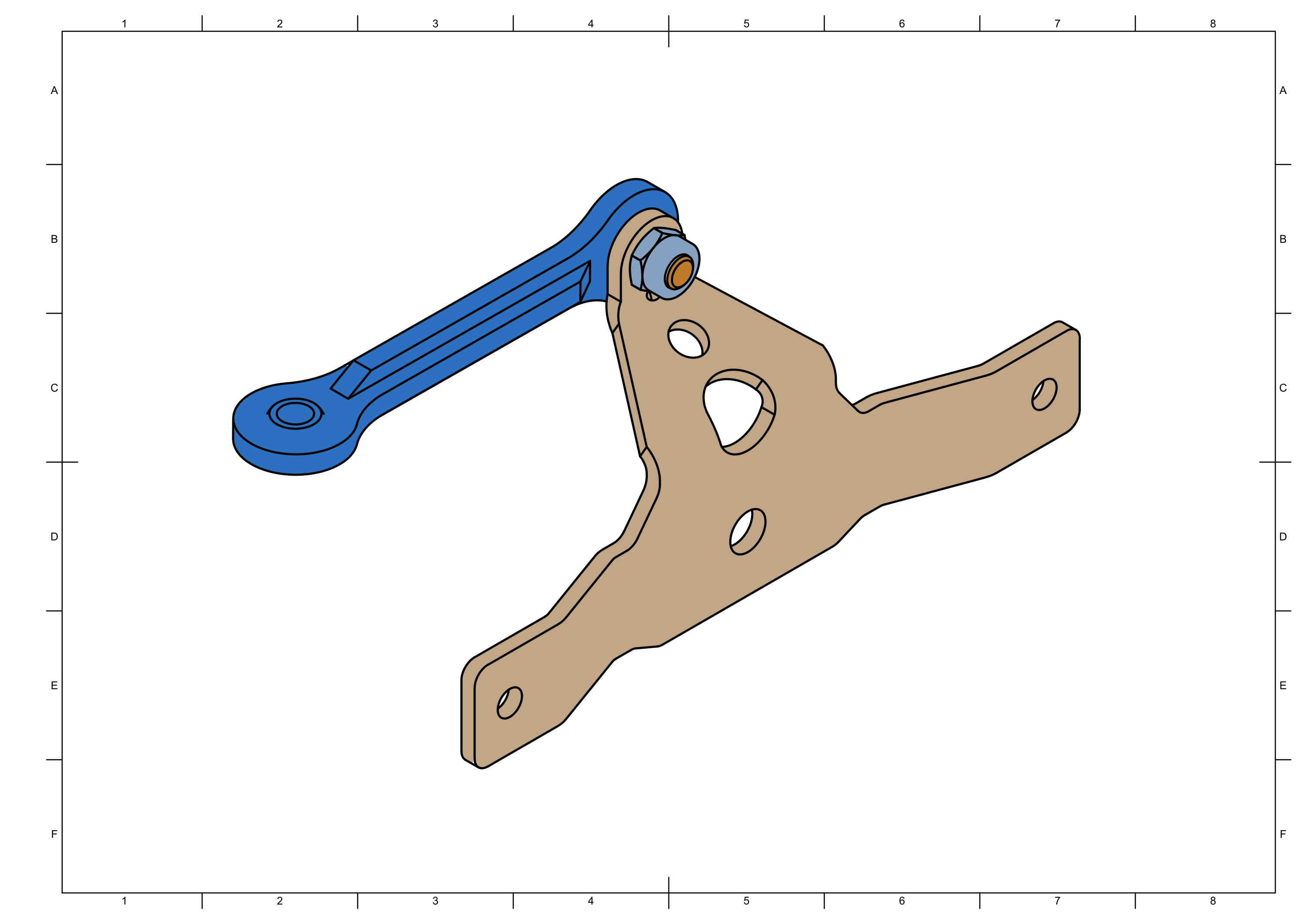

Step 1​
note

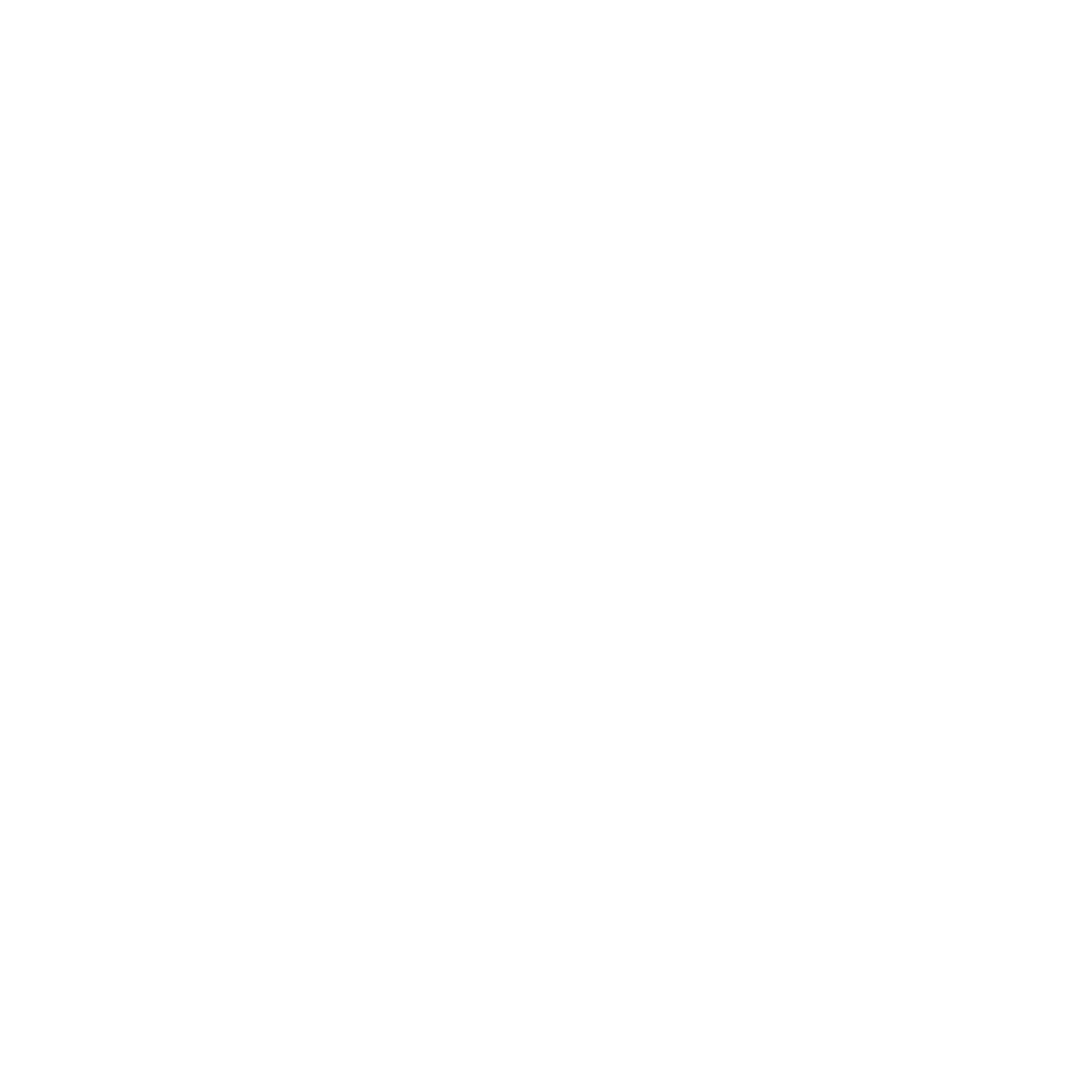

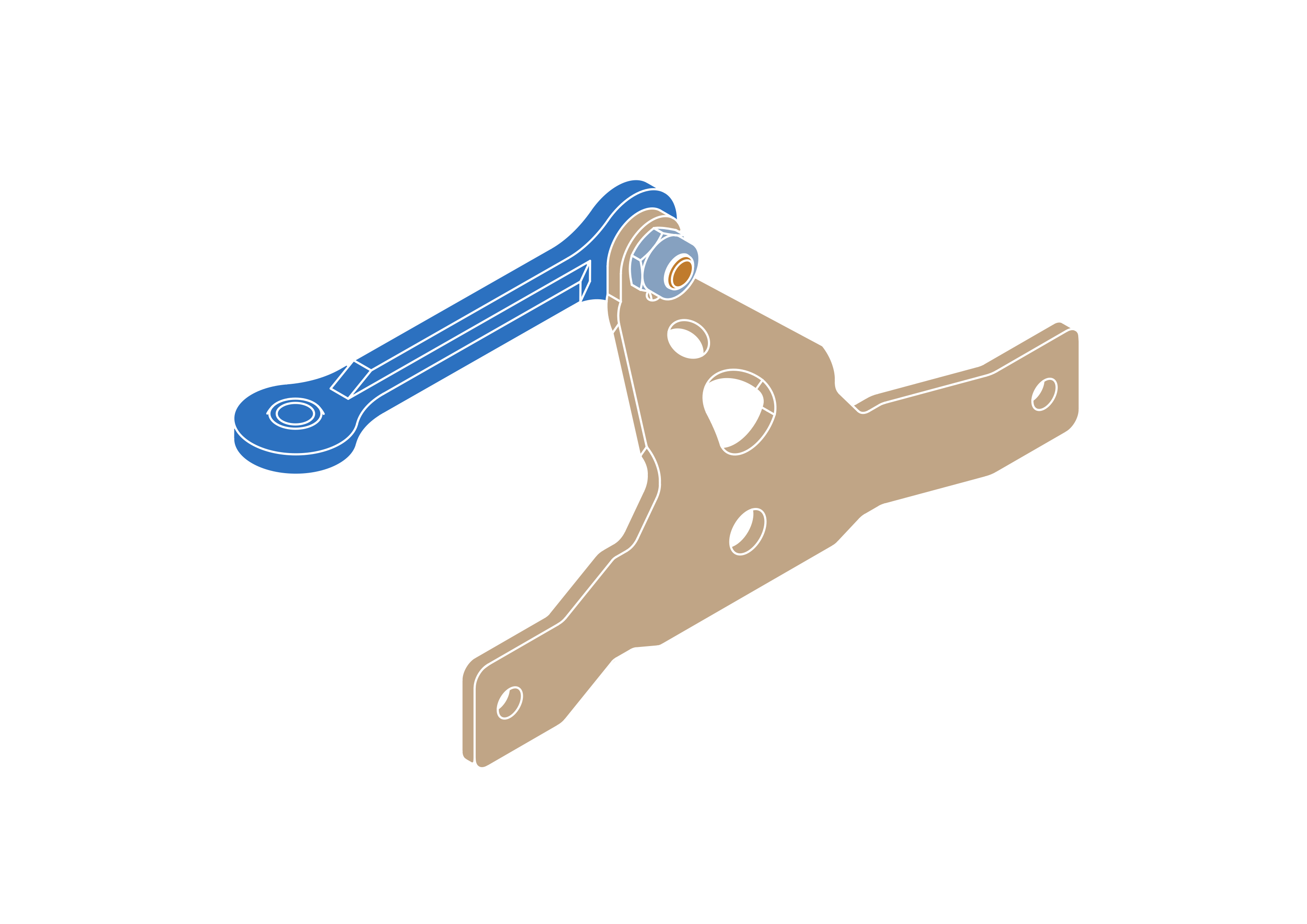

Make sure that the screw is tight, but pushrod can move without excess play and resistance.
info

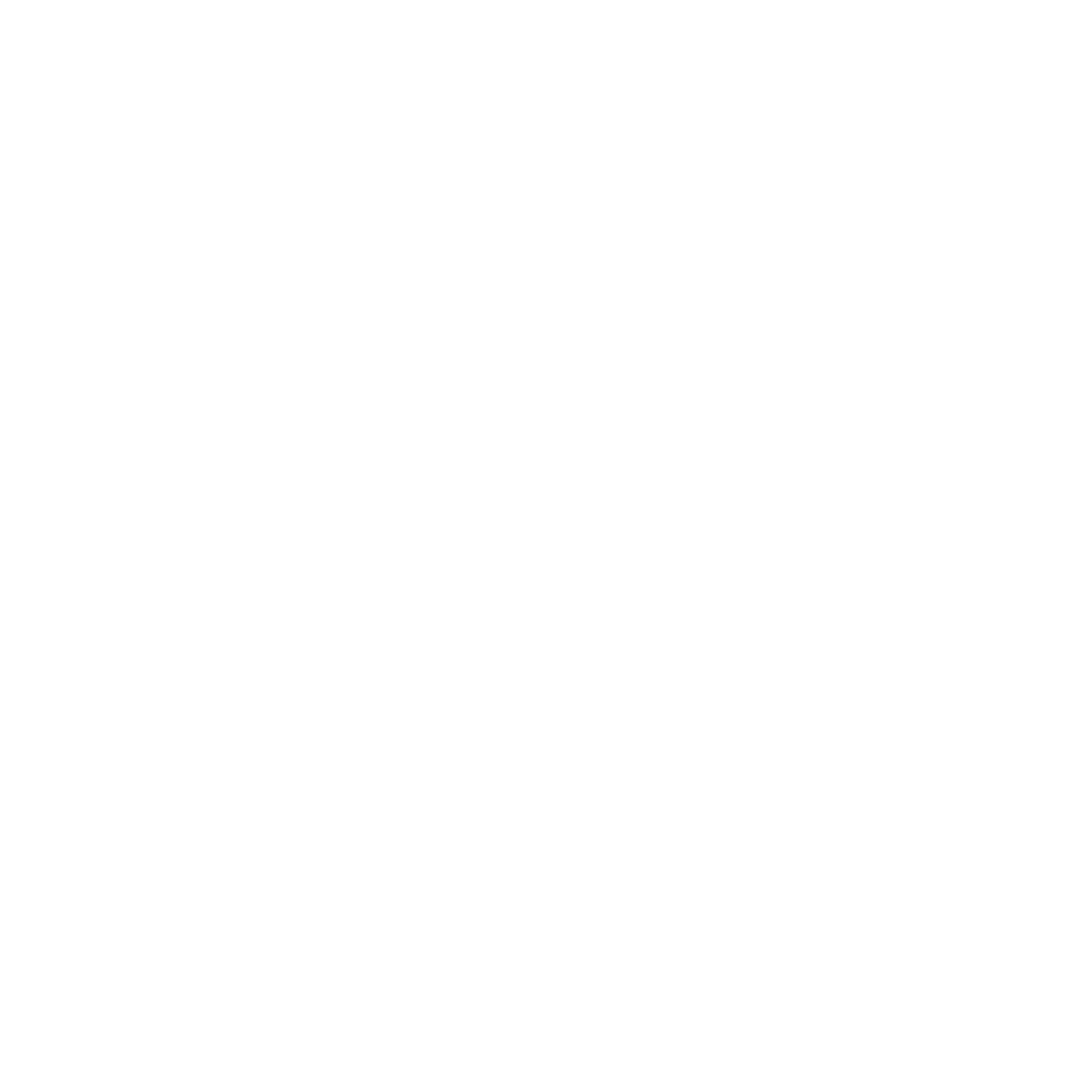

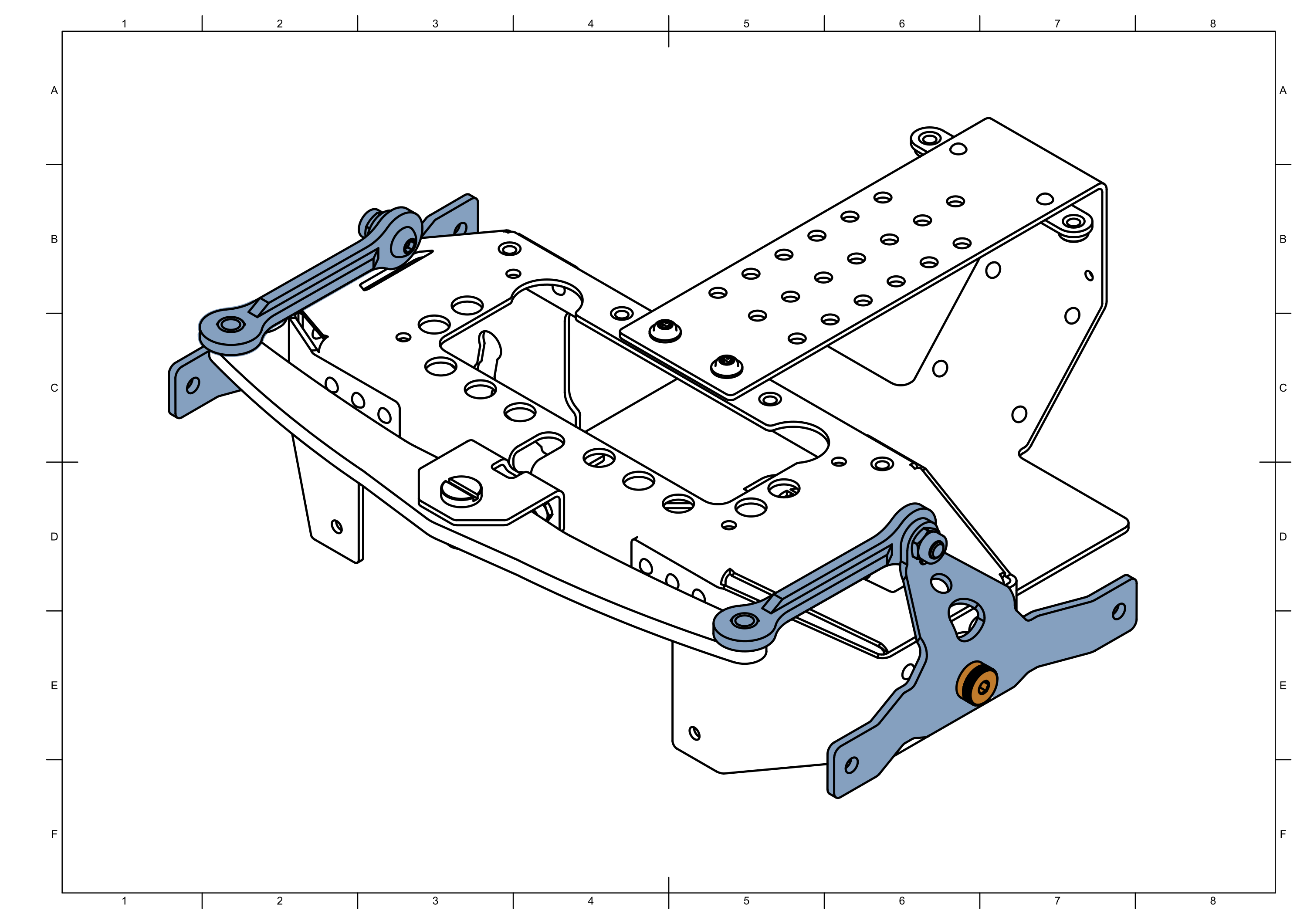

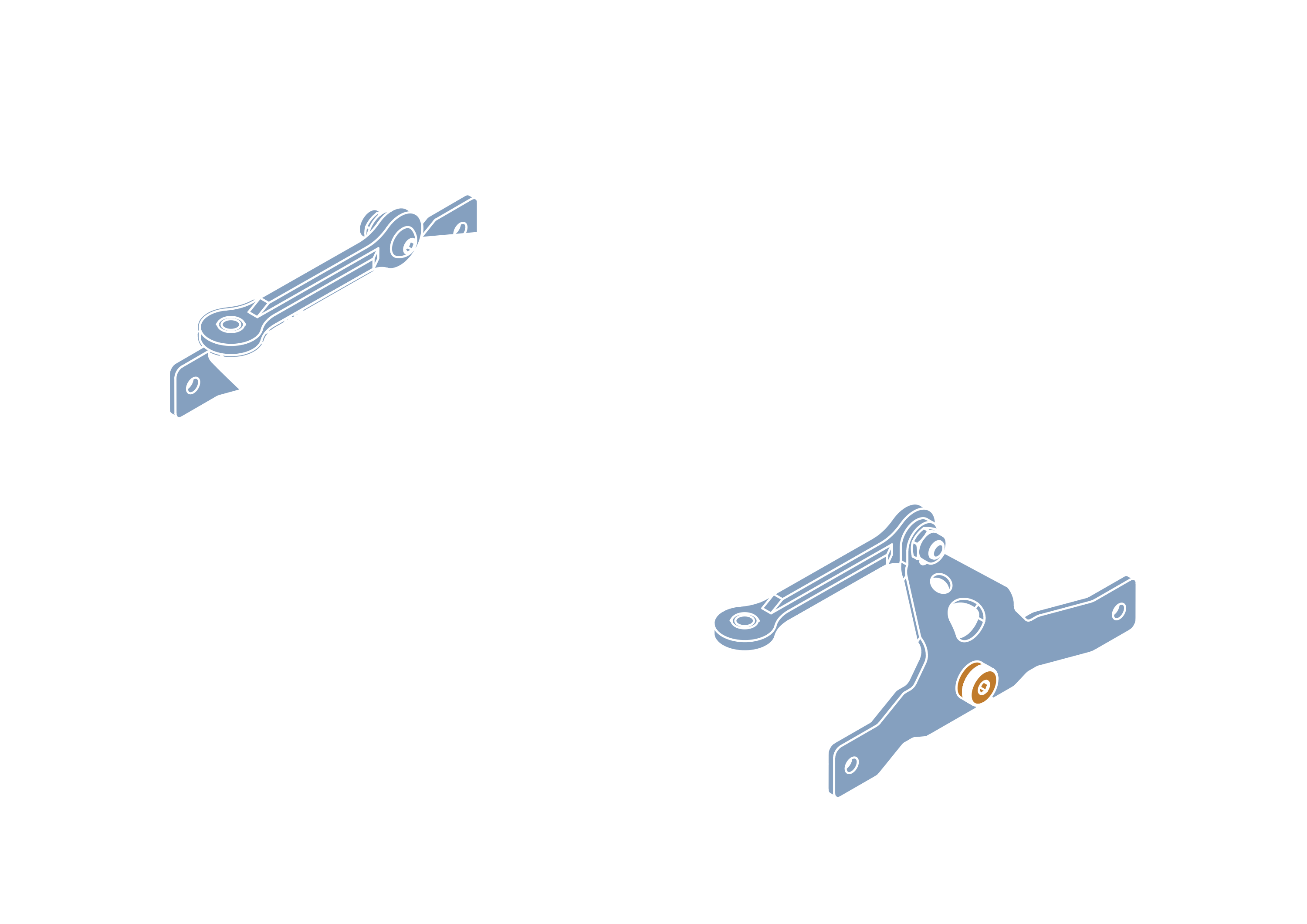

Repeat until you have 2 suspension mounts.
Step 2​
info

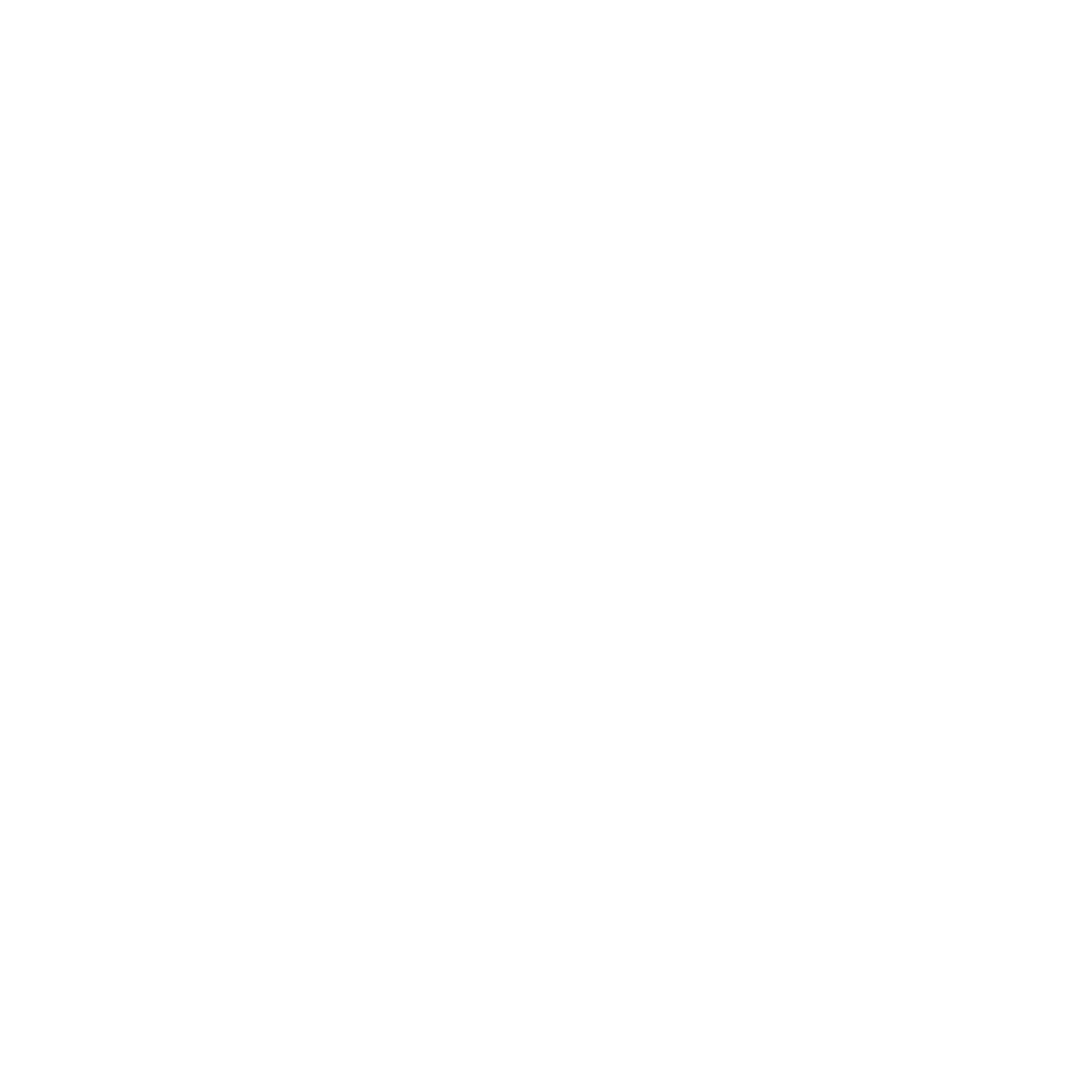

Repeat the steps until you have 2 suspension mounts.
Step 3​
Step 4​
Step 5​

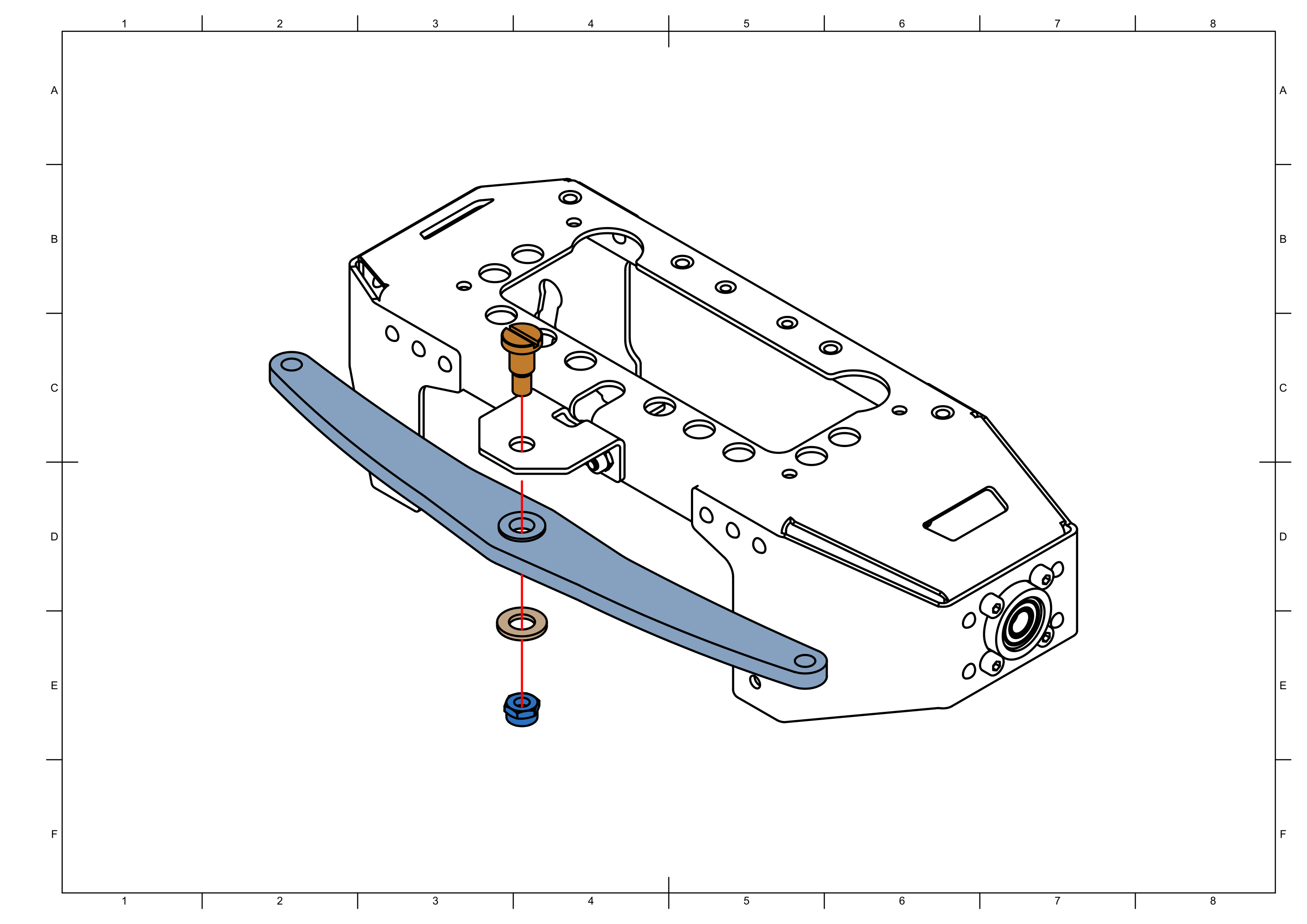

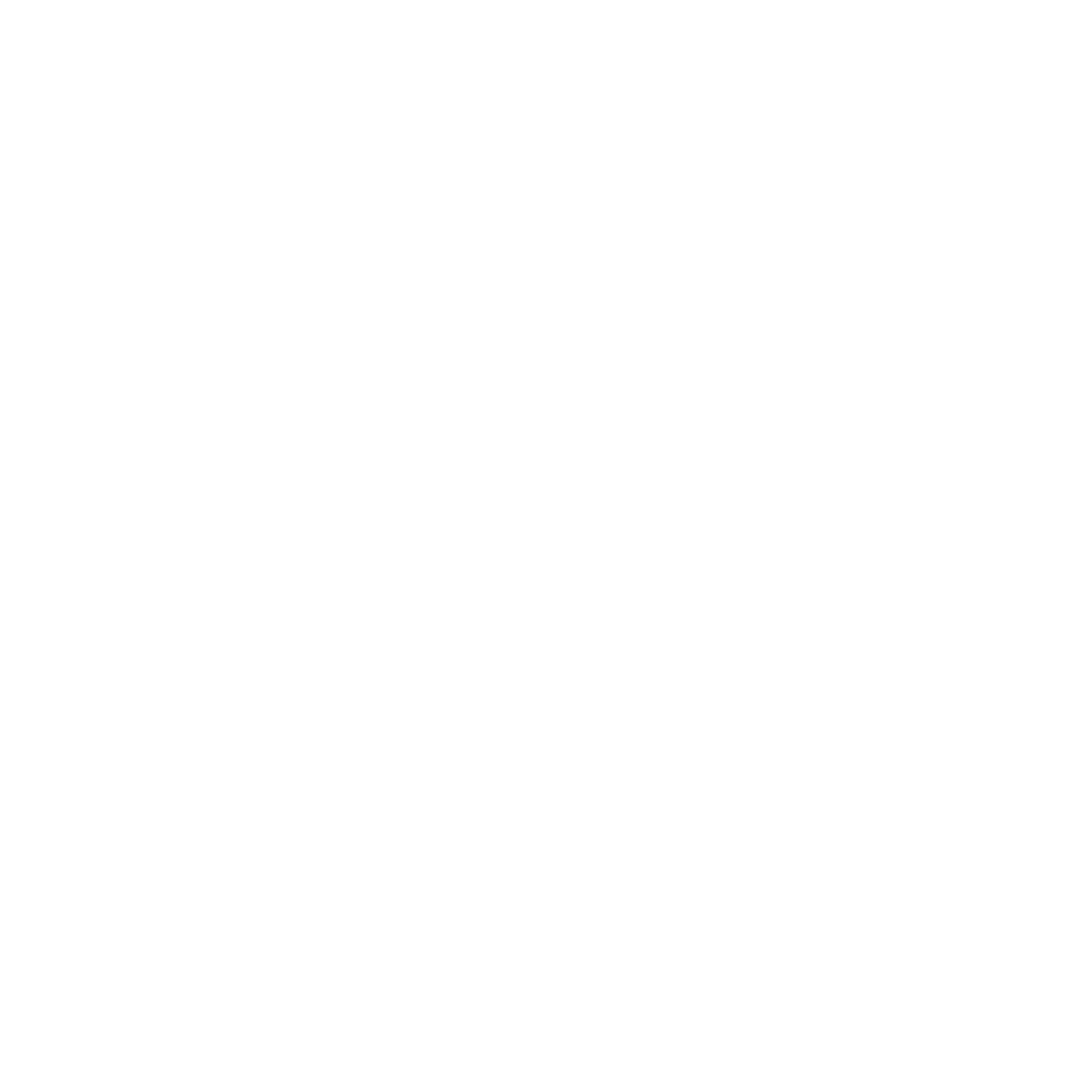

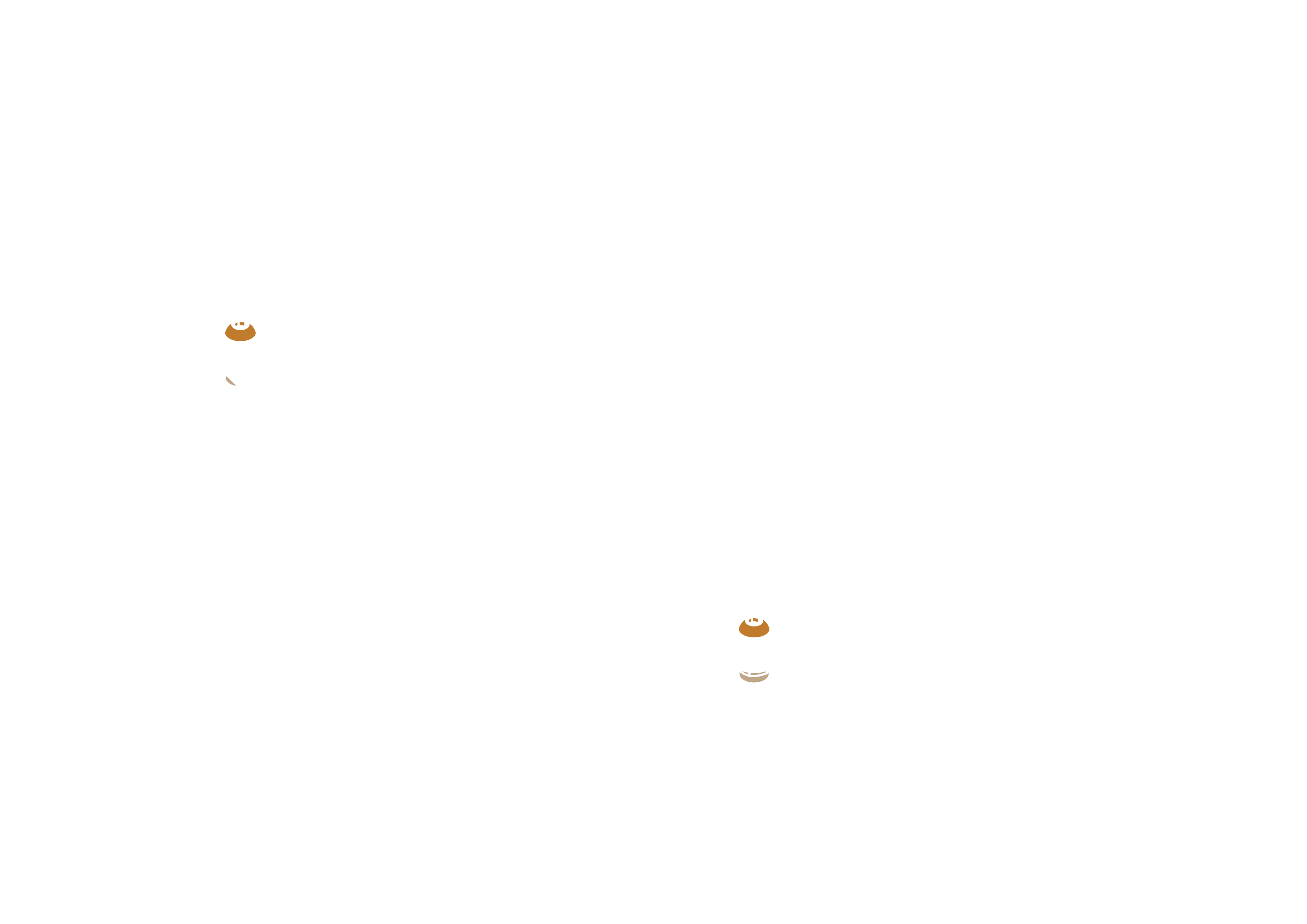

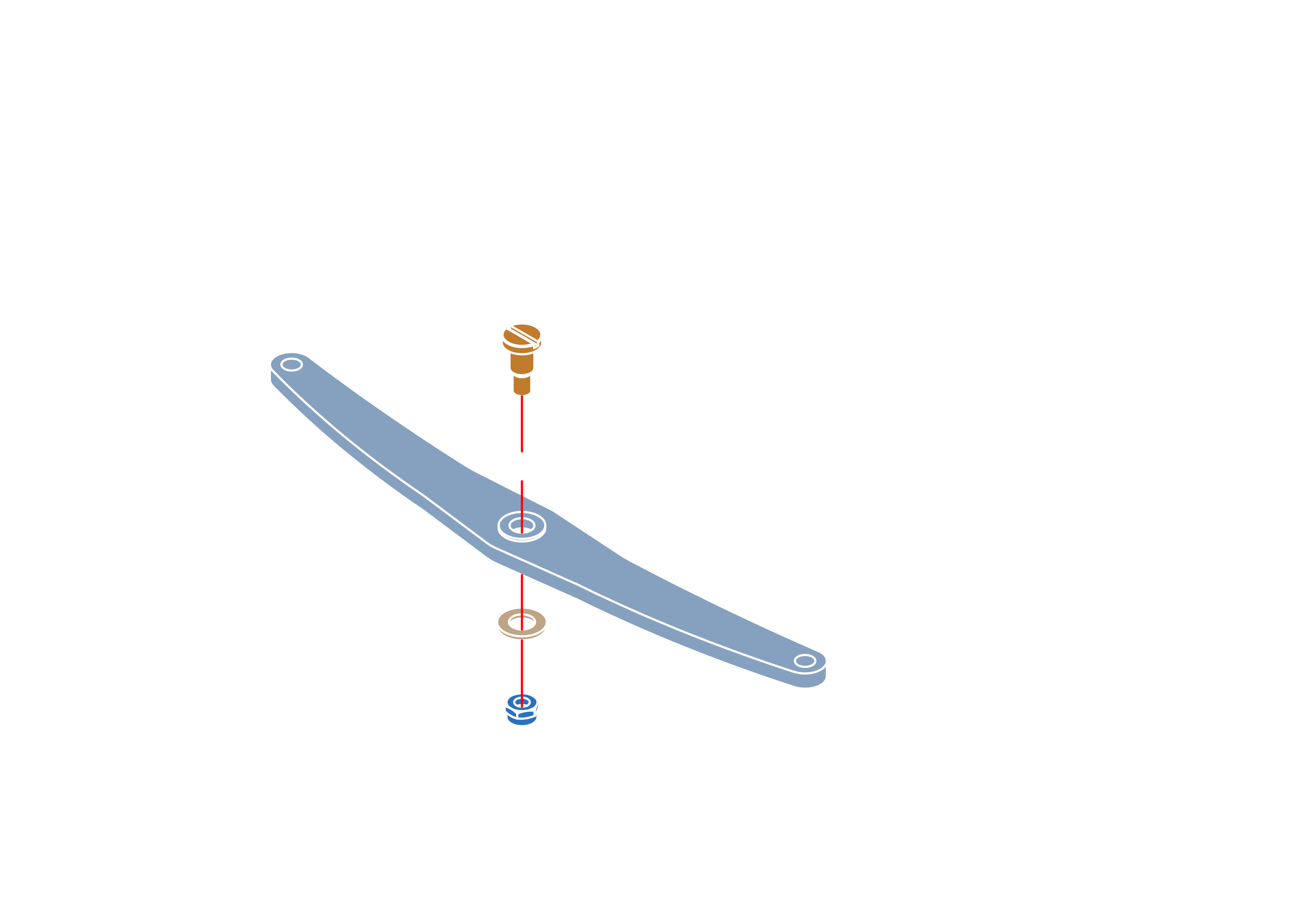

note

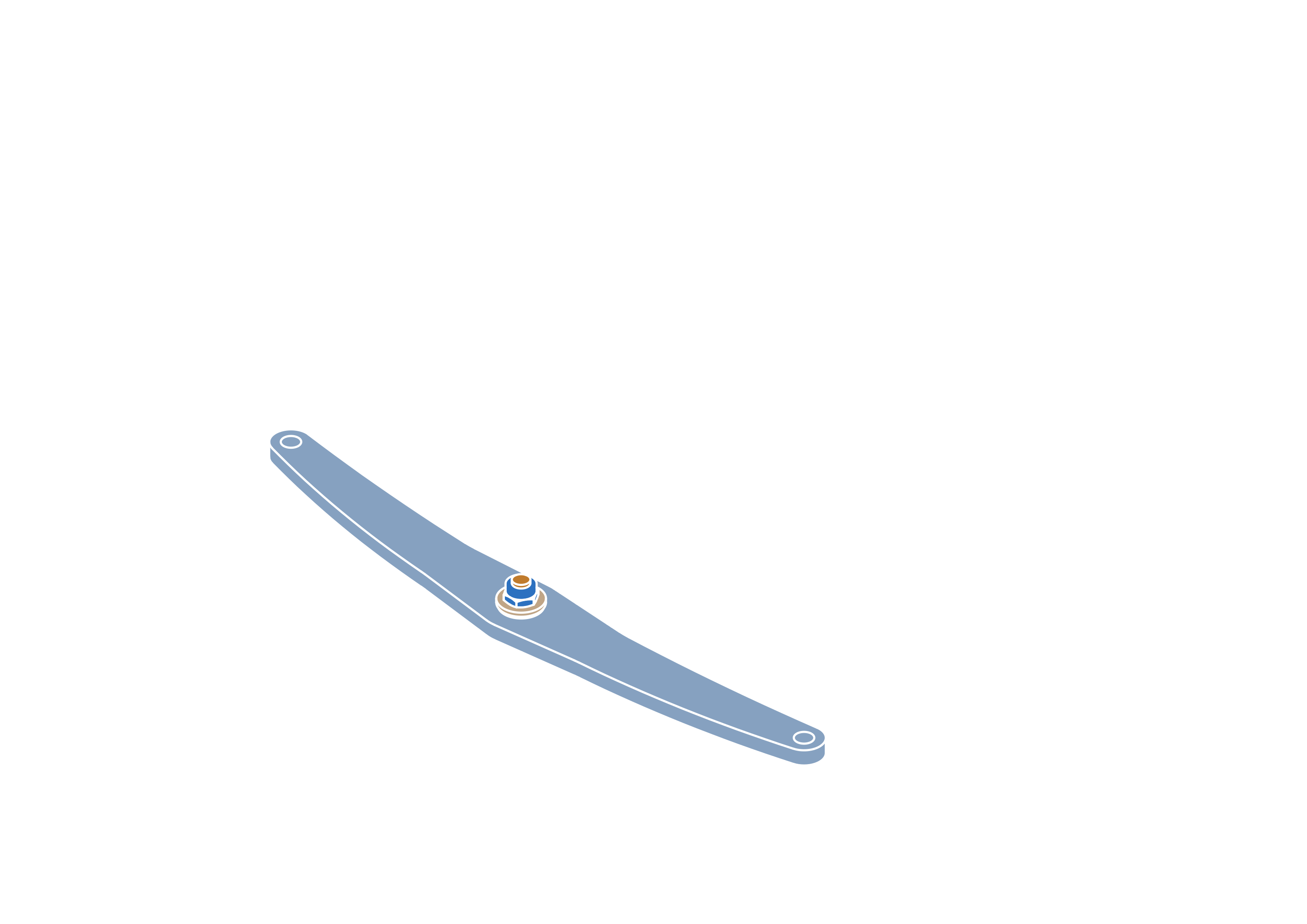

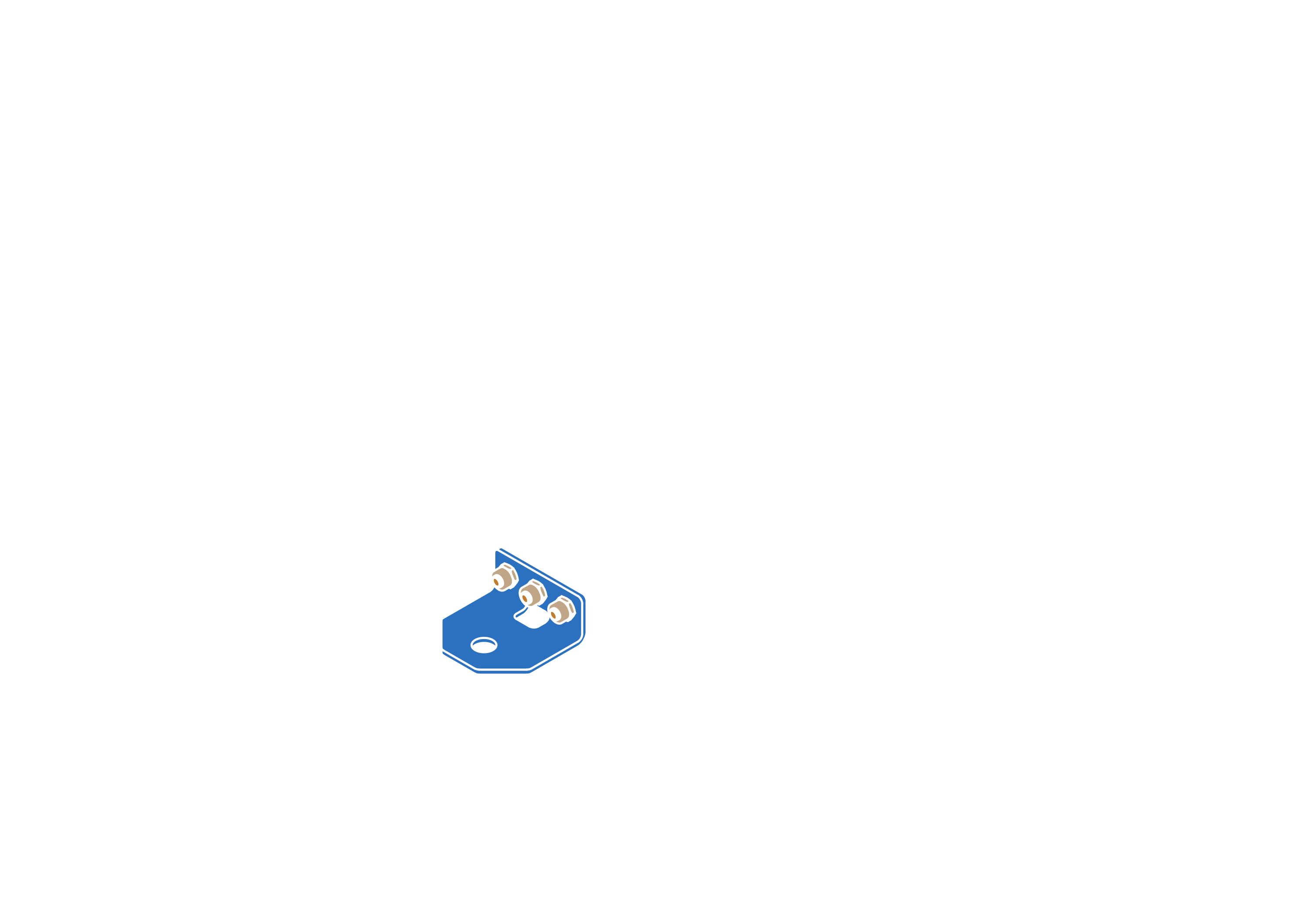

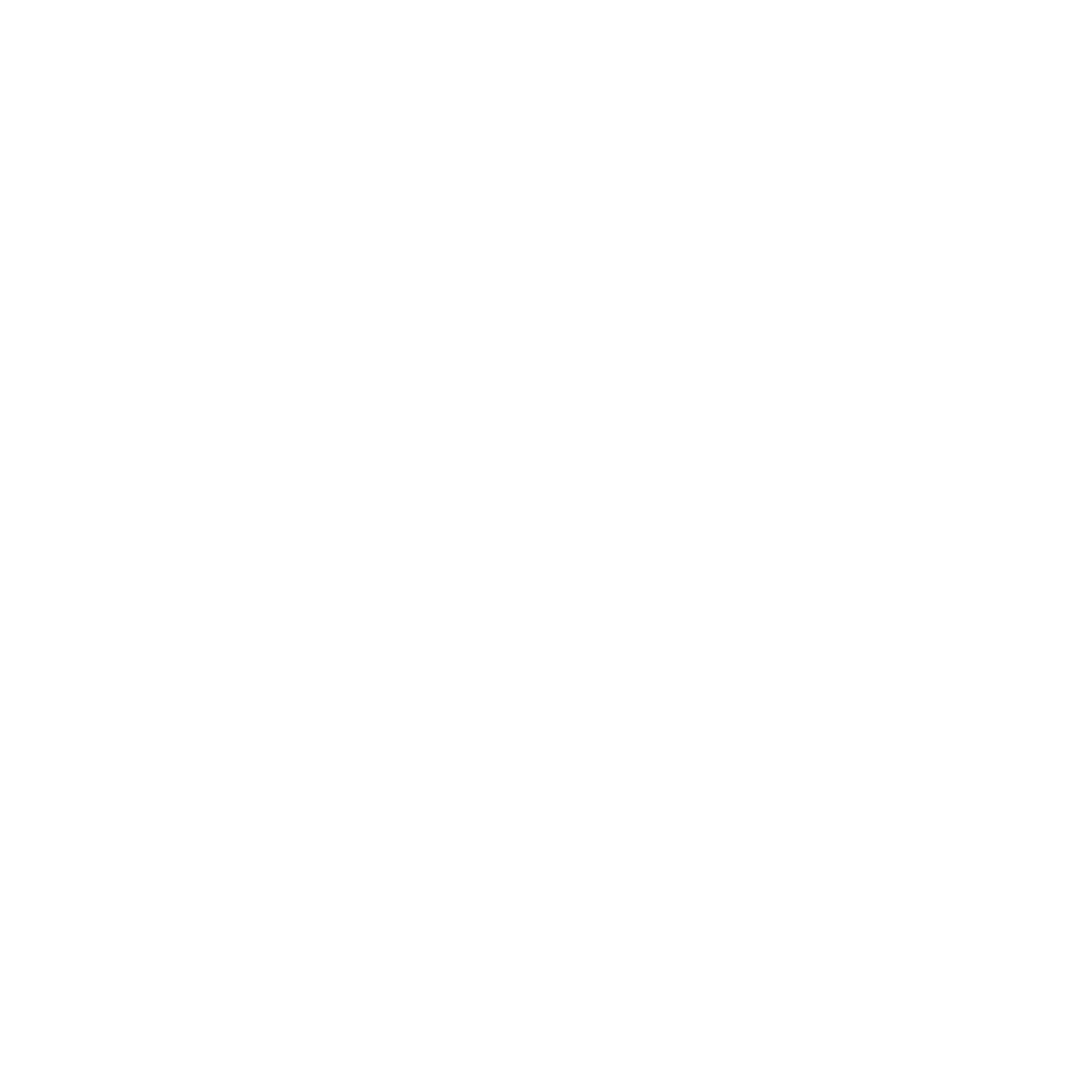

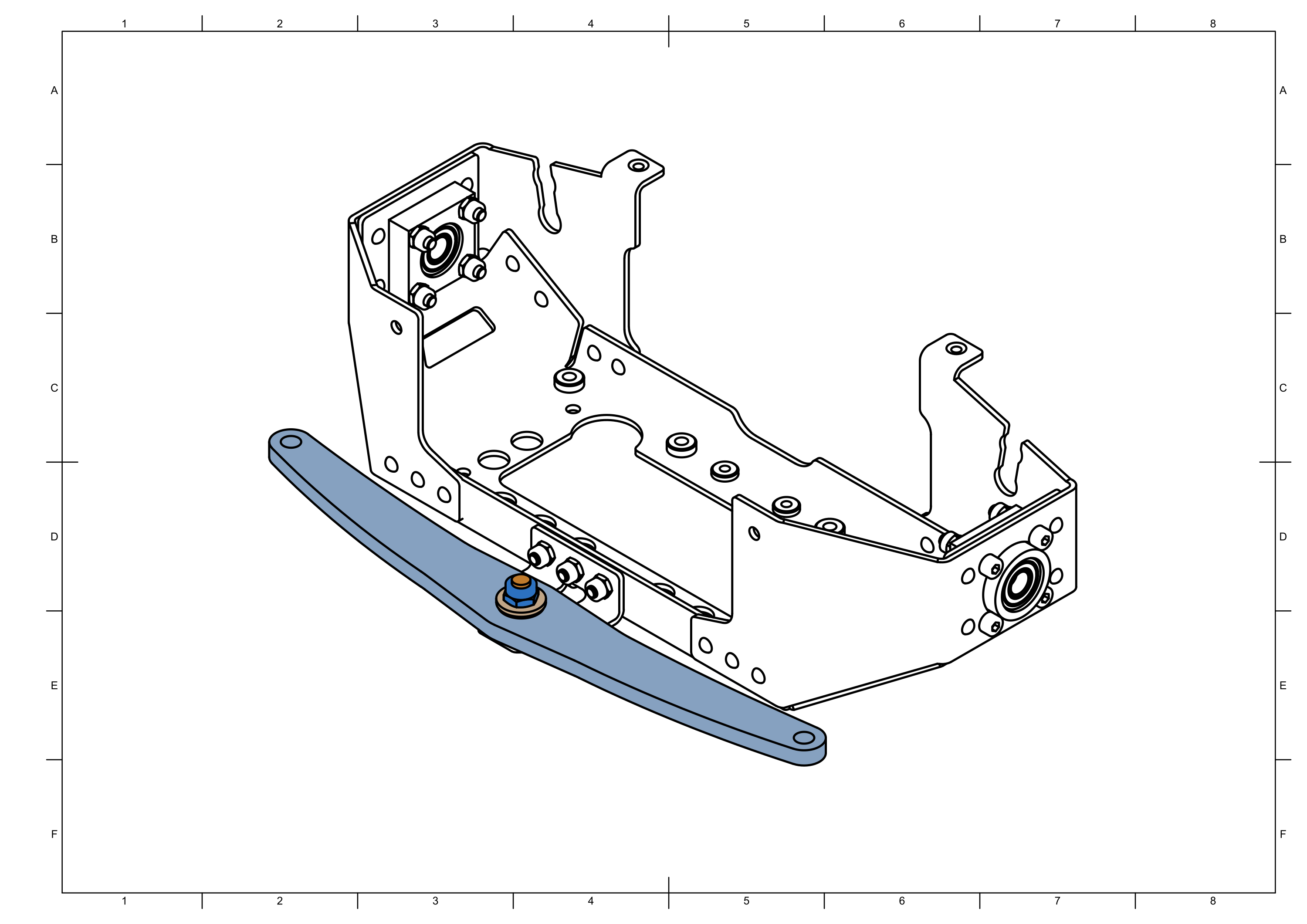

Make sure that the screw is tight, but differential bar can move without excess play and resistance.

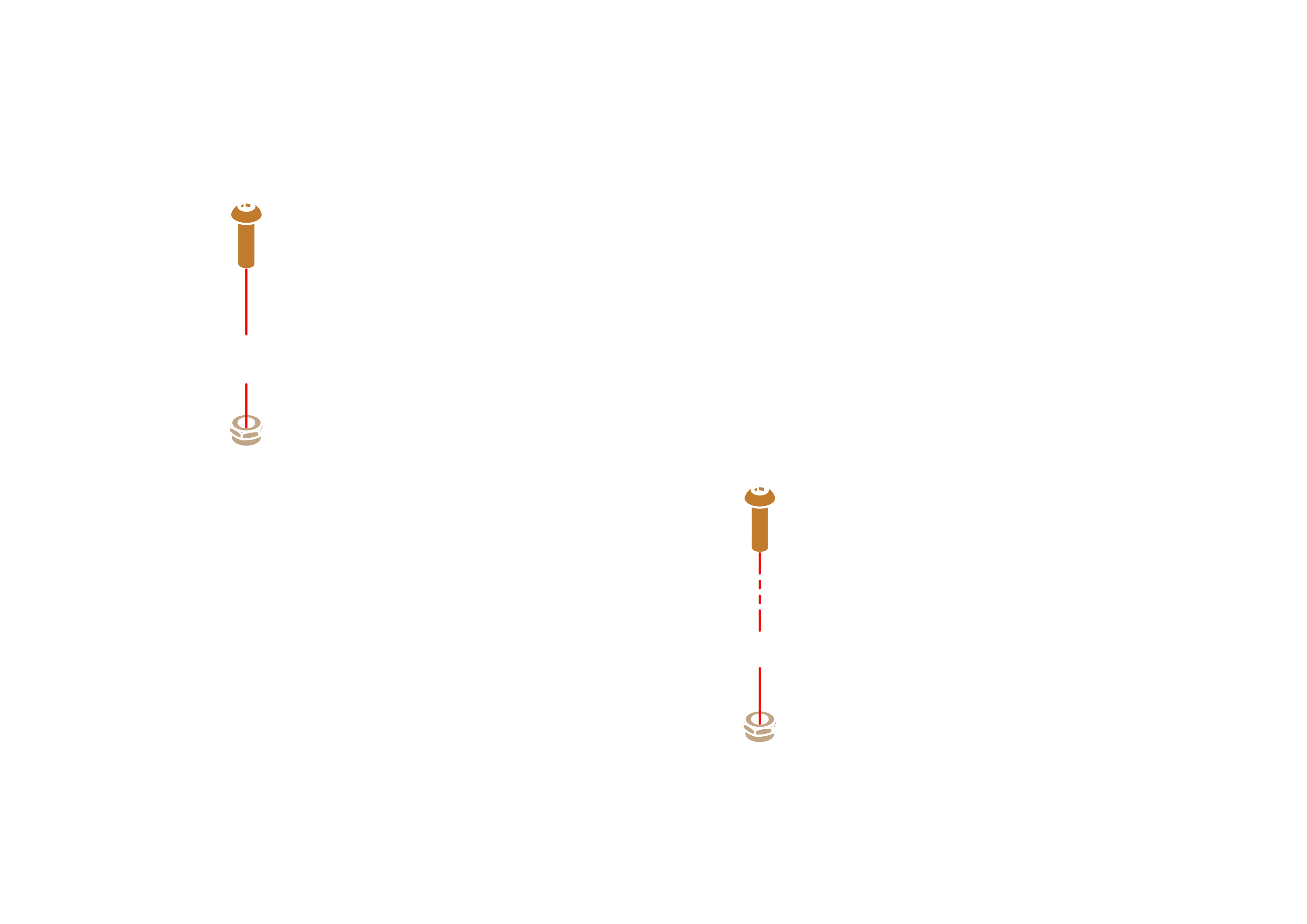

Step 6​
Step 7​

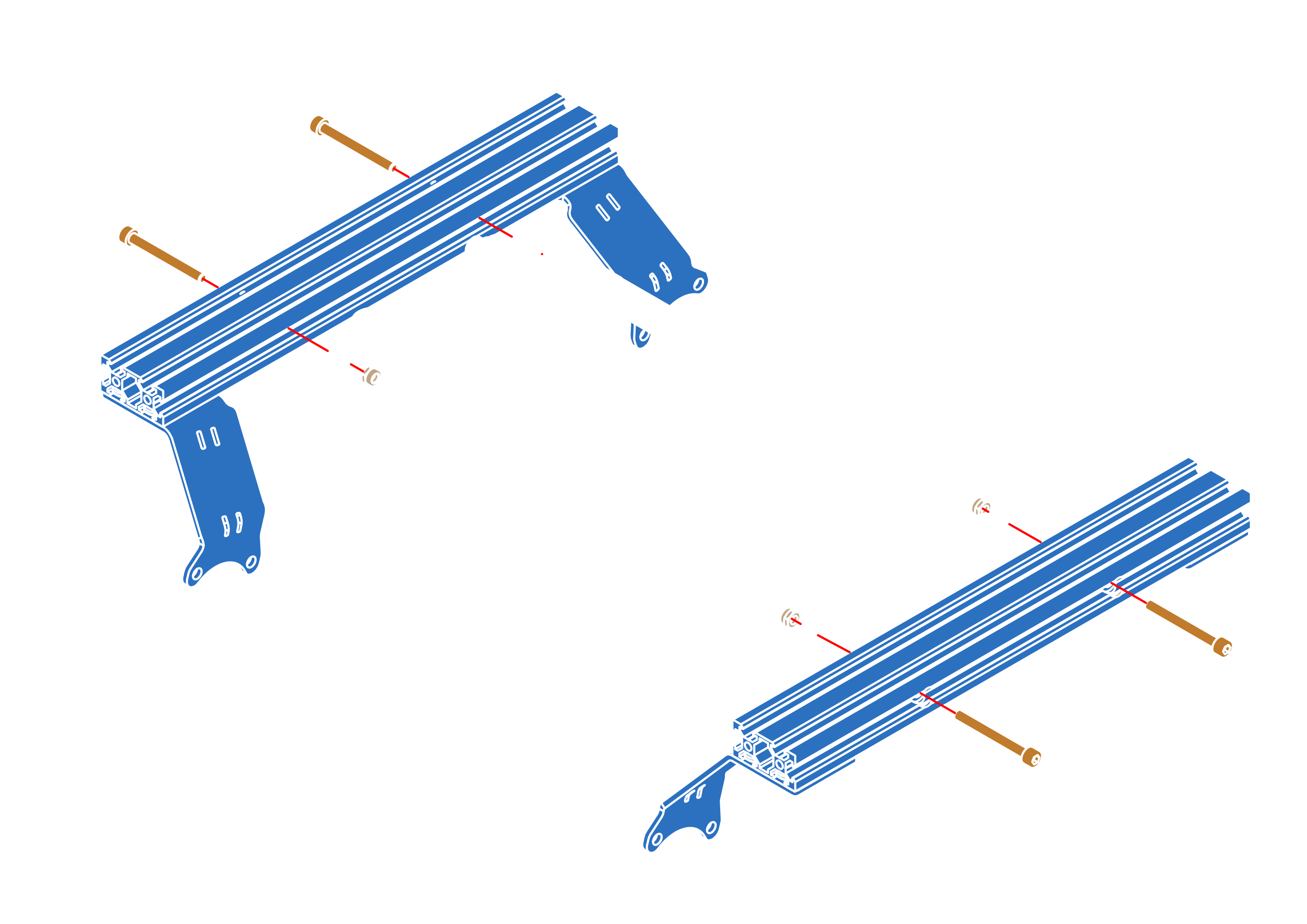

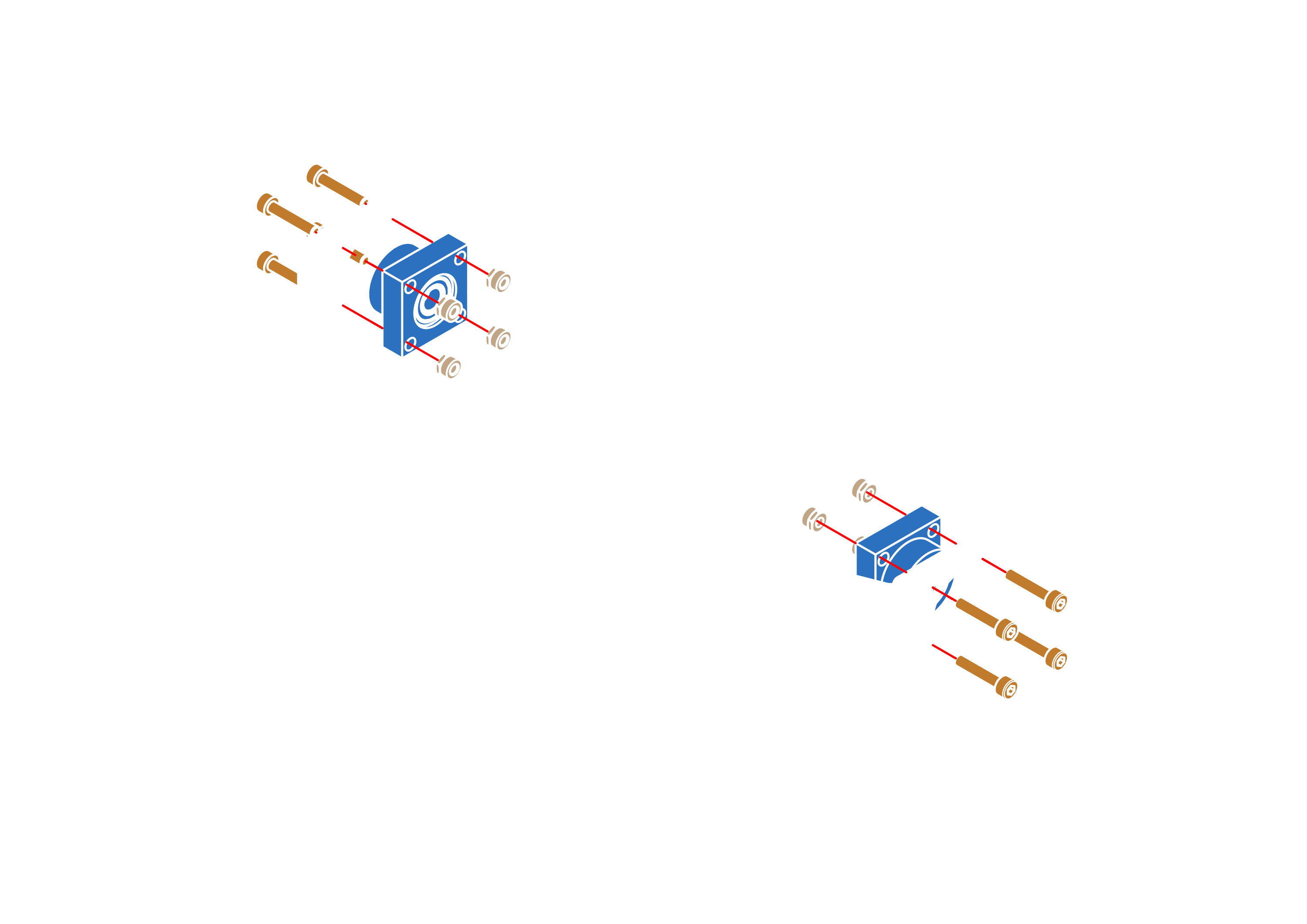

note

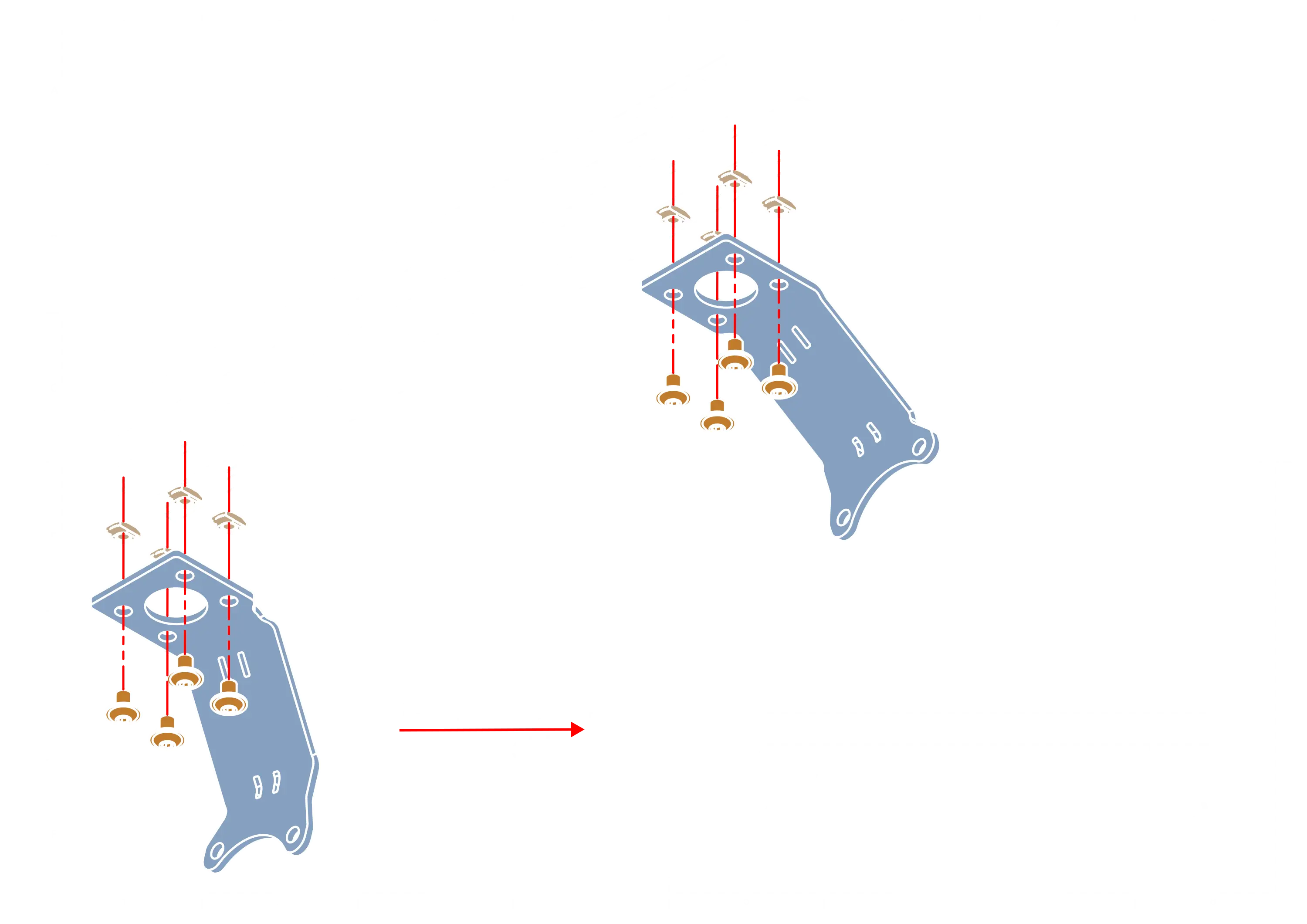

Do not overtighten the screws.

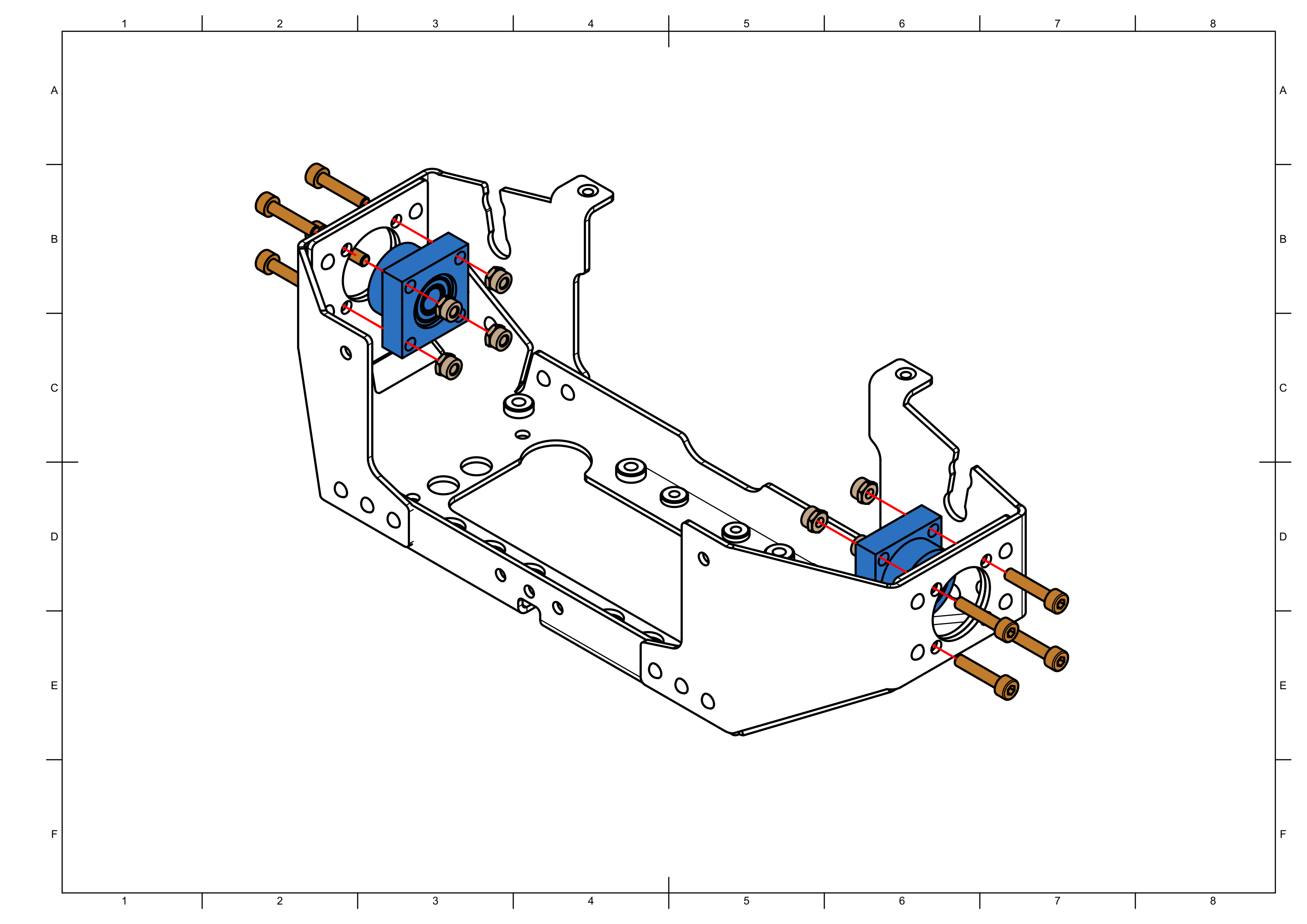

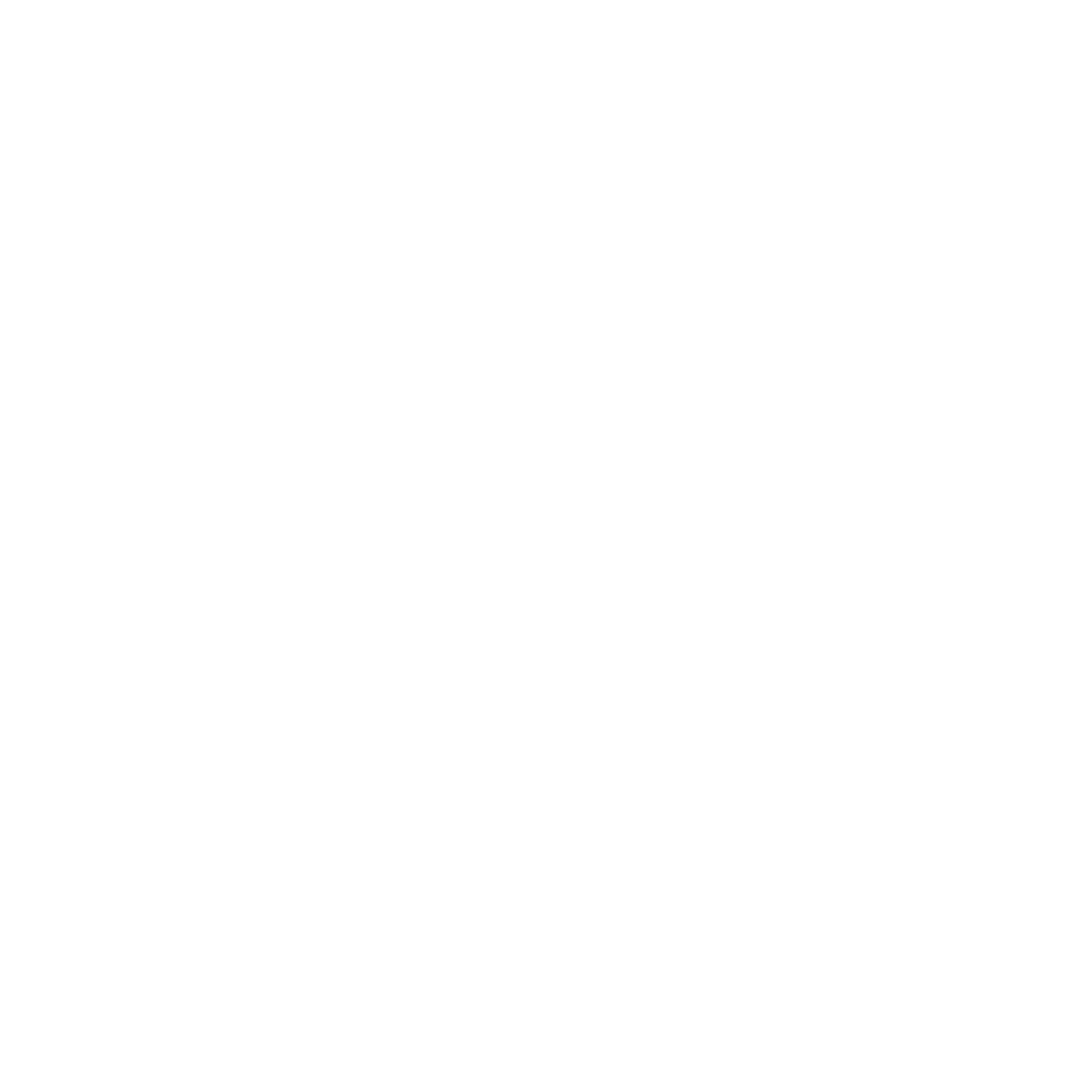

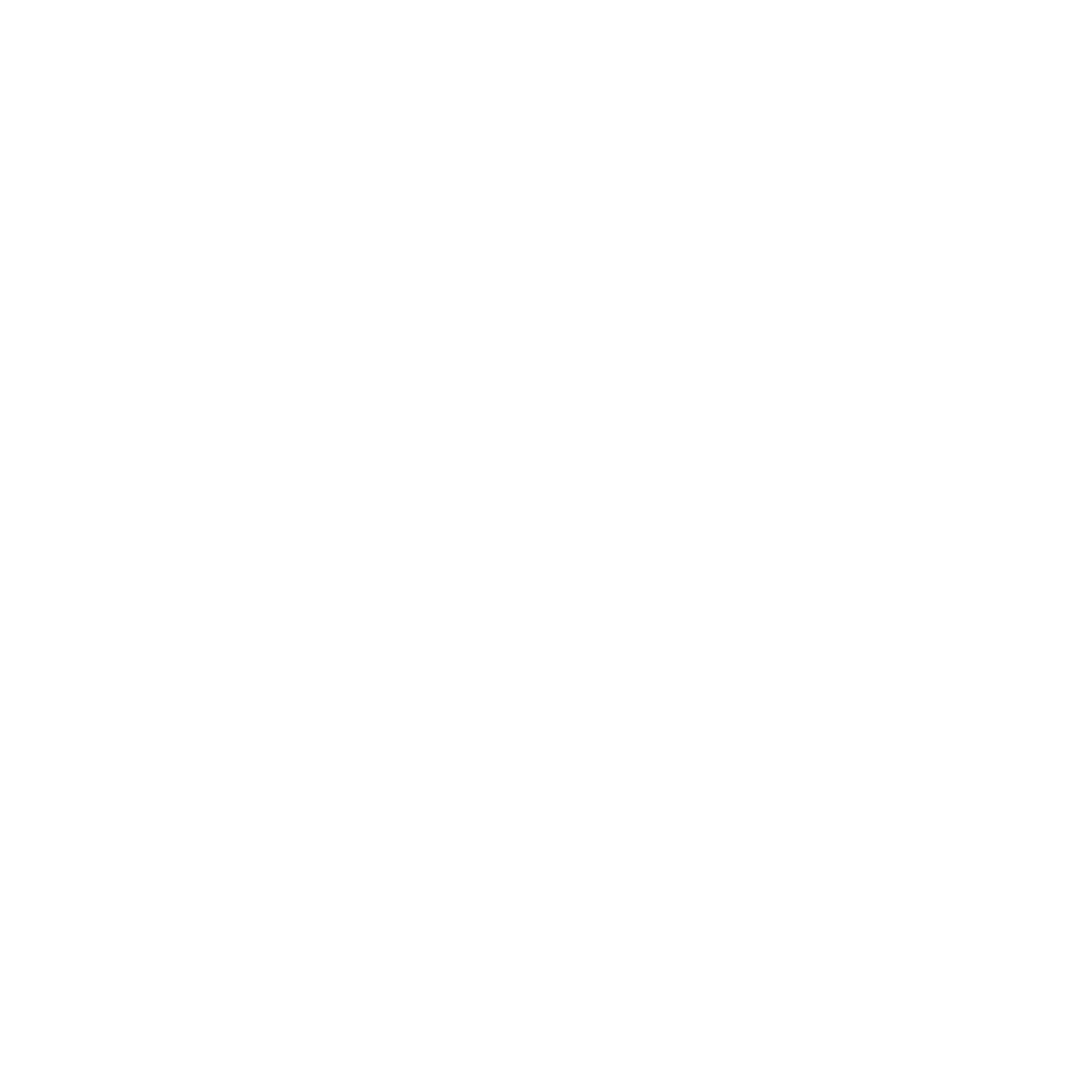

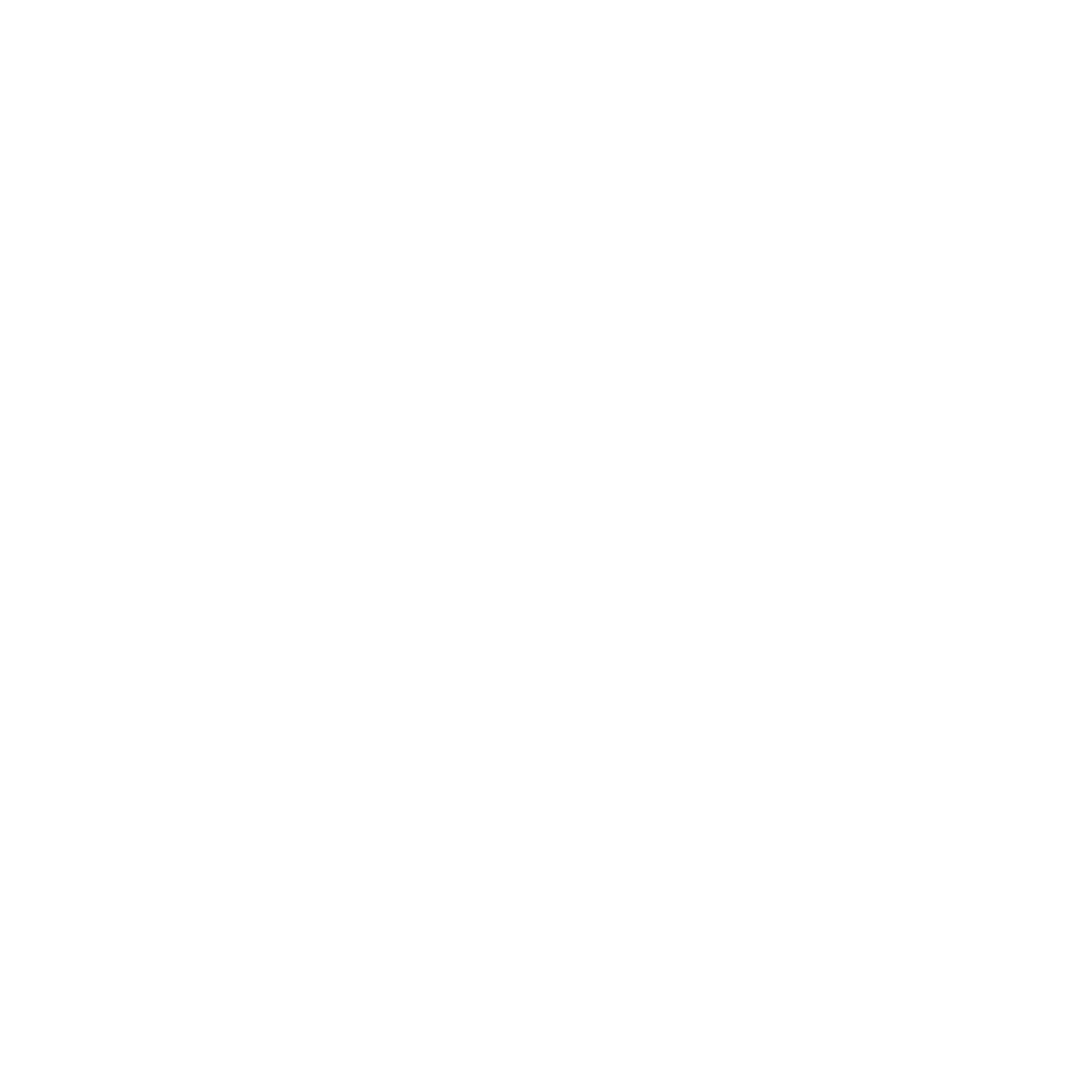

Make sure that washers and nuts are concentric with the
bearings.

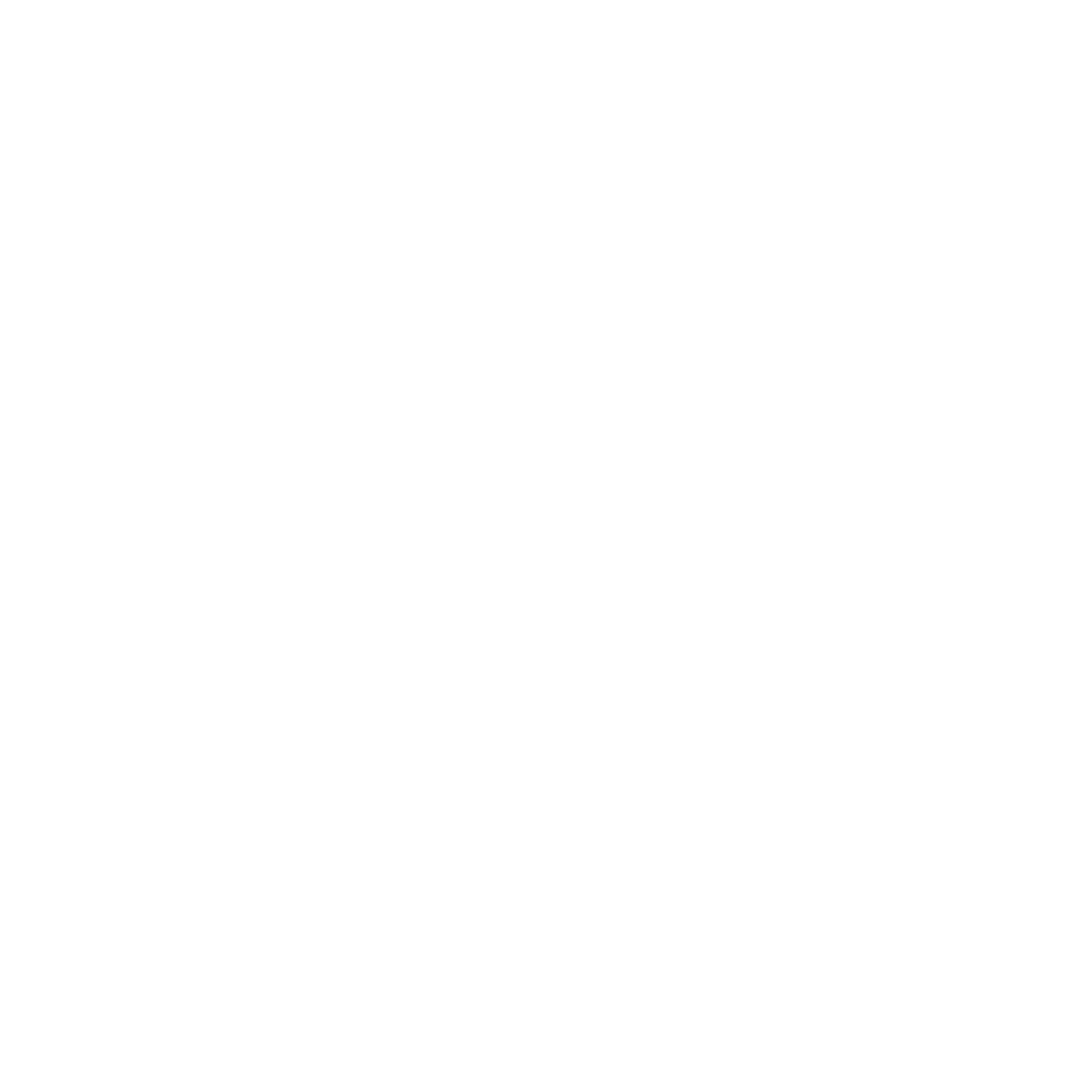

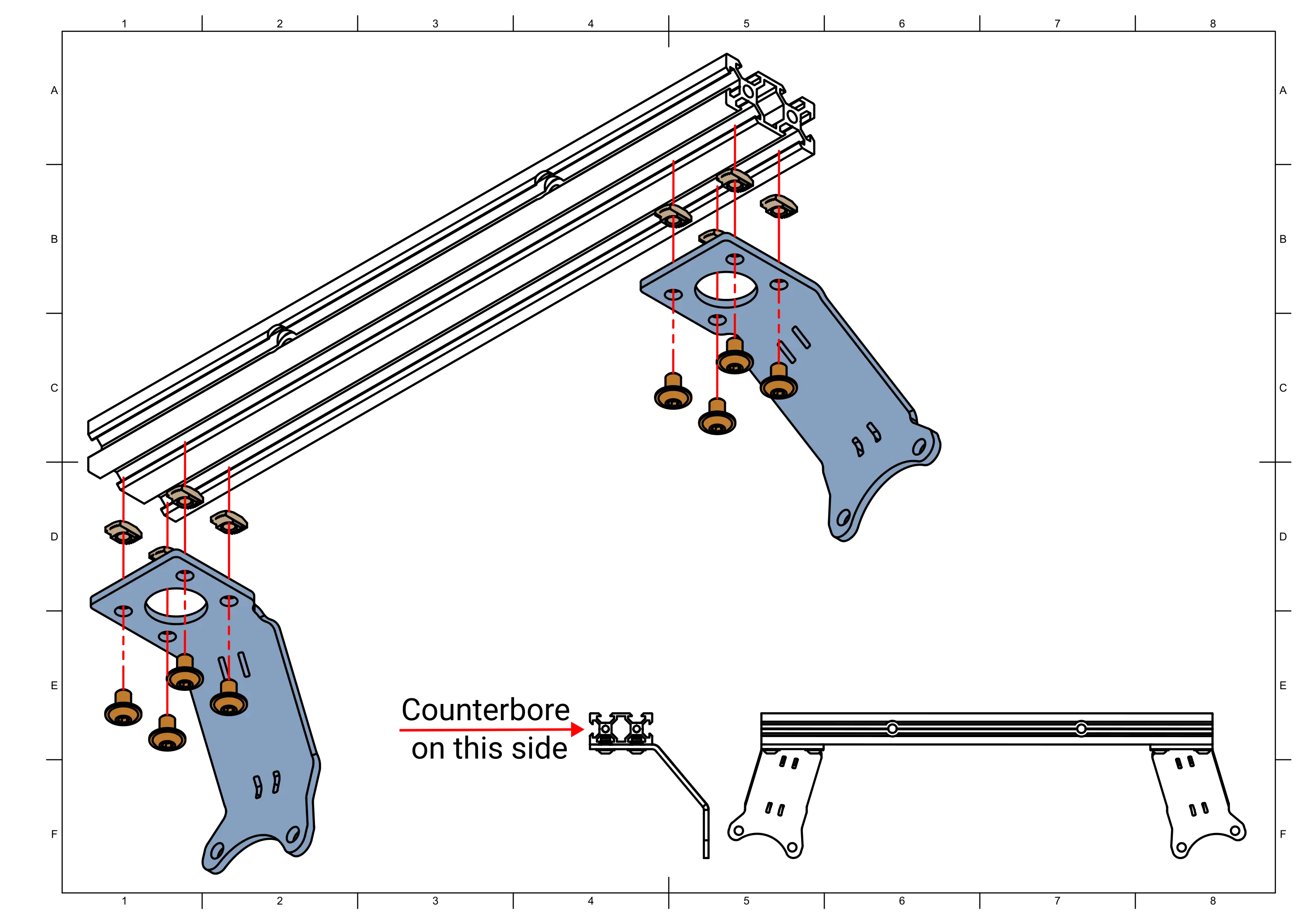

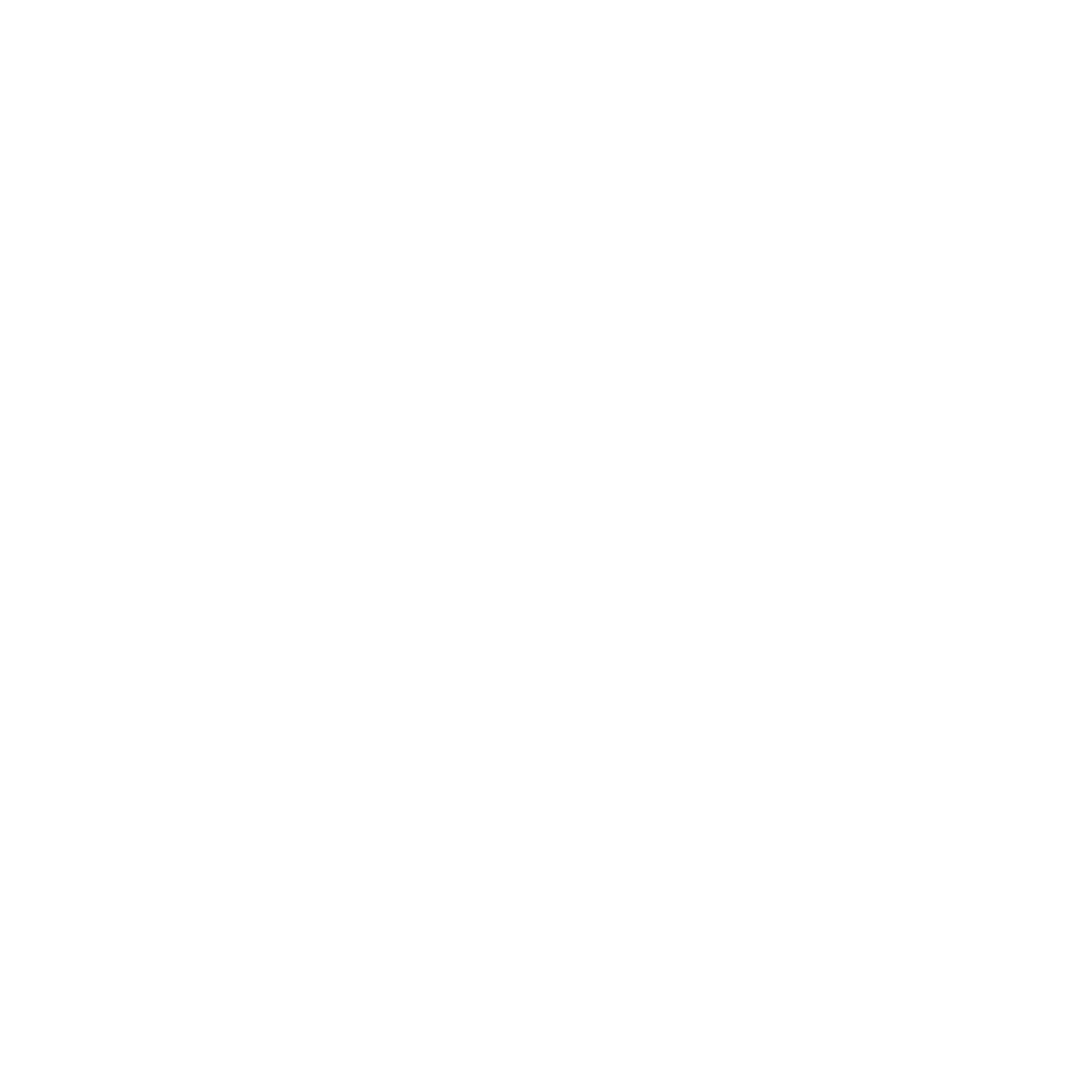

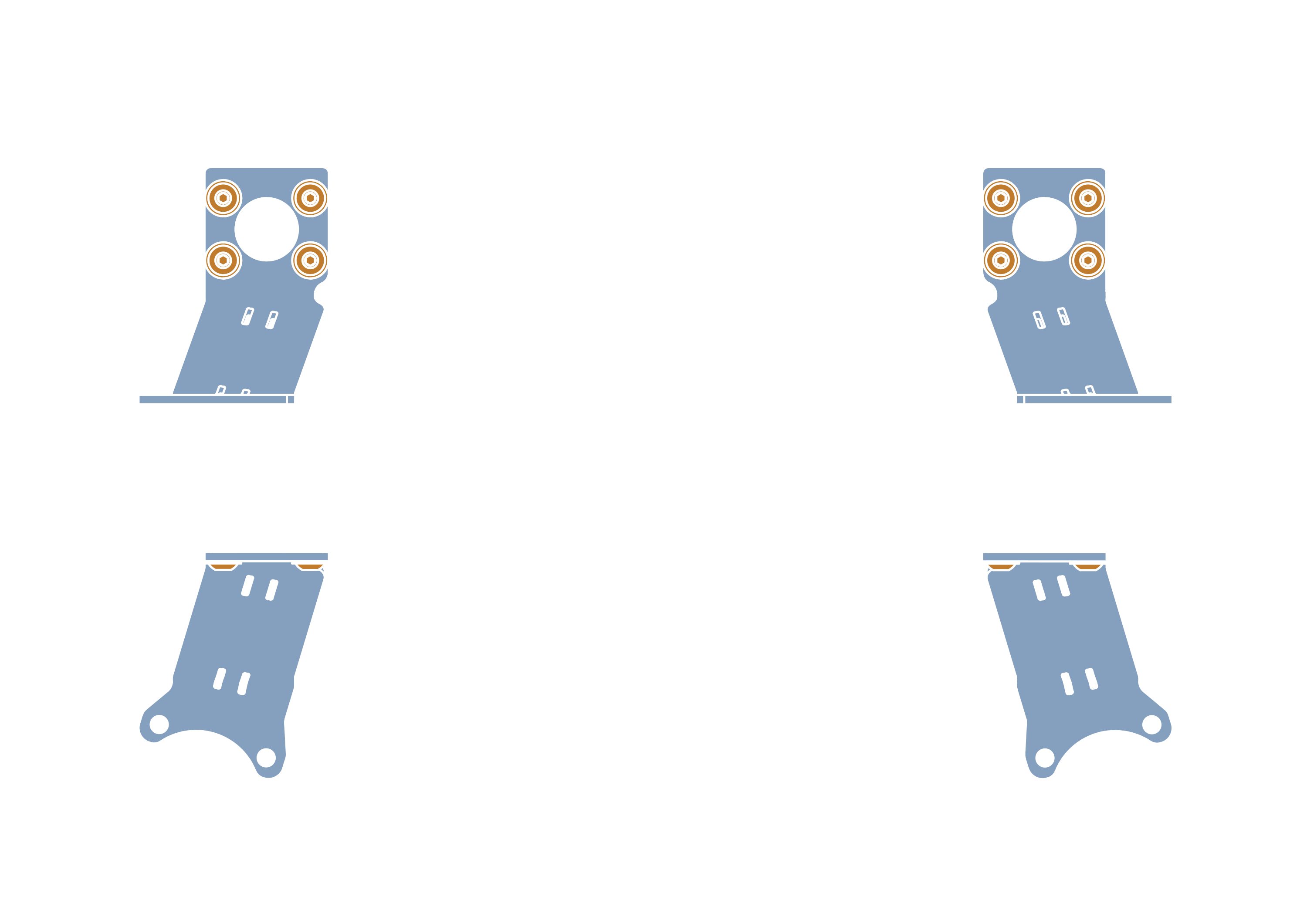

Make sure that rocker mounts
can move without excess play and resistance.
Step 8​
Step 9​
