Task 1: Wheel

Assembly time ≈ 15 minutes per wheel

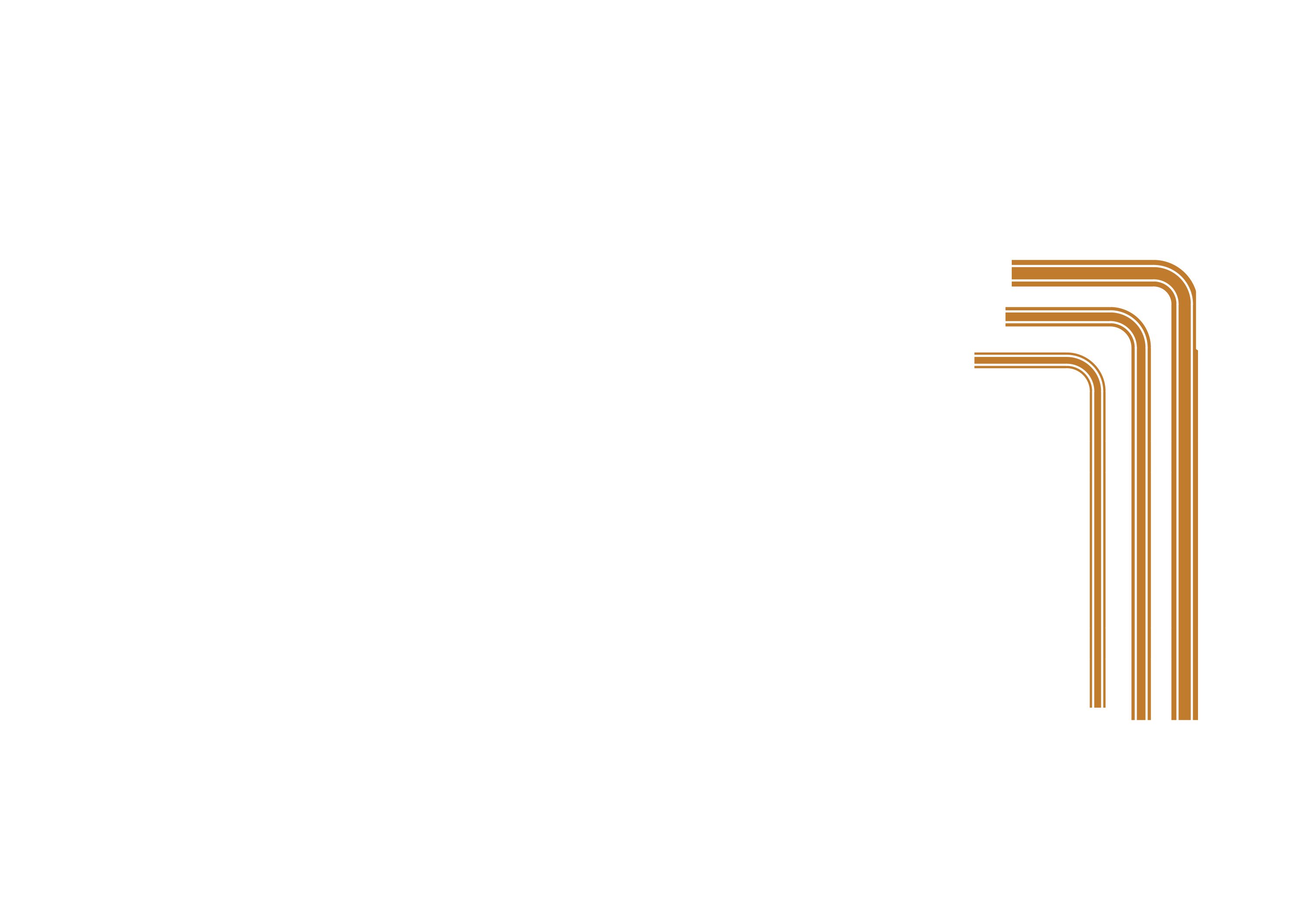

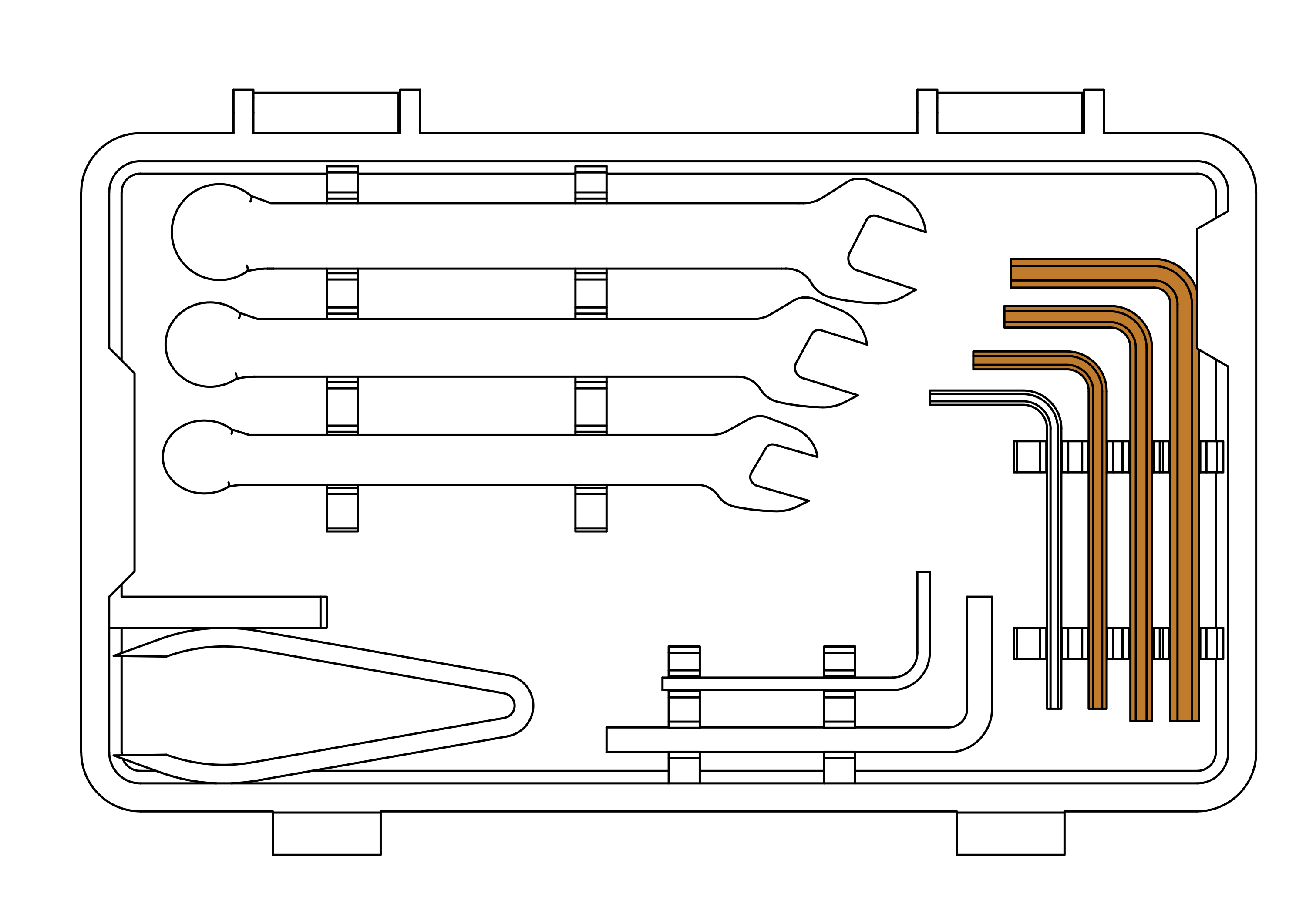

Needed tools
Needed tools

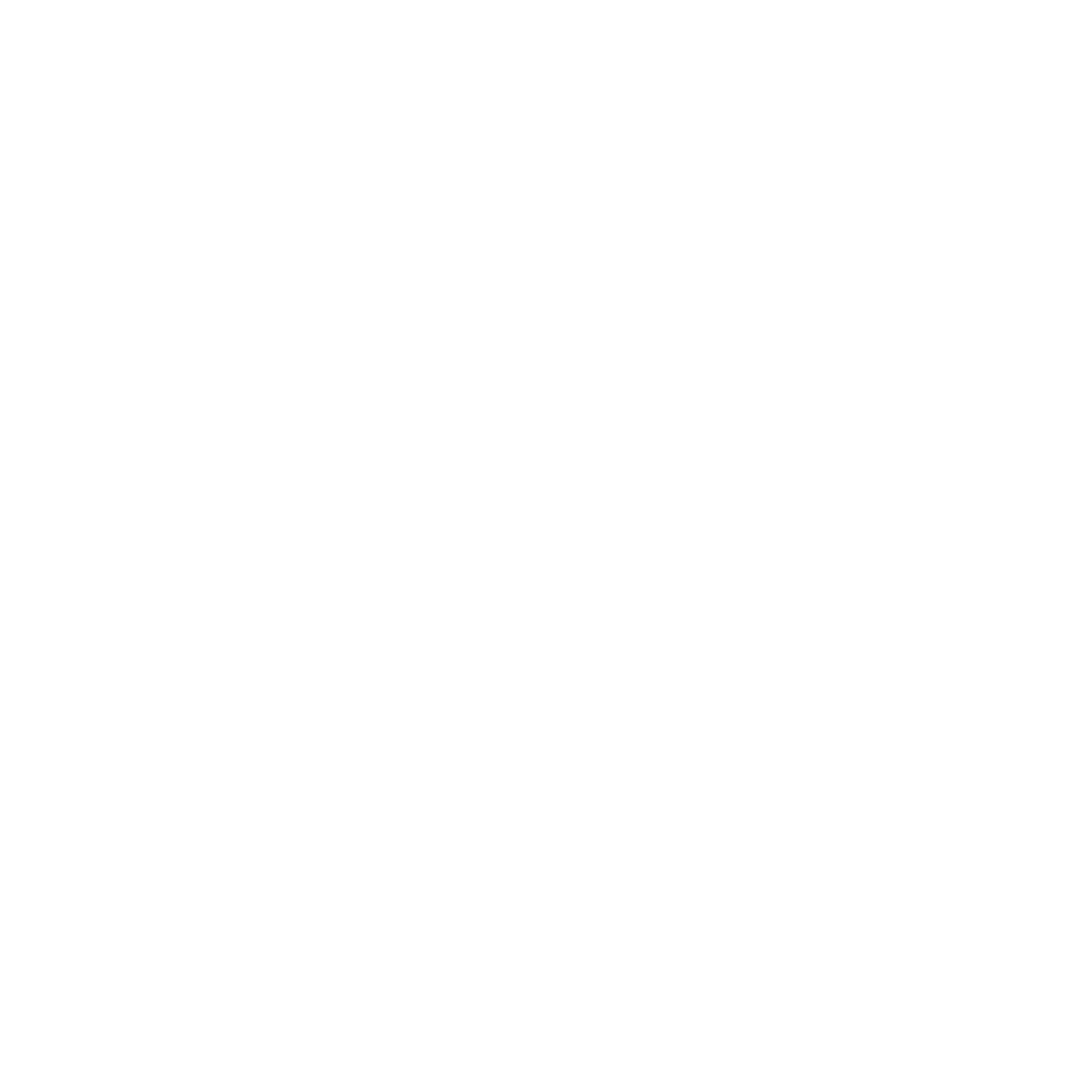

Grease
Grease

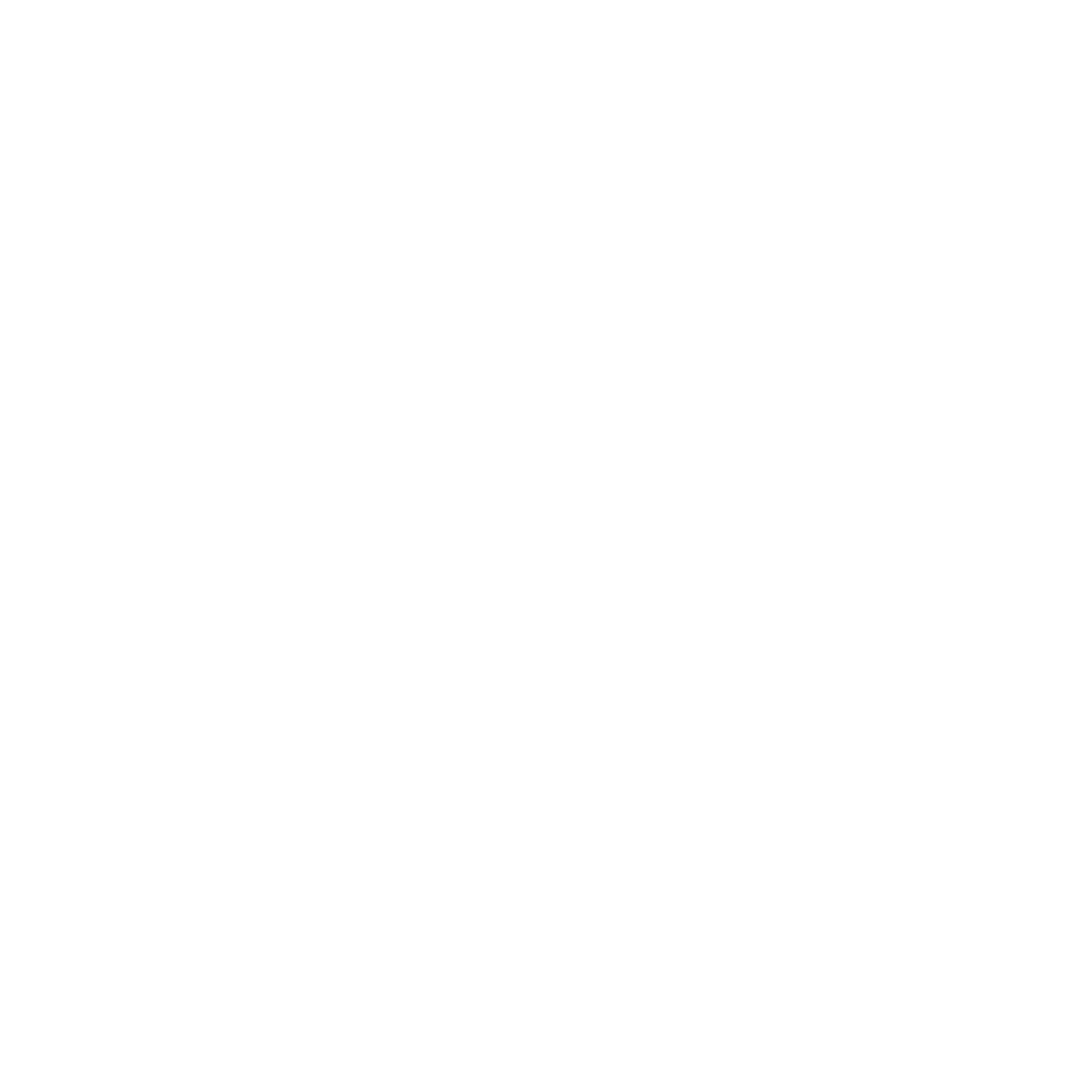

loctite
loctite

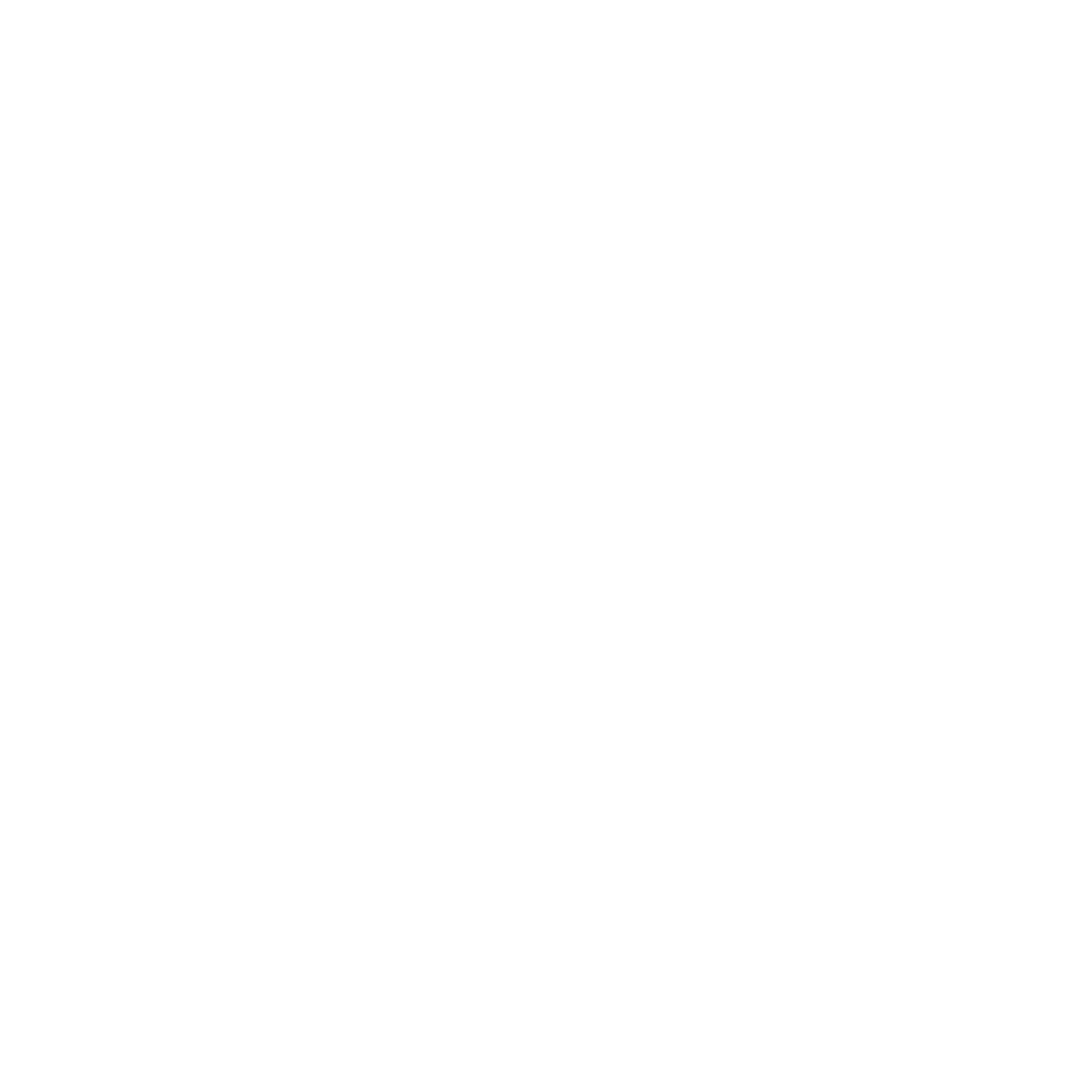

Layer 2
Layer 2

Step 1​

Lithium grease
Lithium grease

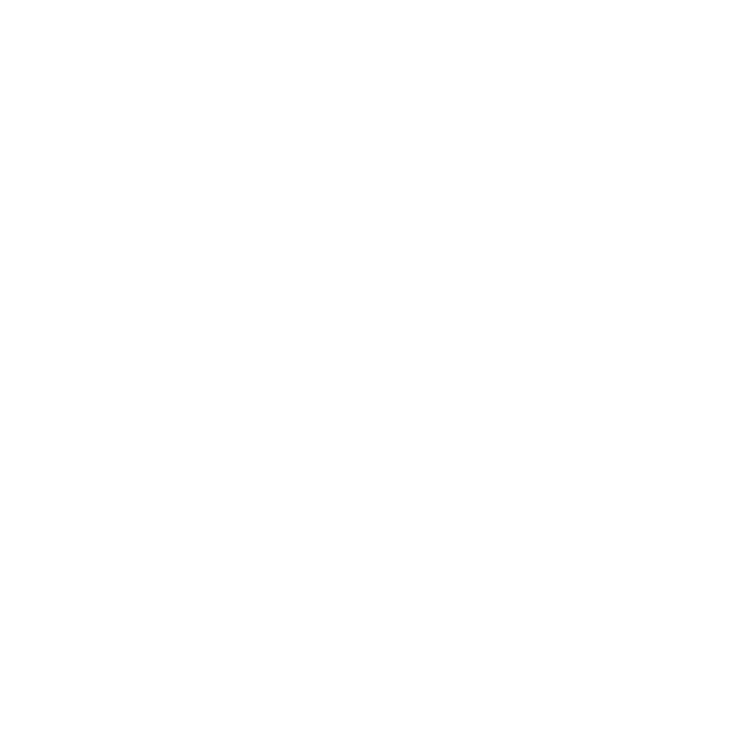

Motor
Motor
Step 3 - 1
Step 3 - 1
note

Press a decent amount of lithium grease between the shaft seal and the motor housing.

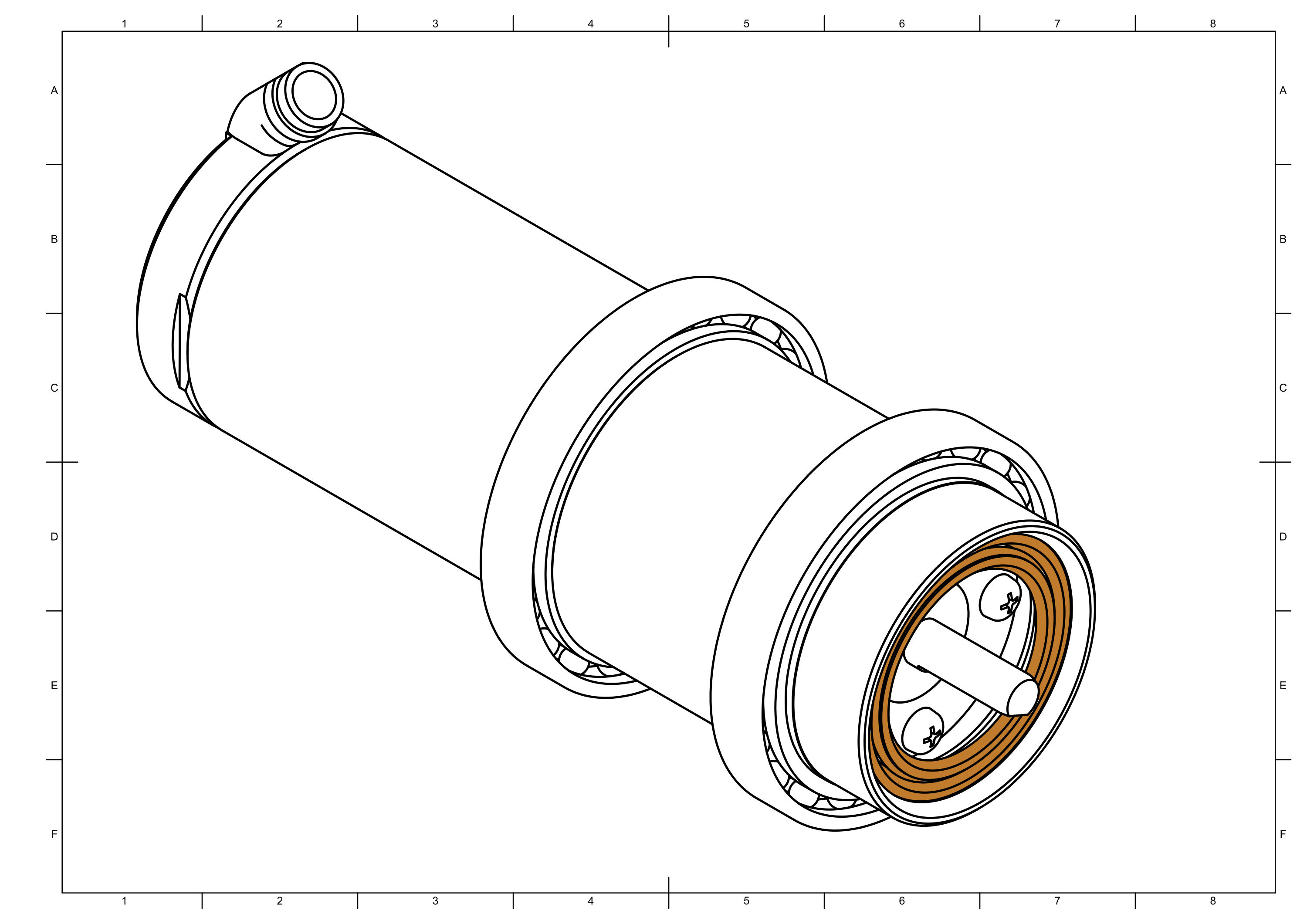

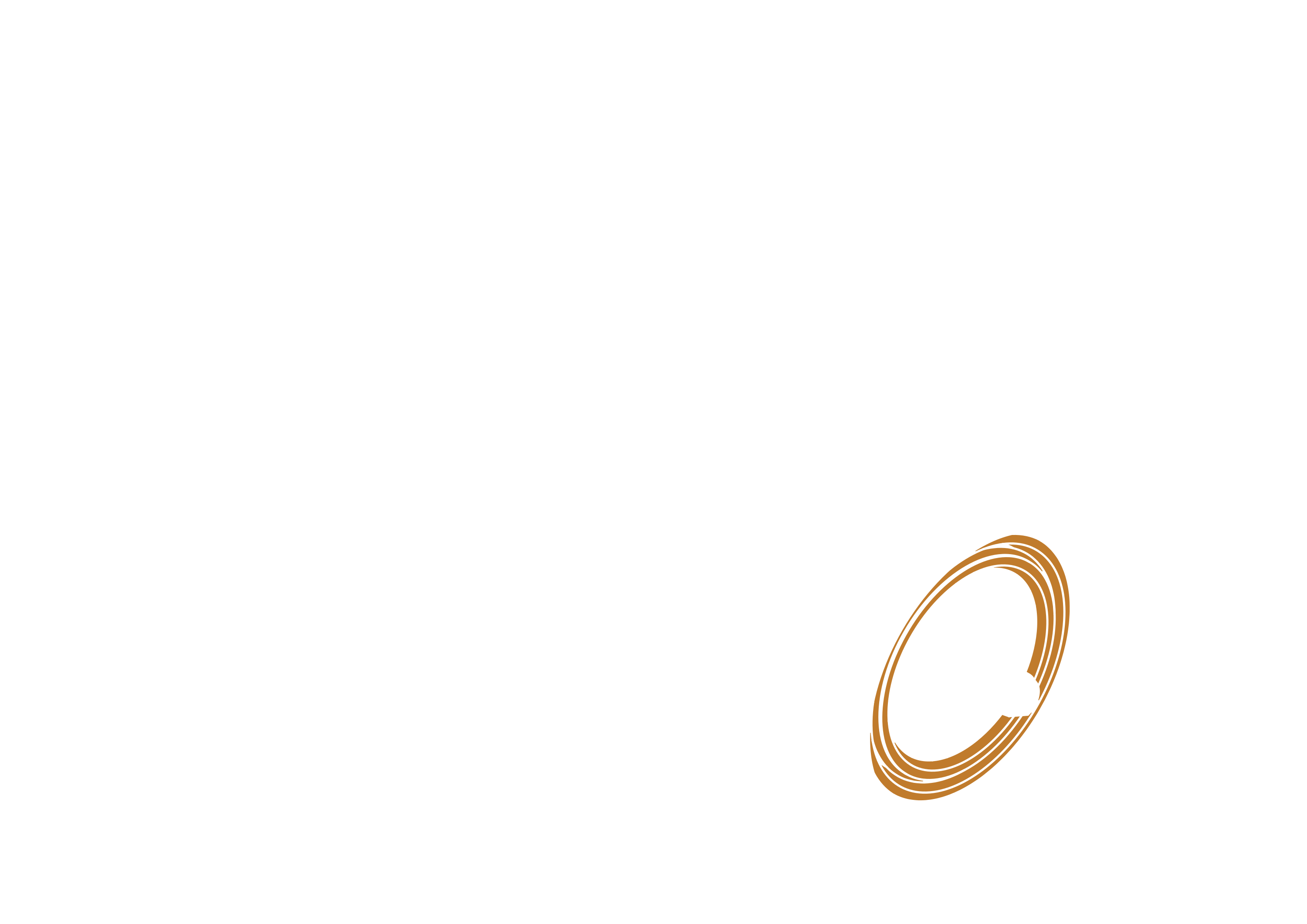

Motor with grease
Motor with grease

Step 2​

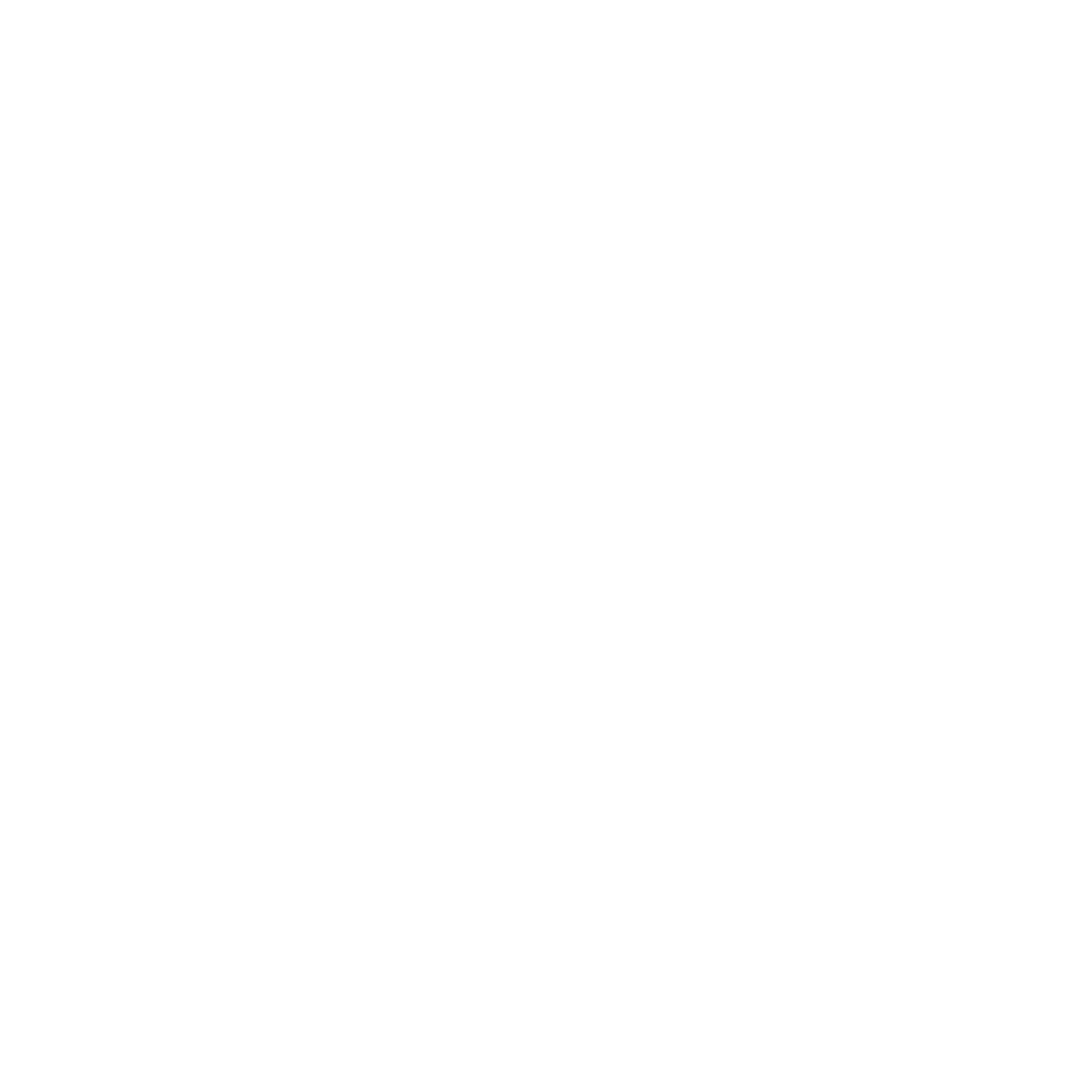

shaft adapter
shaft adapter

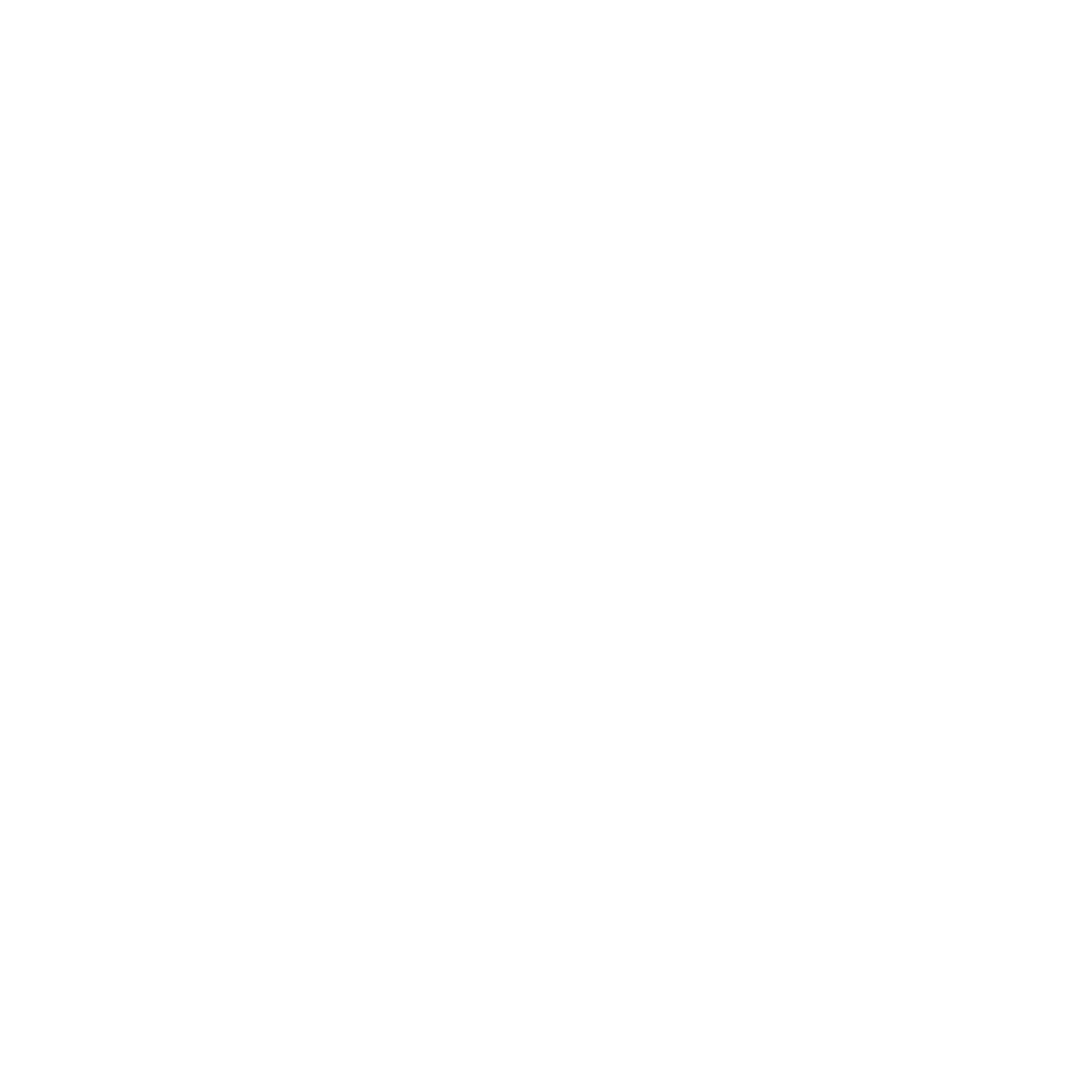

Set Screw M5
Set Screw M5
Set Screw M5
Set Screw M5
loctite
loctite

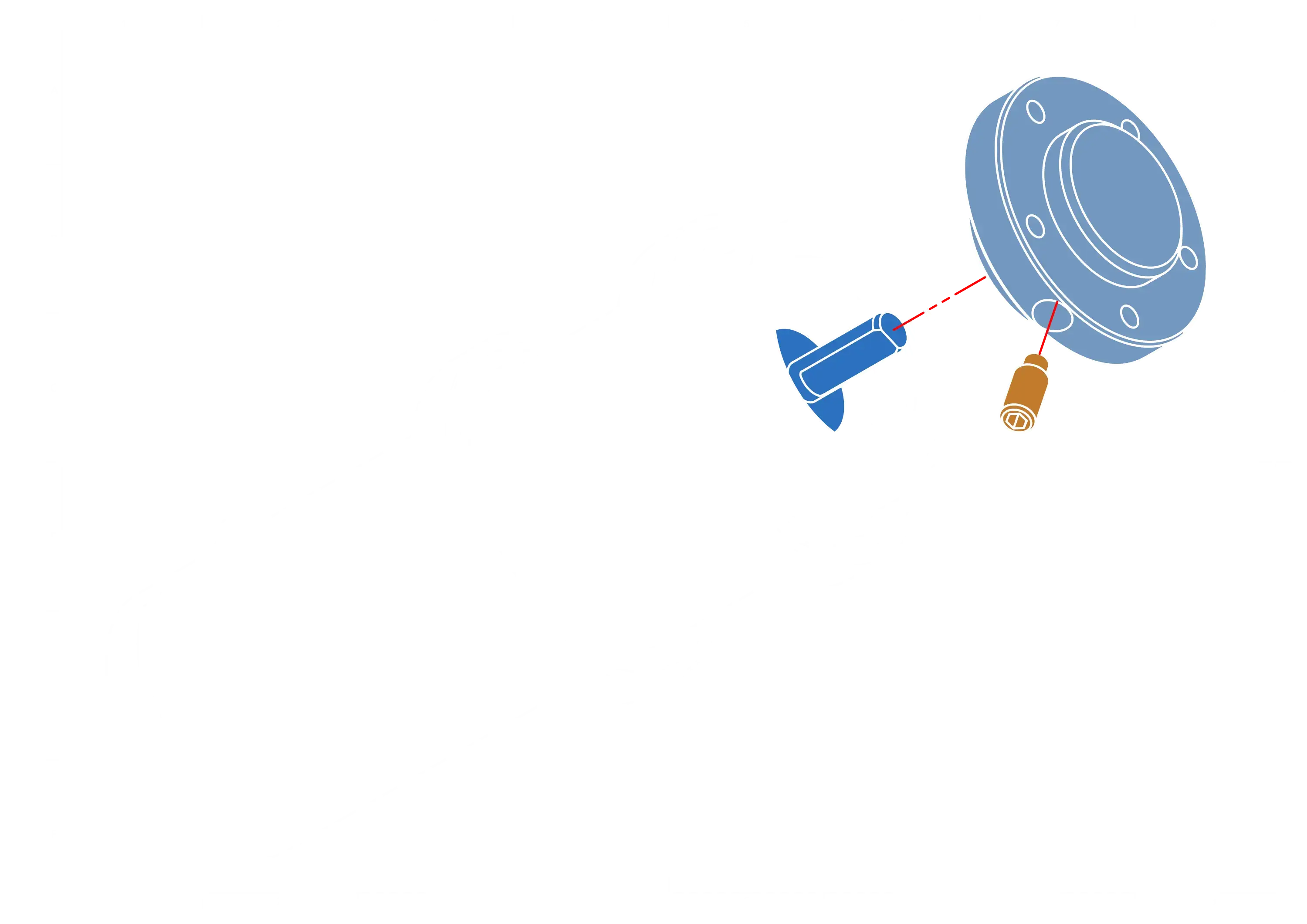

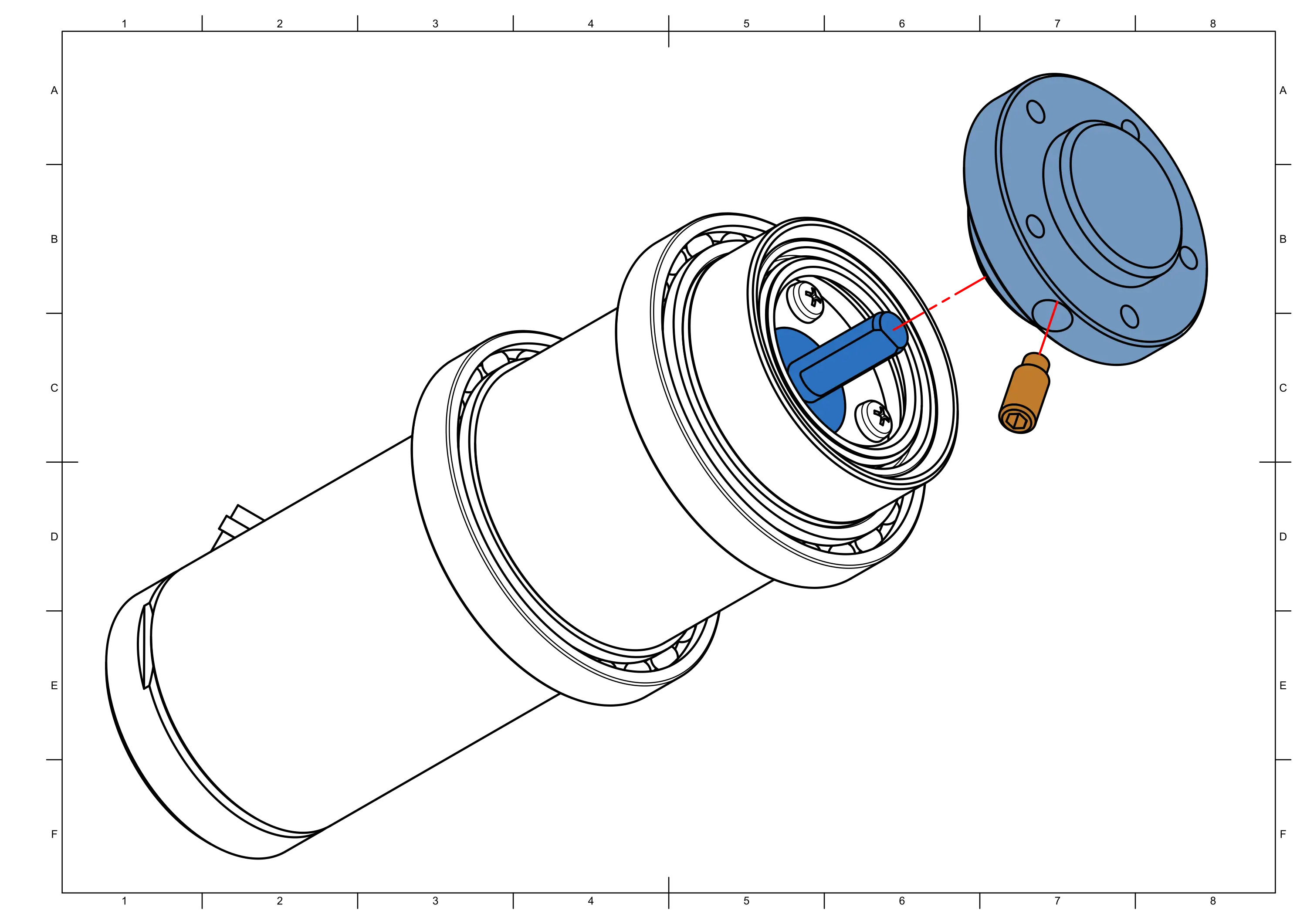

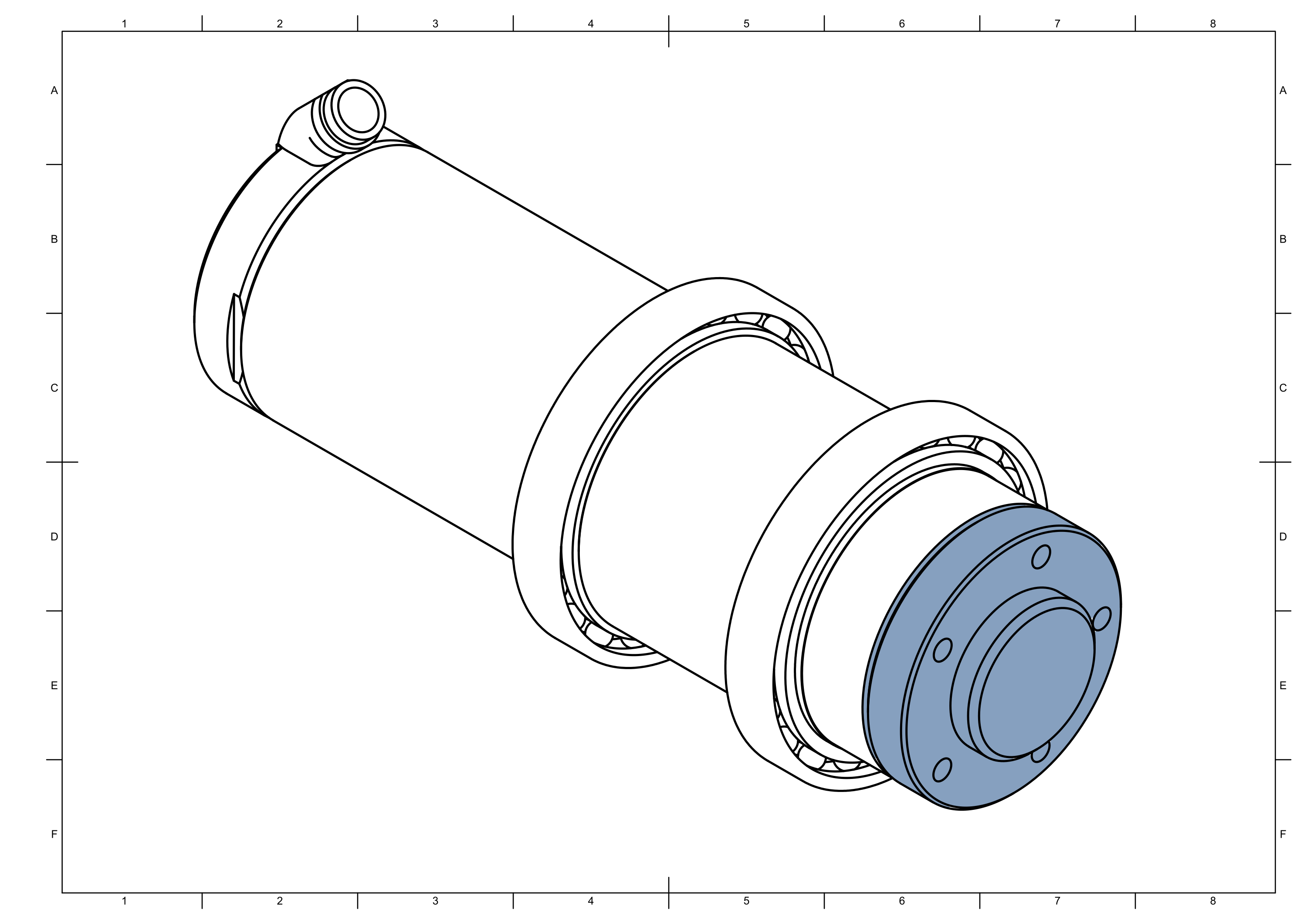

Shaft addapter assembly
Shaft addapter assembly
note

Align the flat segment of motor shaft with headless screw. Use a drop of loctite to make sure it stays in place.

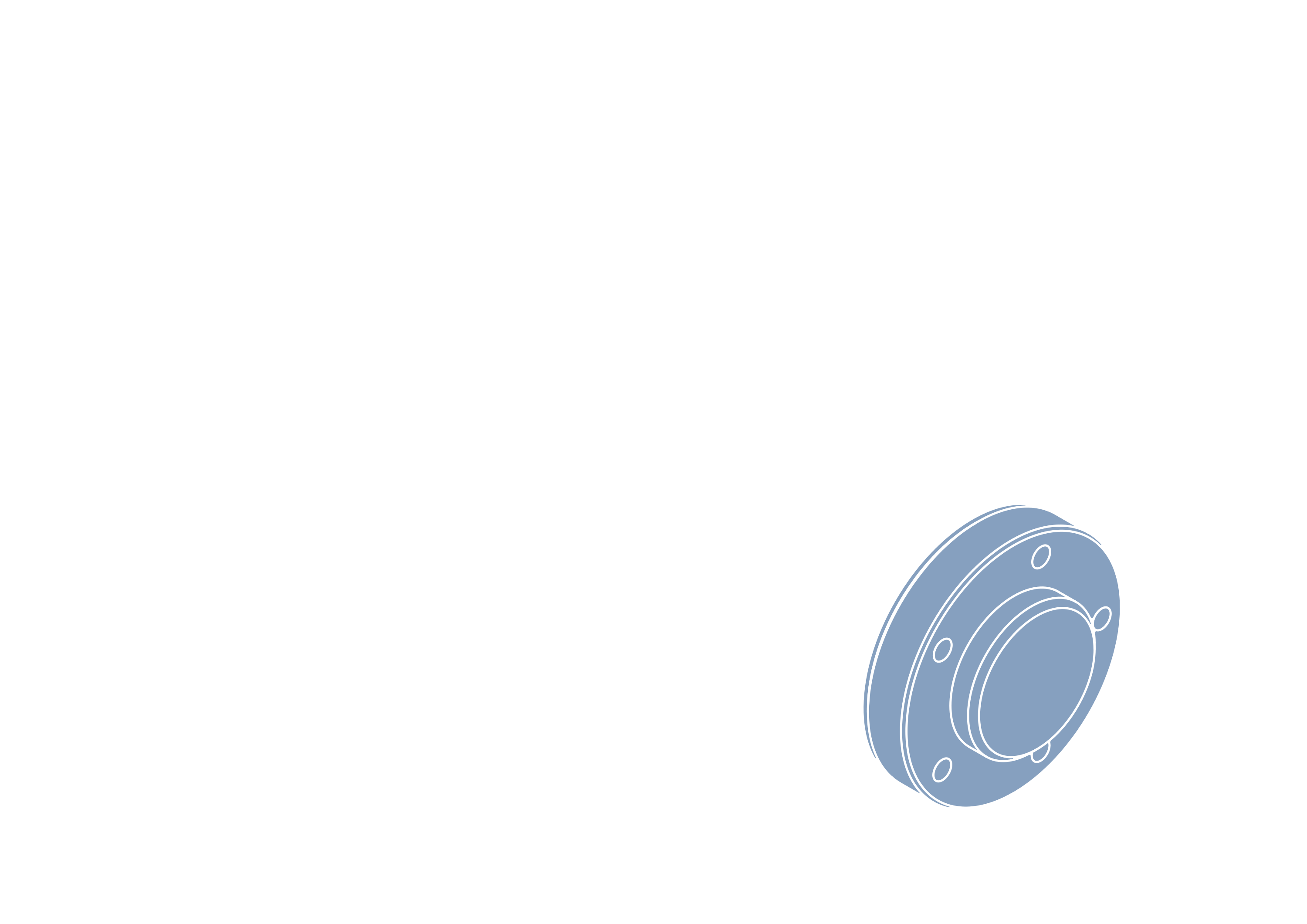

Assembled shaft adapter
Assembled shaft adapter

Step 2​

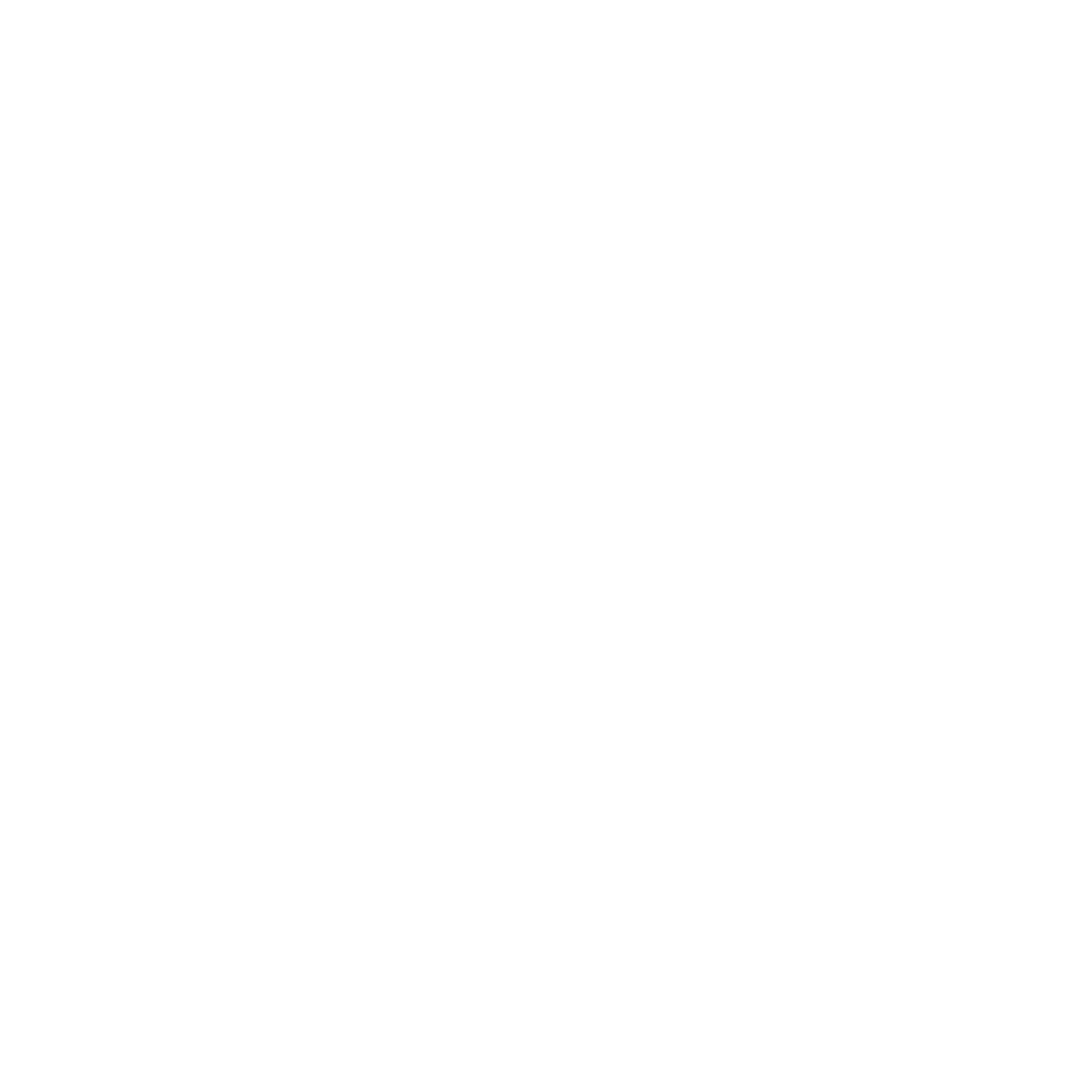

Motor mount
Motor mount

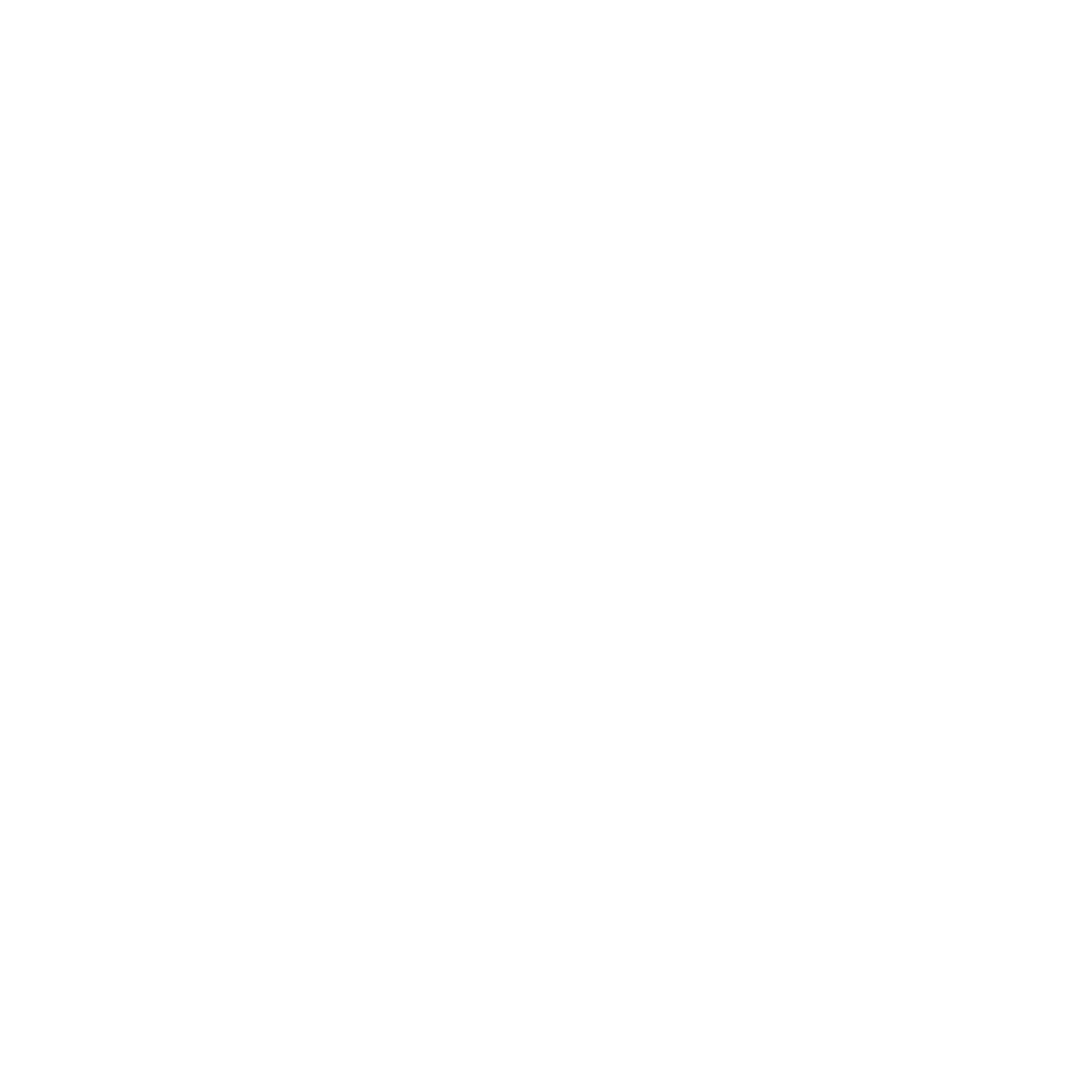

2x M4x20 SHCS
2x M4x20 SHCS
2x M4x20 SHCS
2x M4x20 SHCS

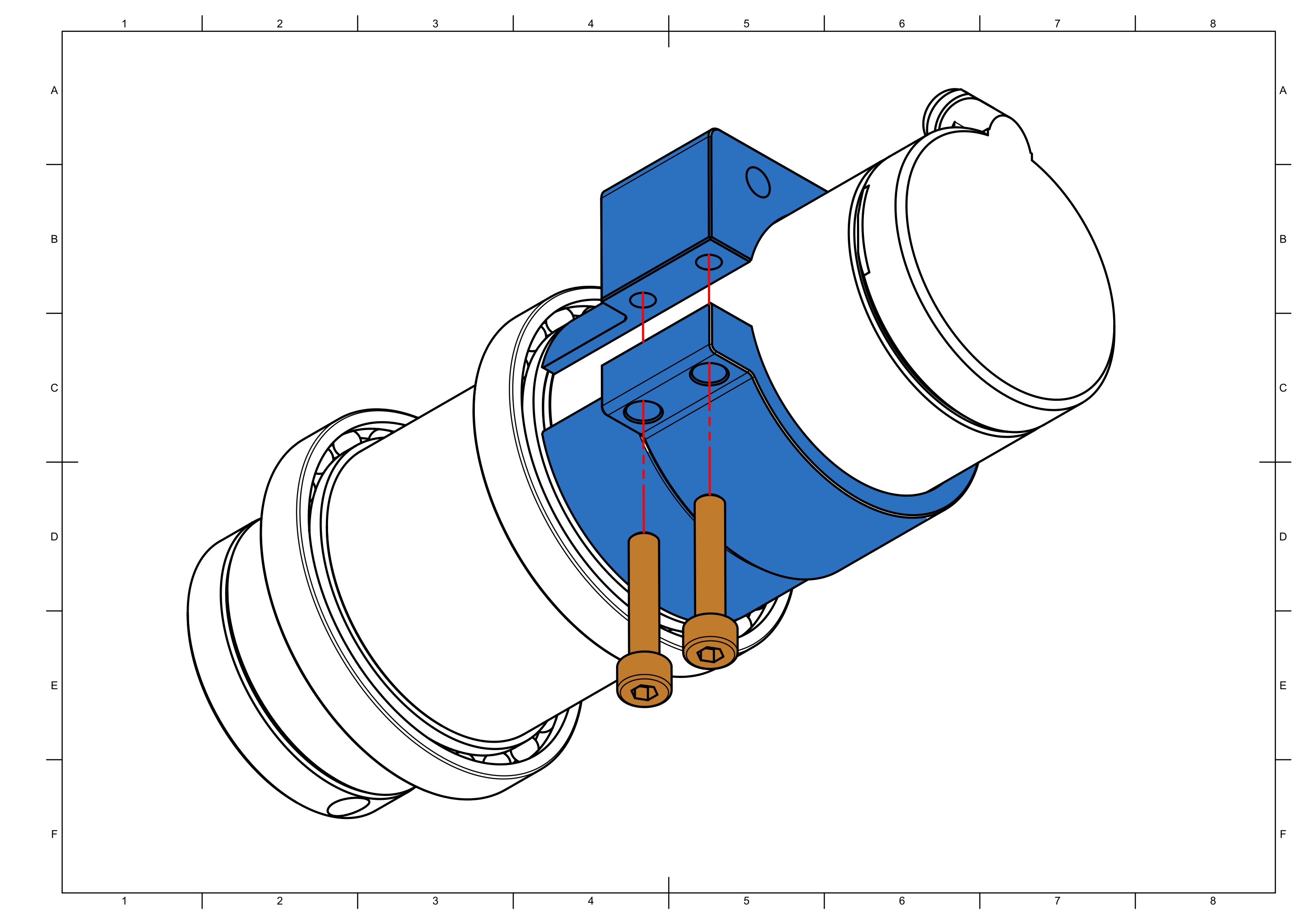

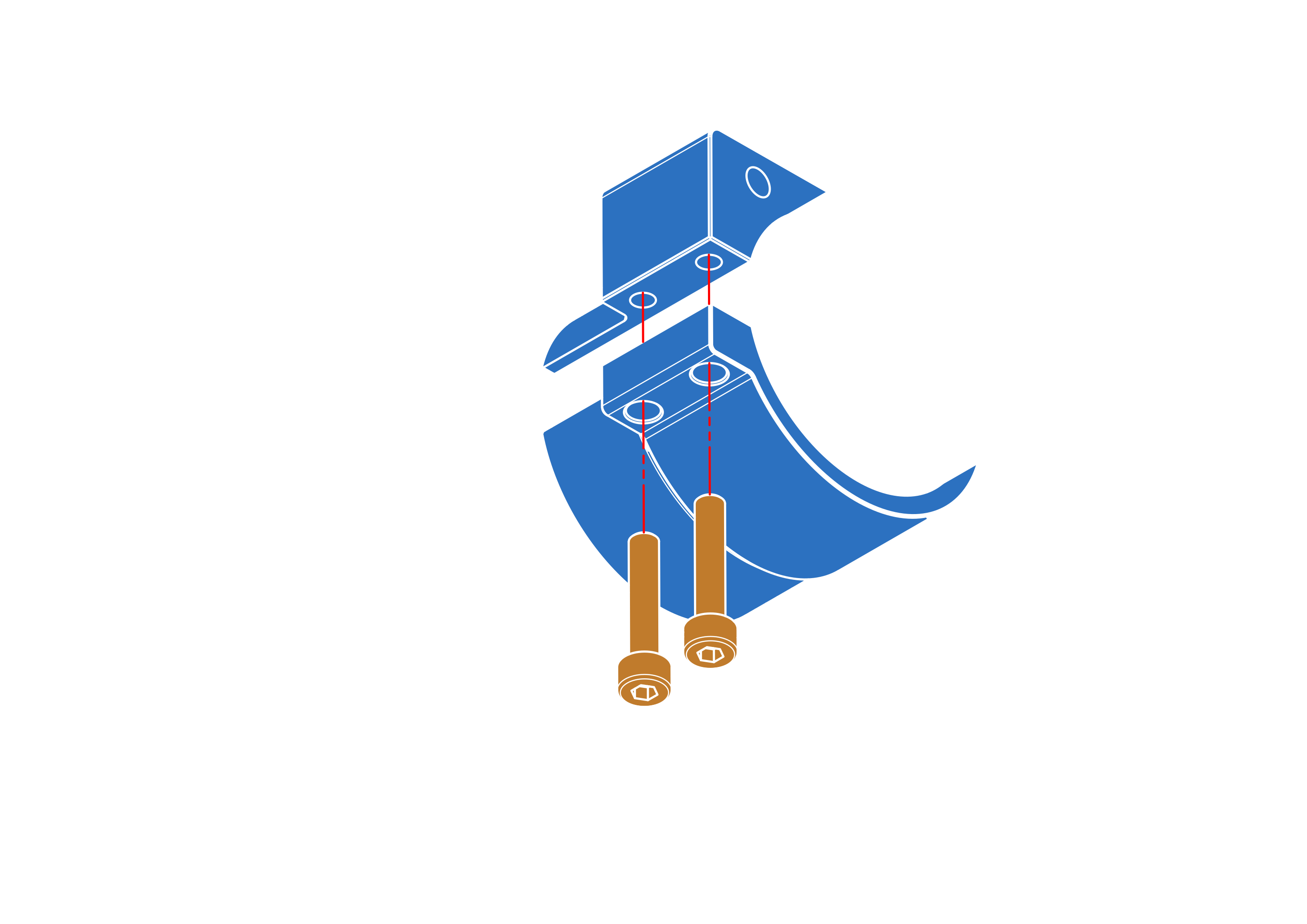

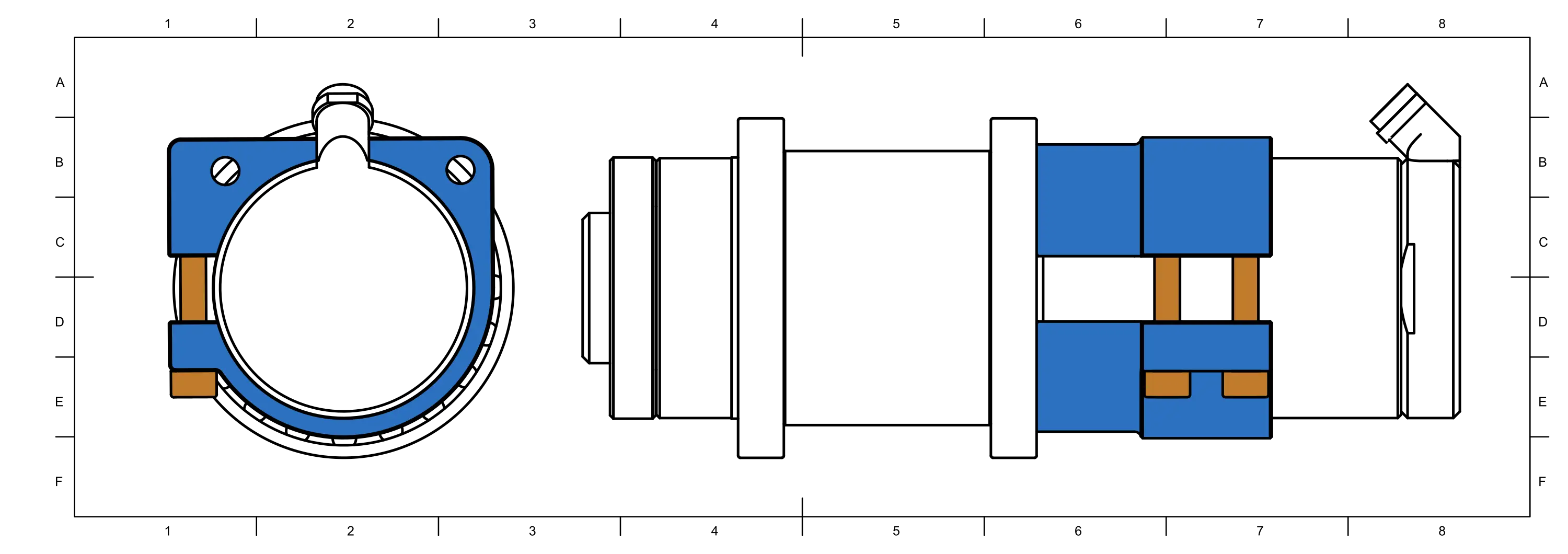

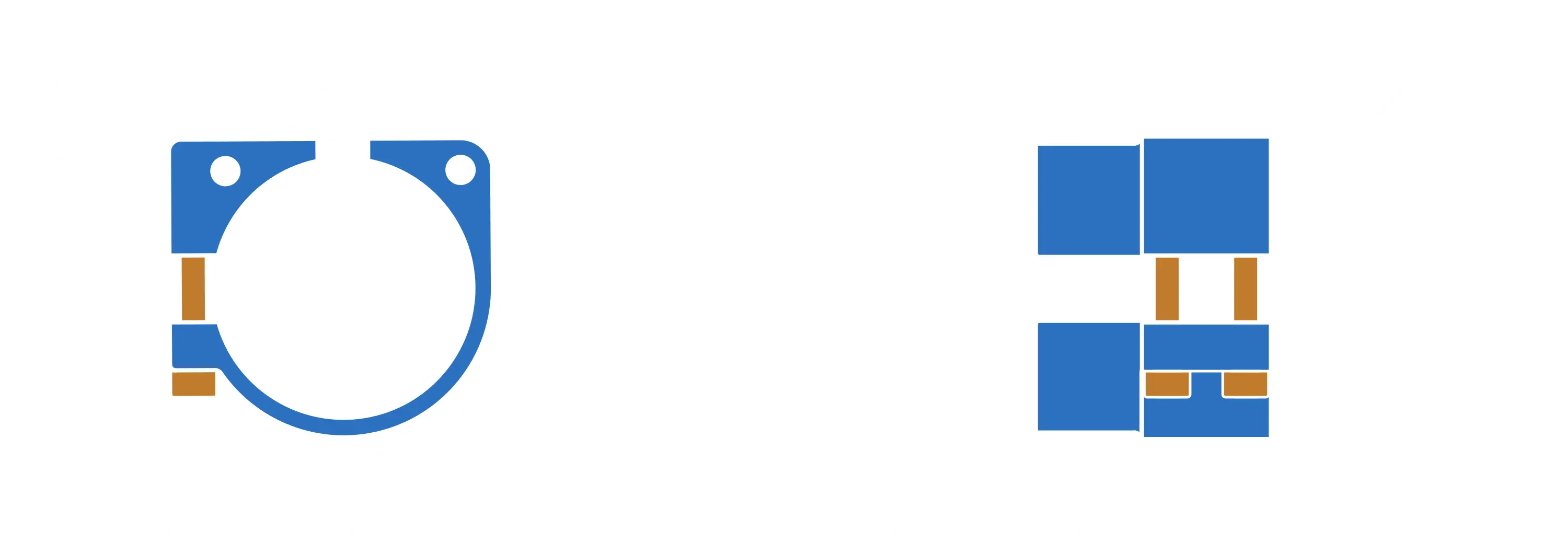

Motor mount assembly
Motor mount assembly
note

Slide the motor mount forward until it touches the base of the bearing before tightening.

Assembled motor mount
Assembled motor mount

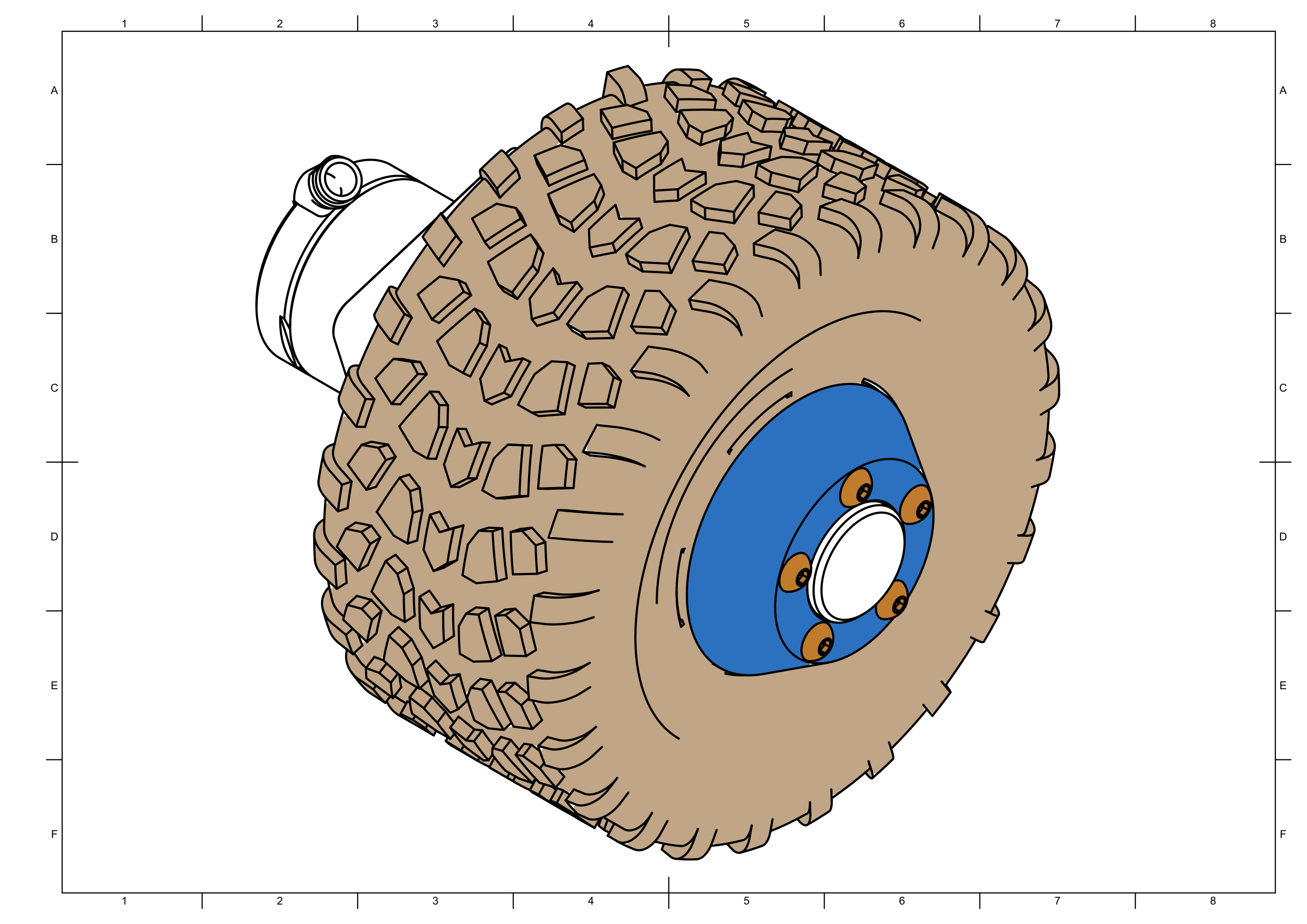

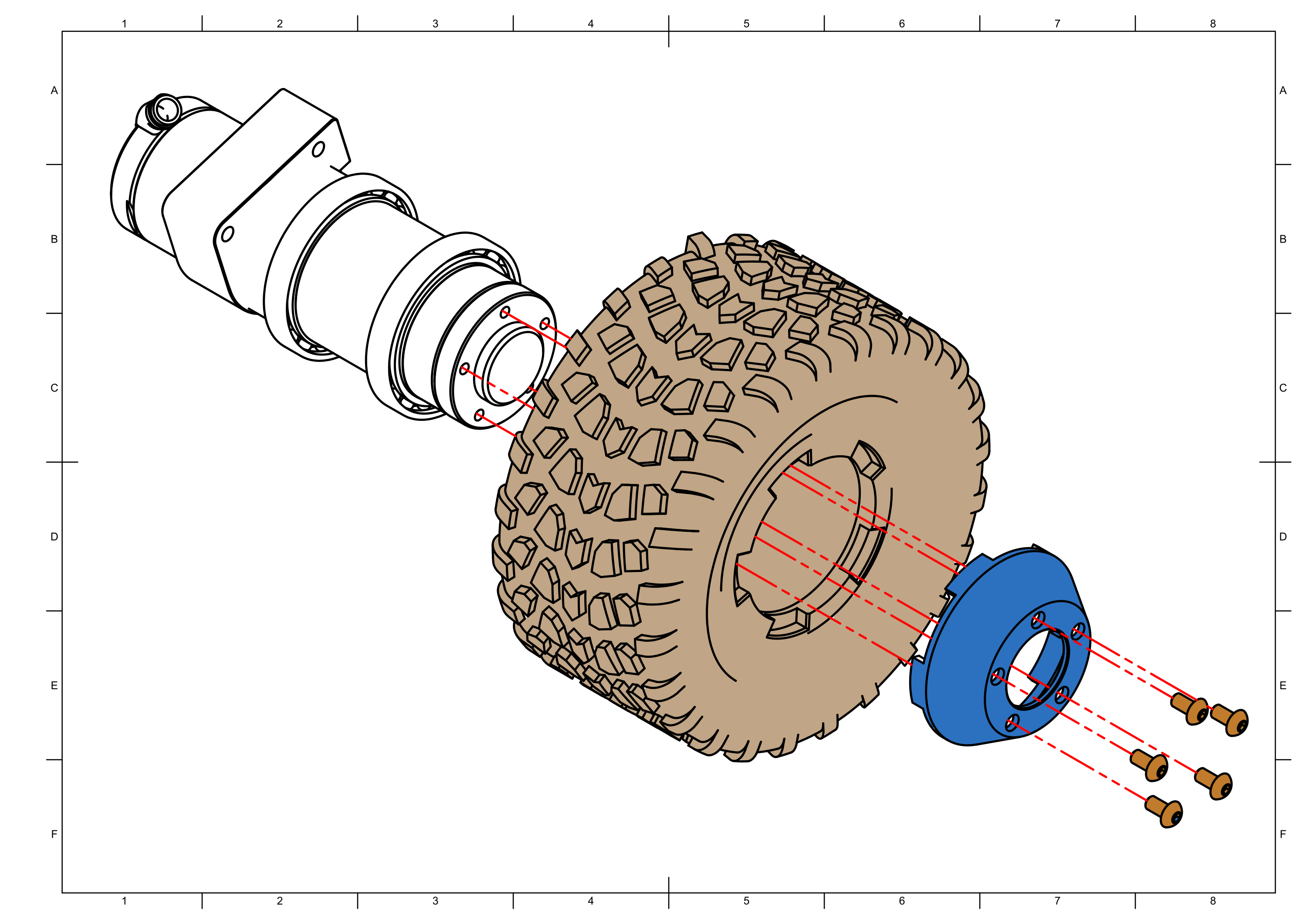

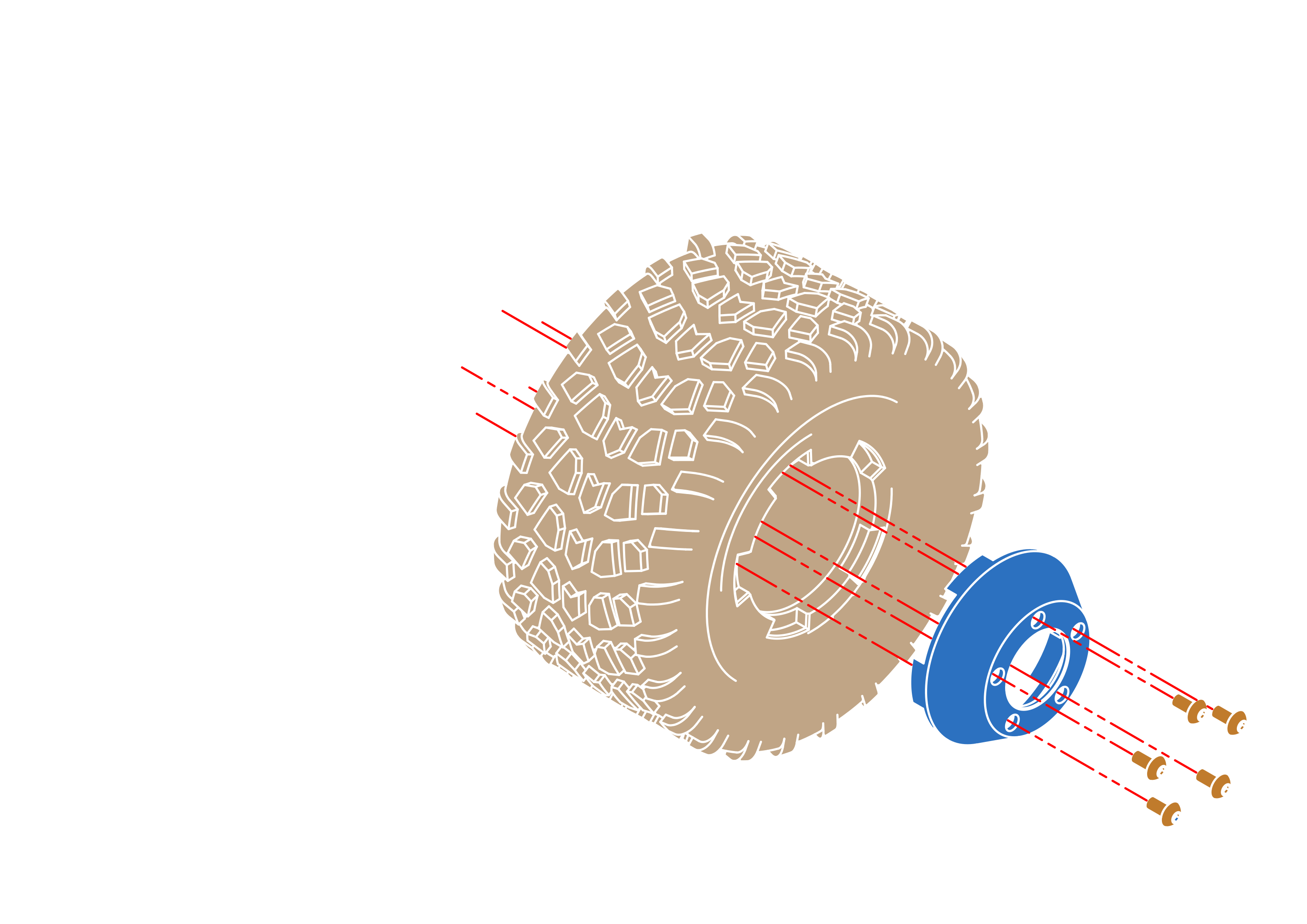

Step 4​

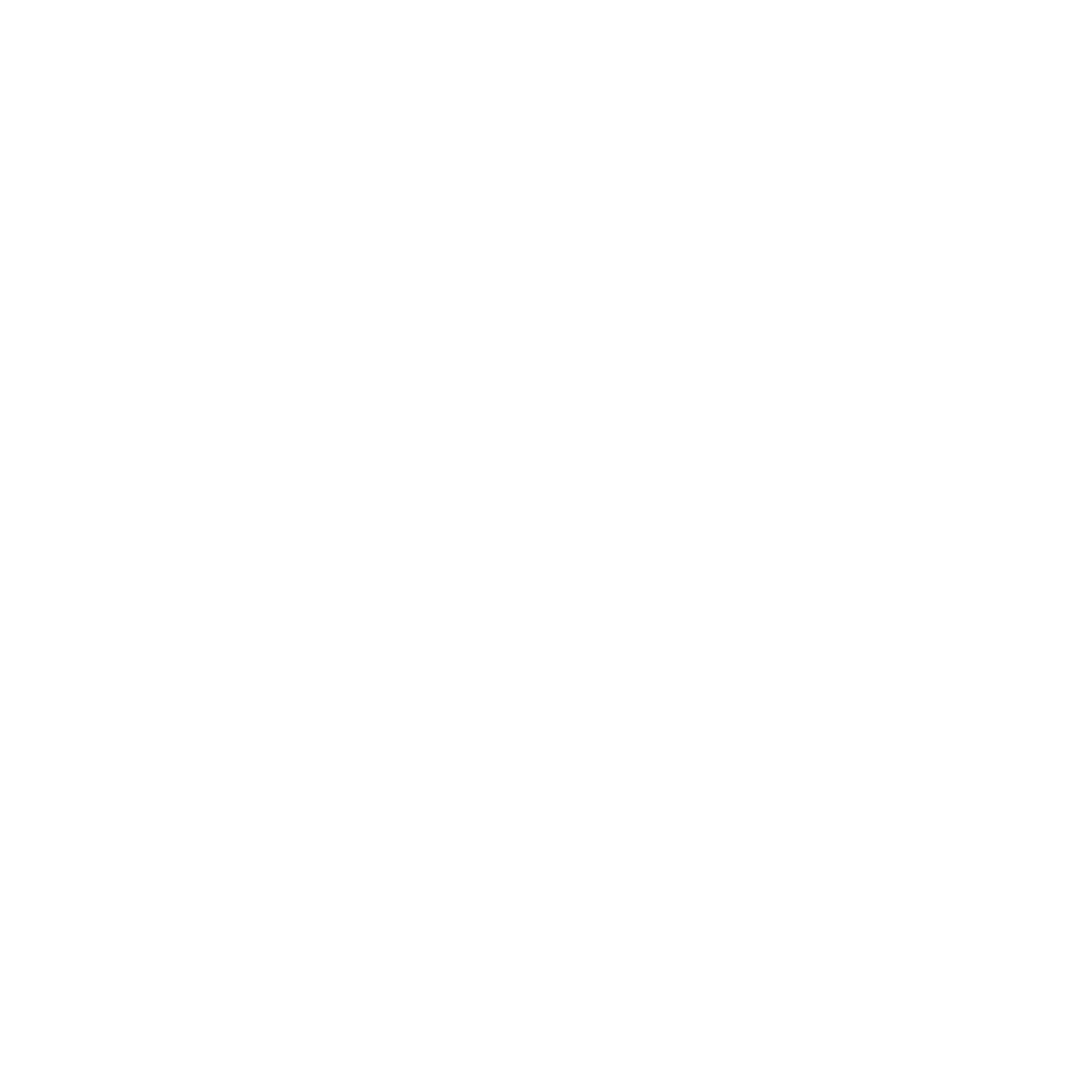

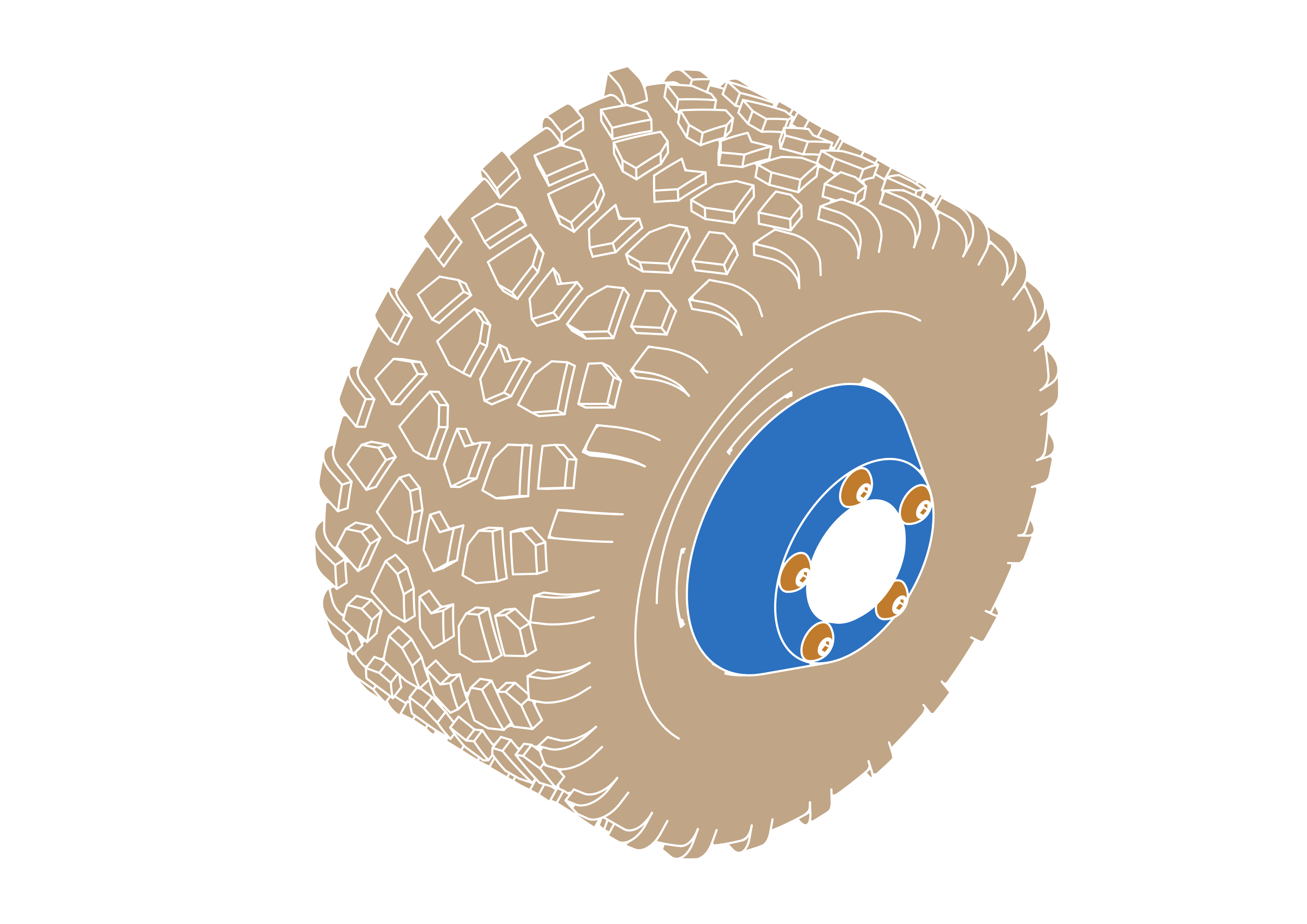

Wheel
Wheel

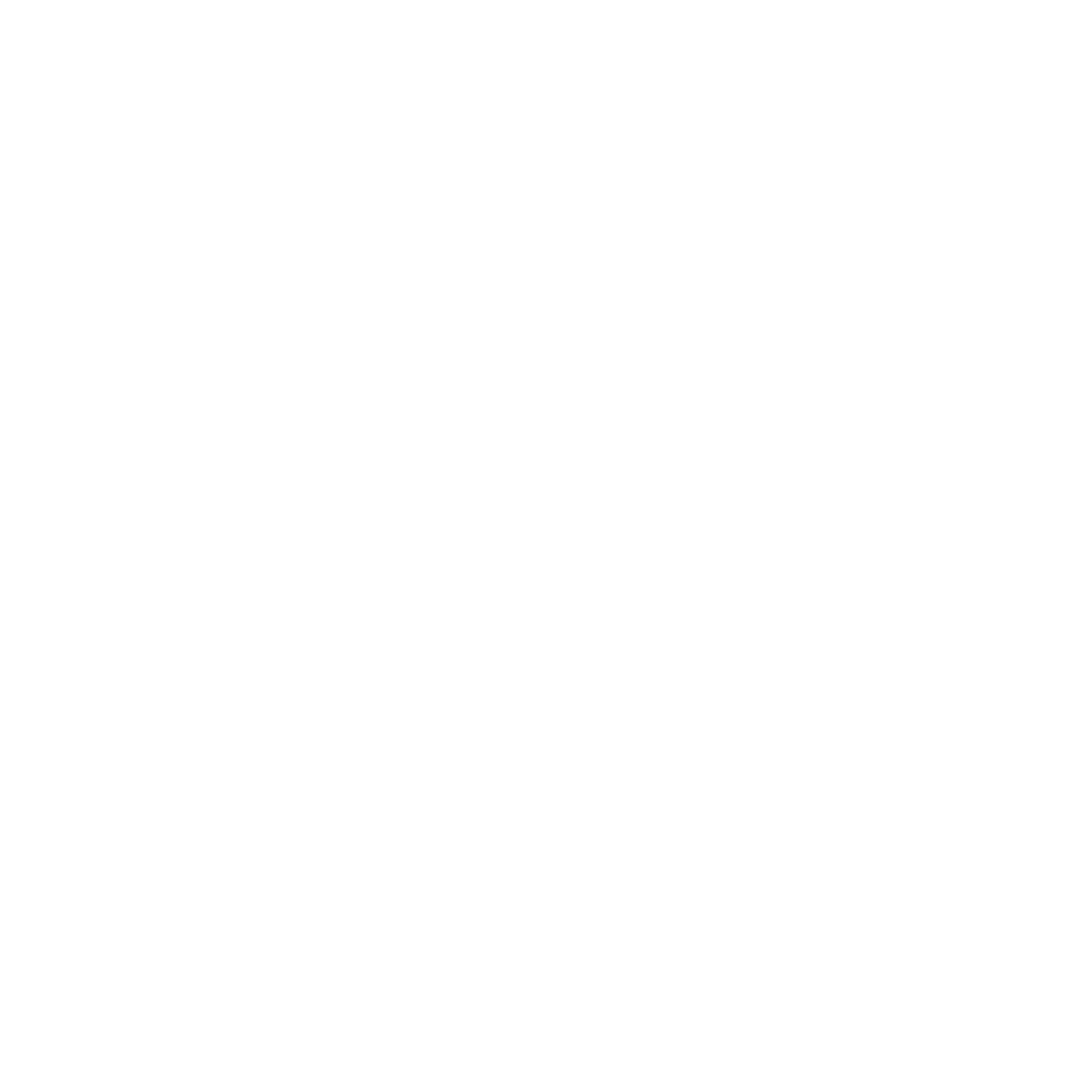

Torque plate
Torque plate

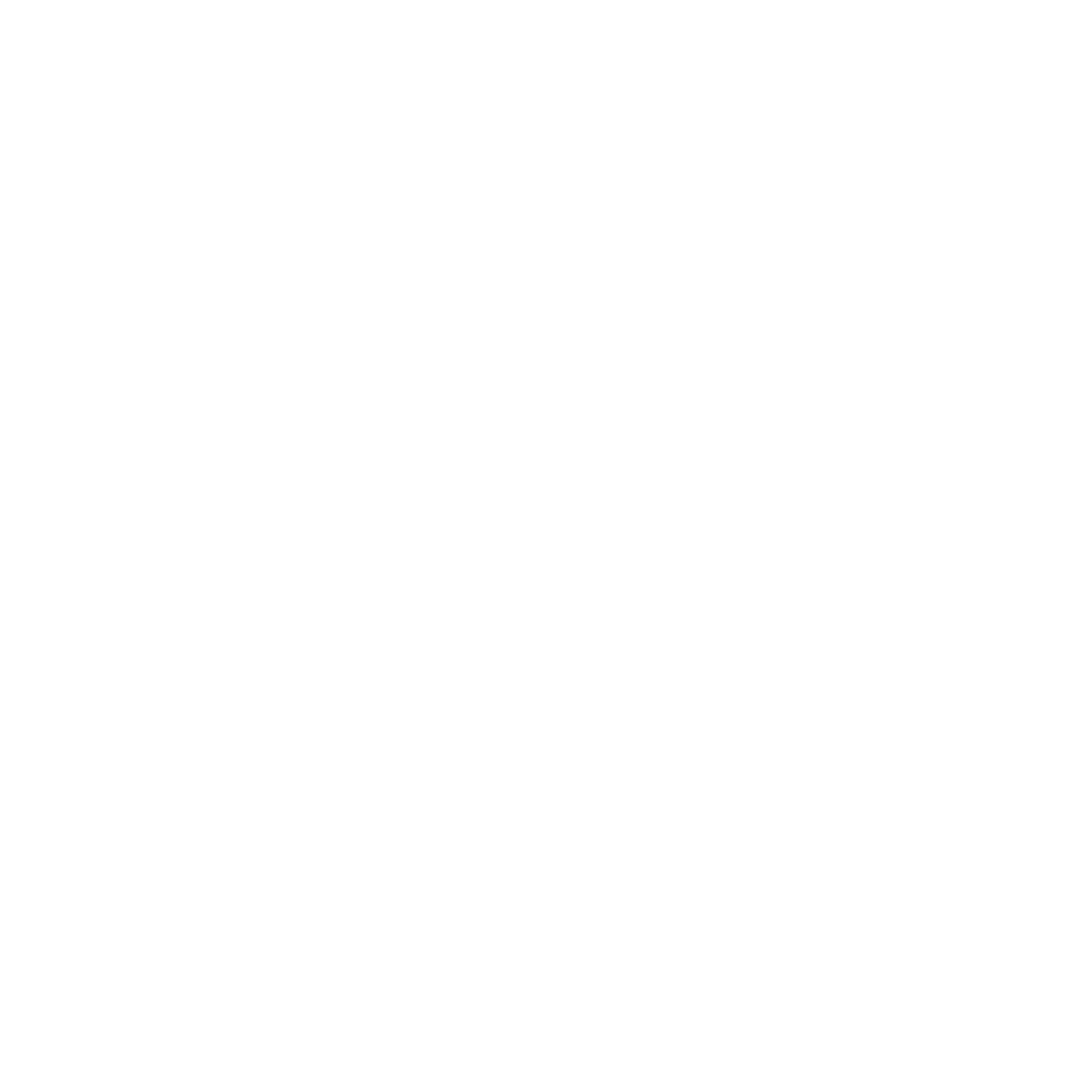

5x M4x8 BHCS
5x M4x8 BHCS
5x M4x8 BHCS
5x M4x8 BHCS
6 - 2
6 - 2
6 - 2
6 - 2
info

Repeat until you have a total of 4 wheels.
