Task 0: Initial information

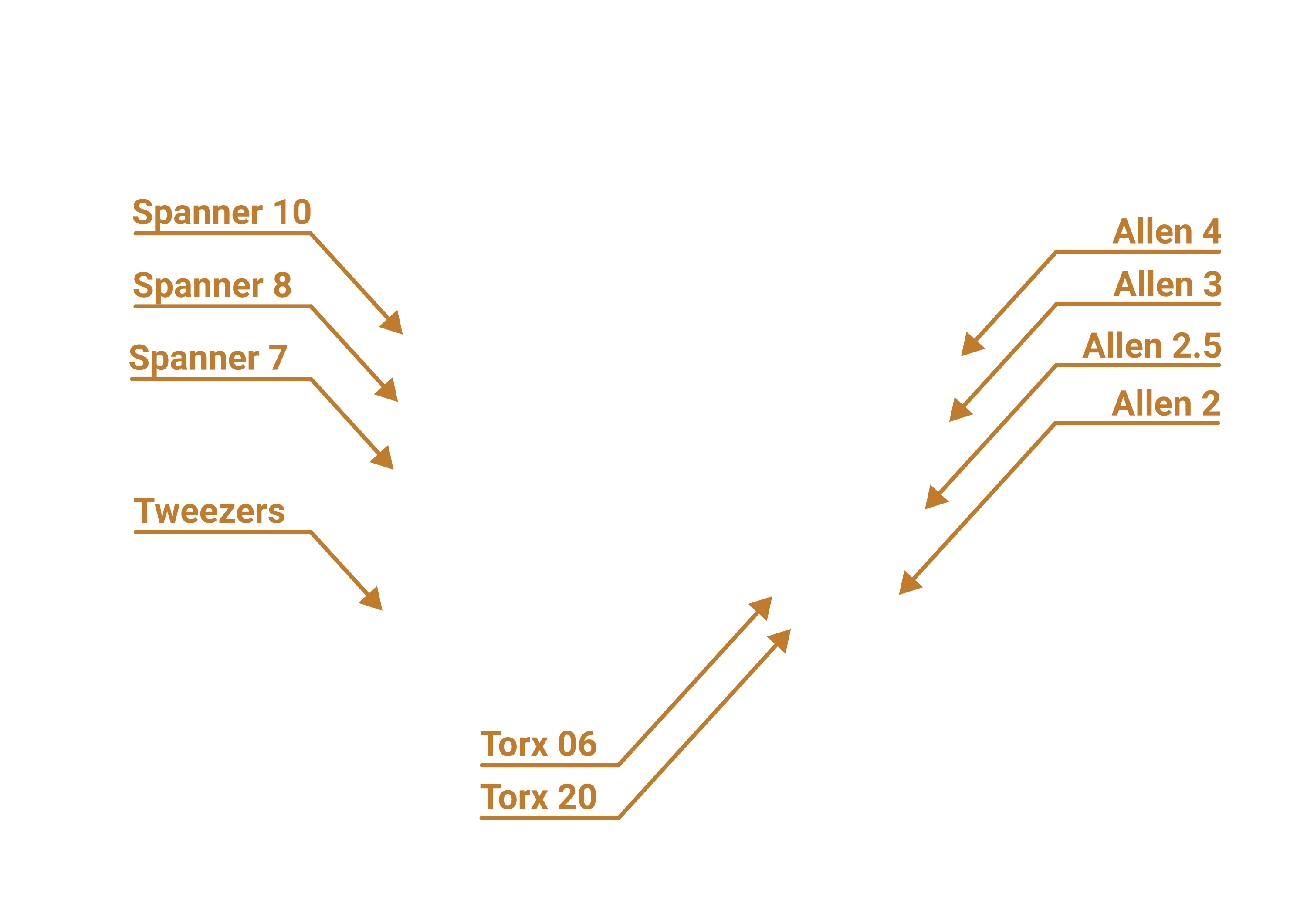

Tools provided​

Provided tools
Provided tools
grease
grease
loctite
loctite
screwdriver
screwdriver
vaseline
vaseline

Keep in mind:​

T-nuts​

T-nuts
T-nuts

When attaching T-nuts at any point during the assembly, ensure both sides are seated on the flanges of the groove.

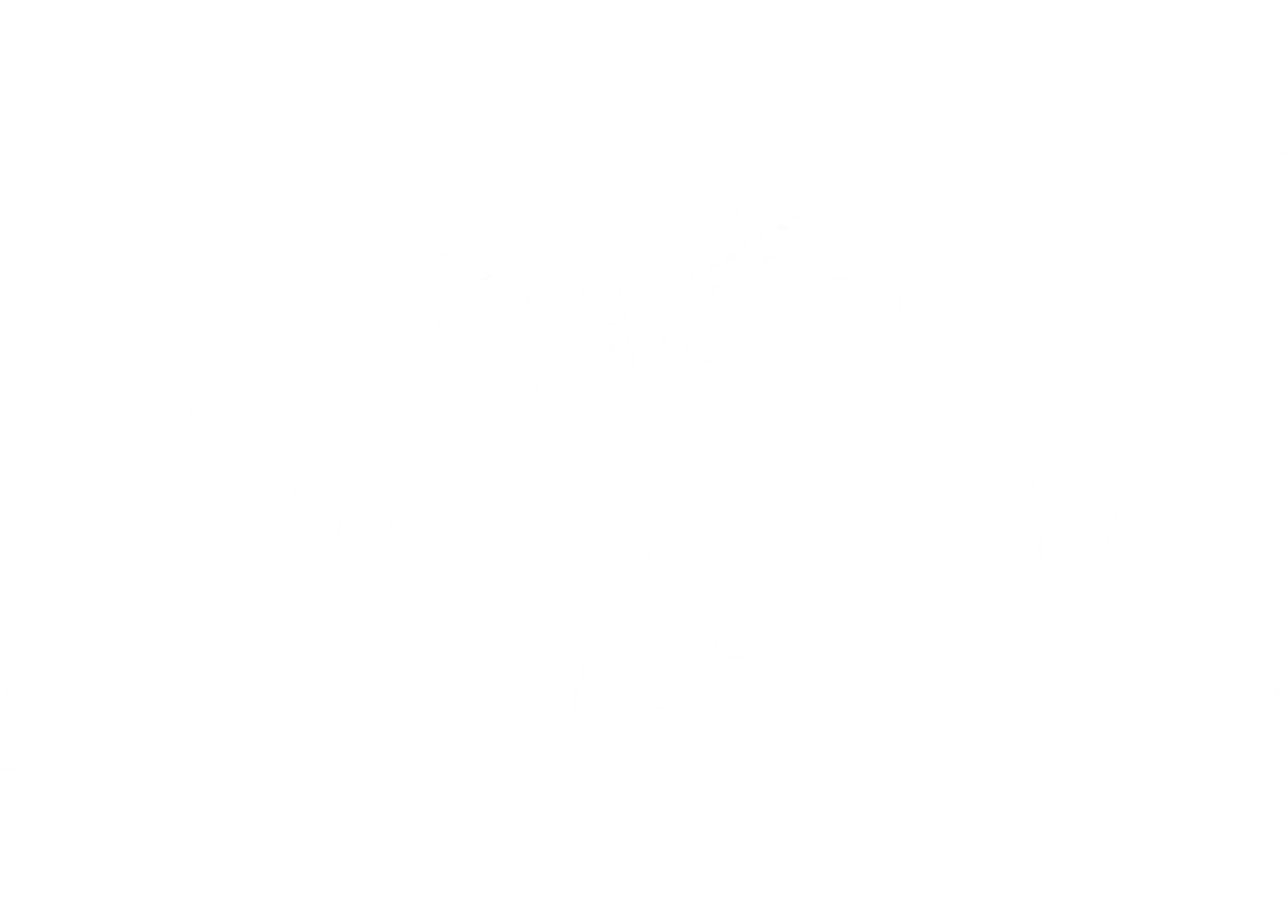

Notes​

rover
rover
note

Some concepts are difficult to convey with images alone, so additional information is provided in boxes like this one, located below the images.

Seals​

Ensure all seals are properly aligned.

Seal not OK
Seal not OK
NOT
OK
Seal OK
Seal OK
OK

Wires​

No tools are provided for tightening the panel mount sockets the sides of electronics box or battery.
Panel socket nuts should be hand-tight only, as excessive force can damage the seals.

warning

Be careful not to crush the wires during assembly.
